Instrument Panel Compartment Lamp Switch Replacement

WARNING: This page is about a different car, the 2008 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

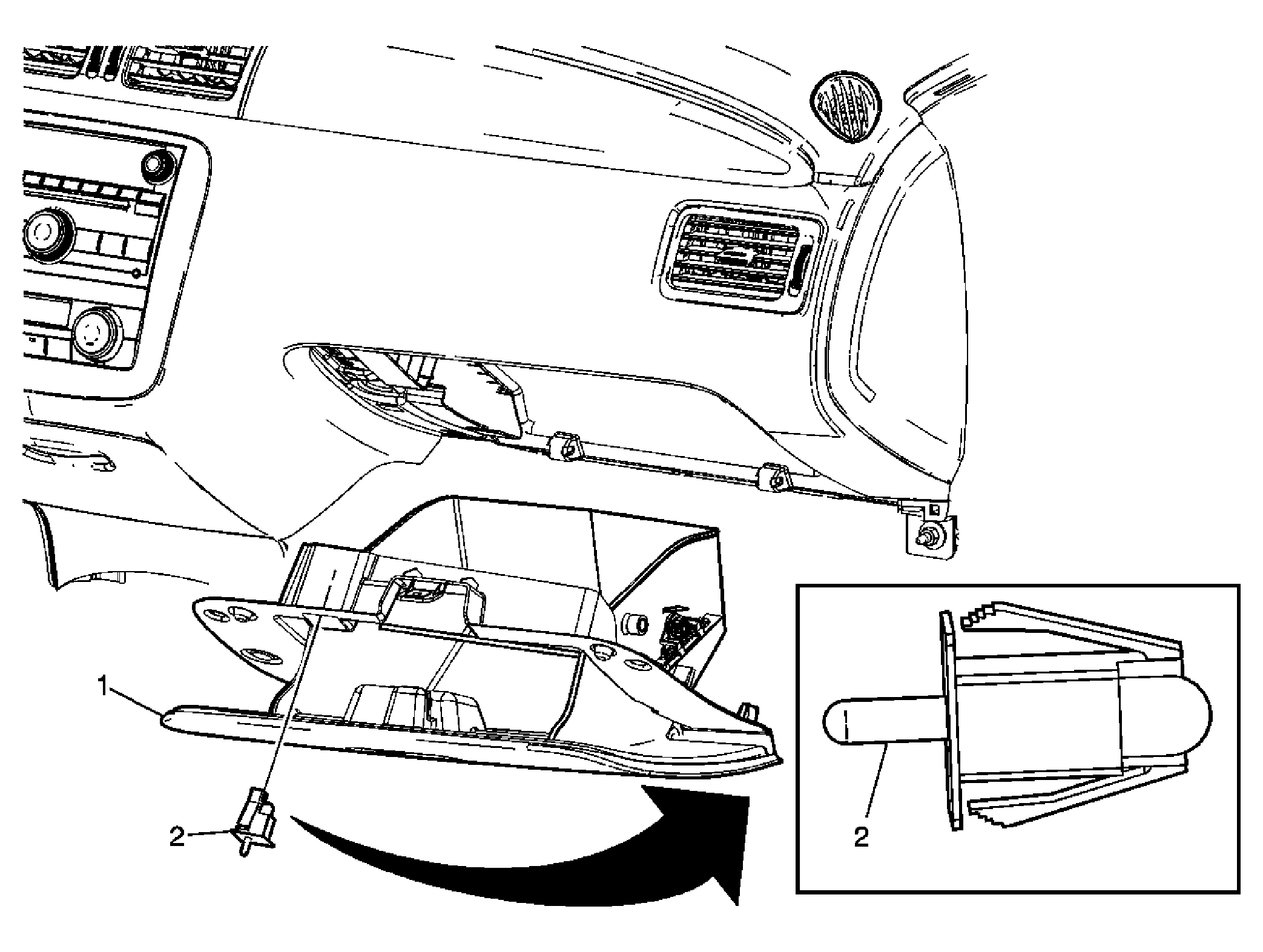

Fig 1: Identifying Instrument Panel Compartment Lamp Switch
GM1777891Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Instrument Panel Compartment Assembly.
Refer to Instrument Panel Compartment Replacement .
2 Instrument Panel Compartment Lamp Switch
Tip:  Squeeze the tabs securing the Lamp Switch to the IP Compartment Assembly and remove the switch.
