Center Console End Panel Replacement

WARNING: This page is about a different car, the 2008 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

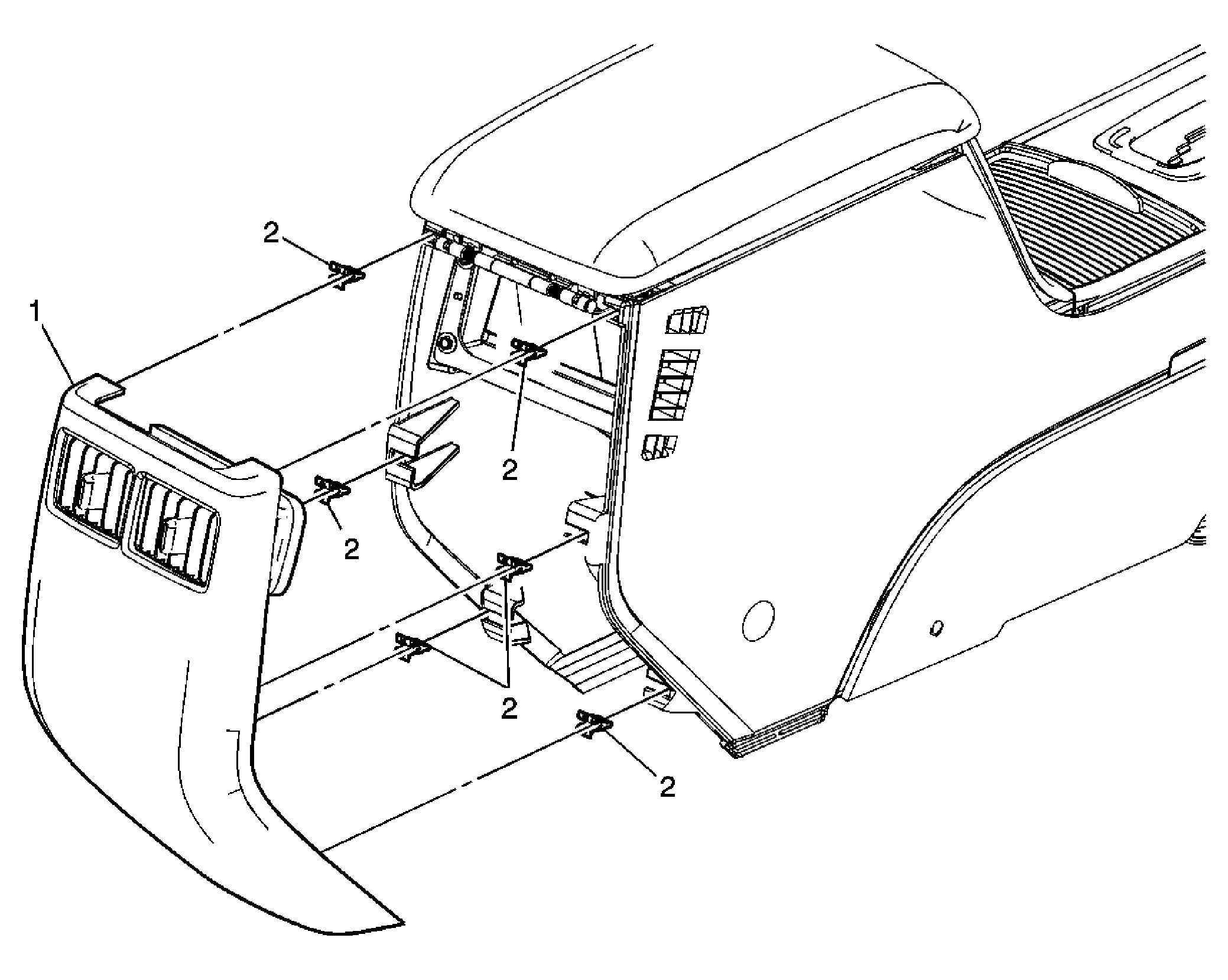

Fig 1: View Of Center Console End Panel
GM1593686Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Front Floor Console Rear Trim Panel Assembly
2 Retainer Clips (Qty: 6)
