Engine Cooling Schematics

WARNING: This page is about a different car, the 2007 Saturn Sky. However, it is still accessible from the selected car via links, so may be relevant.

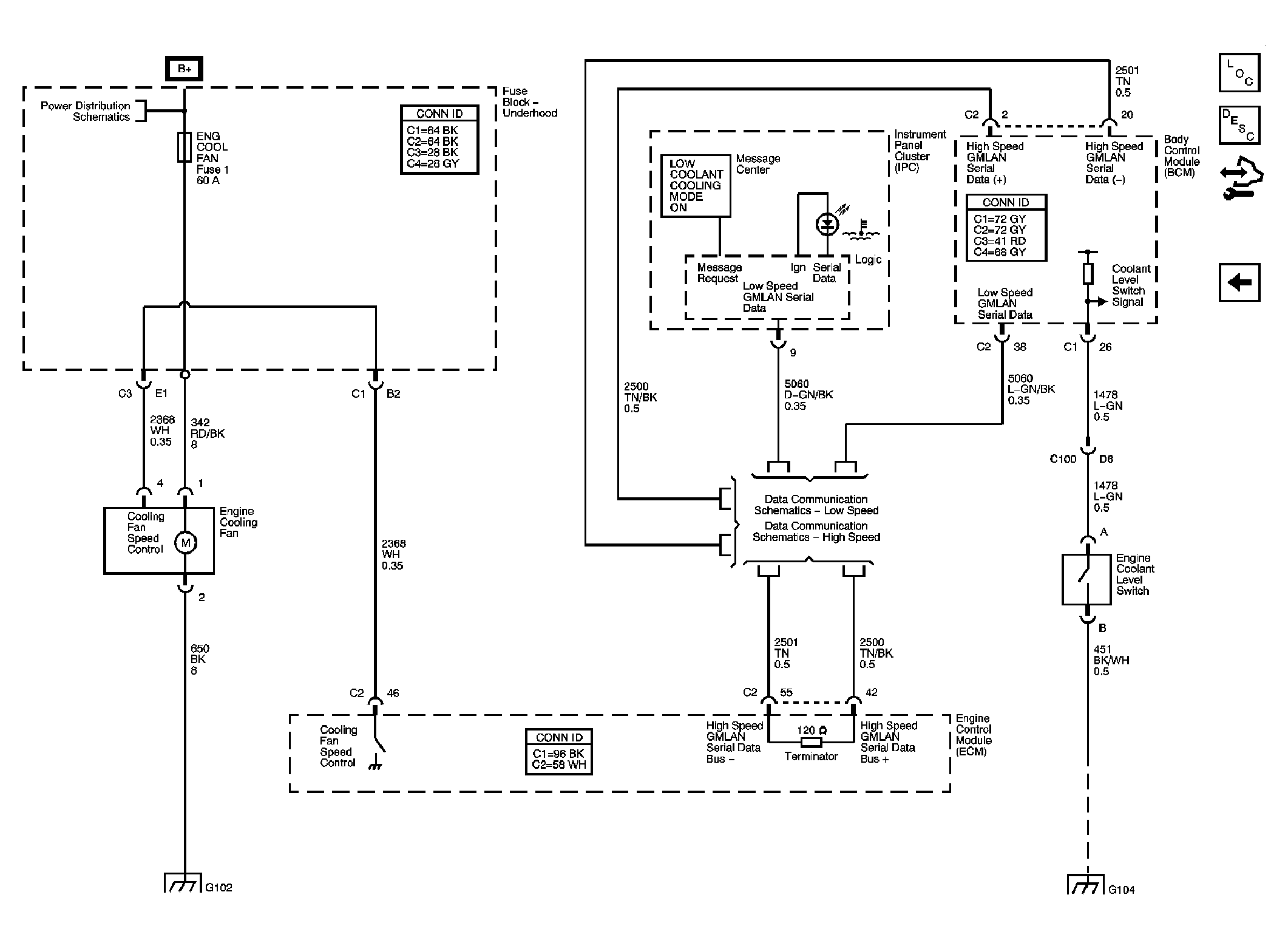

Fig 1: 2.0L (LNF)
GM1811984Courtesy of GENERAL MOTORS CORP.

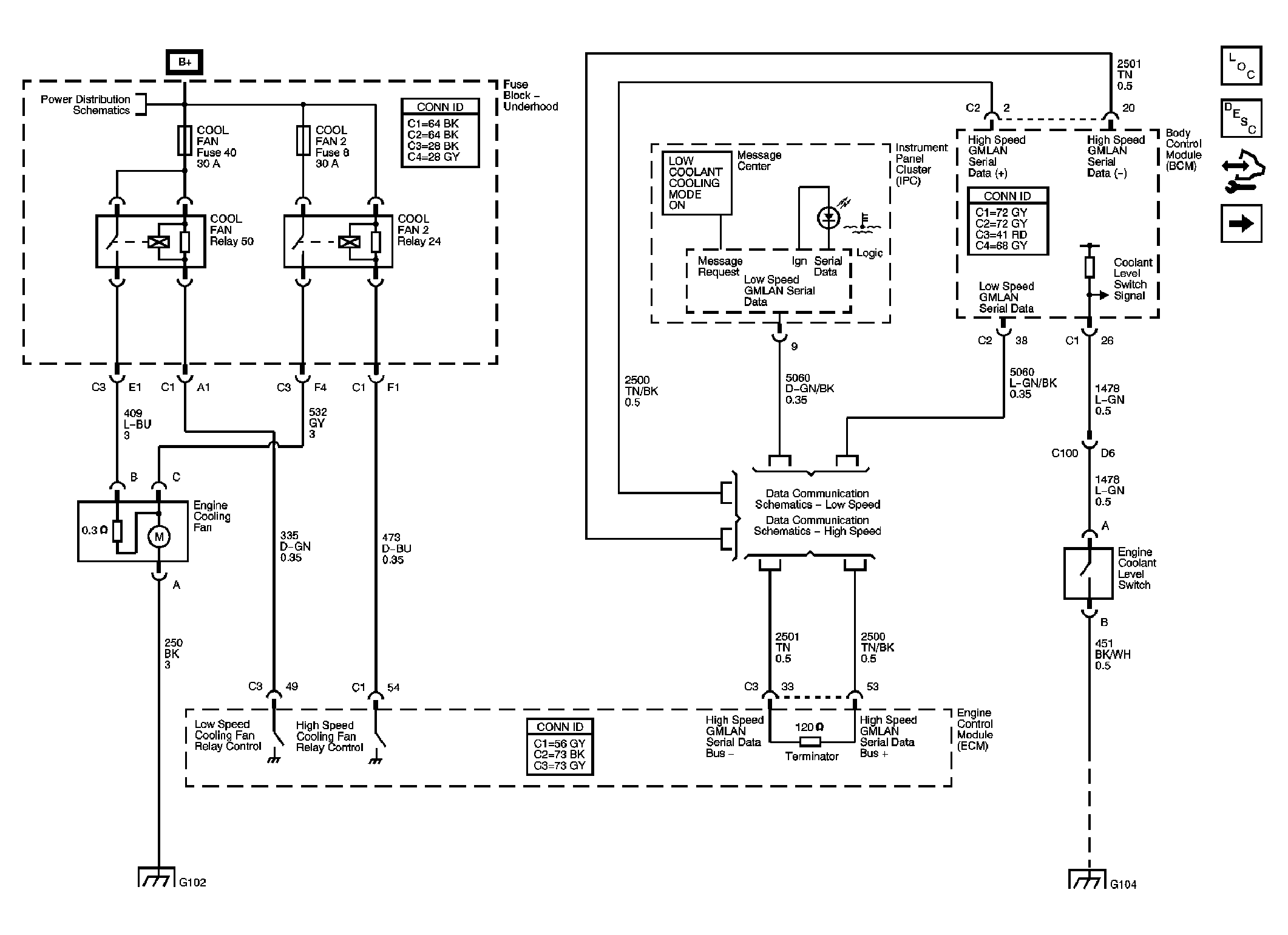

Fig 2: 2.4L (LE5)
GM1742608Courtesy of GENERAL MOTORS CORP.
