Wiper Motor Replacement

WARNING: This page is about a different car, the 2007 Saturn Sky. However, it is still accessible from the selected car via links, so may be relevant.

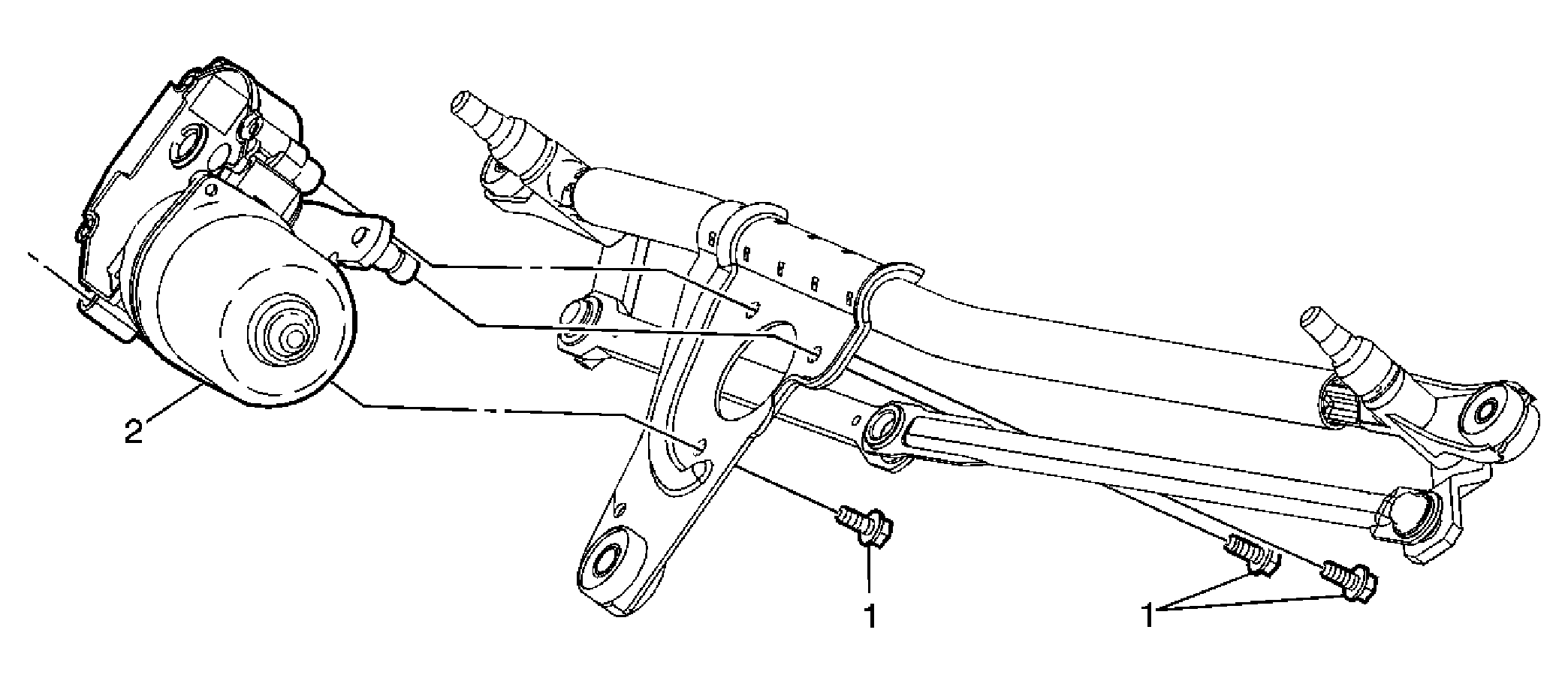

Fig 1: Wiper Motor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the wiper arms. Refer to Wiper Arm Replacement . Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement . Remove the wiper drive system module. Refer to Wiper Transmission Replacement .
1	Windshield Wiper Motor Bolt (Qty: 3) NOTE: Refer to Fastener Notice . Tighten: 4.5 N.m (40 lb in)
2	Windshield Wiper Motor Assembly Tip: Use the J 39232 Wiper Linkage Separator, or equivalent to separate the transmission arm from the wiper motor crank arm pivot. Use the J 39529 Wiper Linkage Installer, or equivalent to install the transmission arm onto the wiper motor crank arm pivot.

Callout

Component Name

Preliminary Procedures

Remove the wiper arms. Refer to Wiper Arm Replacement .
Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement .
Remove the wiper drive system module. Refer to Wiper Transmission Replacement .

Windshield Wiper Motor Bolt (Qty: 3)

NOTE: Refer to Fastener Notice .

Tighten: 4.5 N.m (40 lb in)

Windshield Wiper Motor Assembly
Tip:

Use the J 39232 Wiper Linkage Separator, or equivalent to separate the transmission arm from the wiper motor crank arm pivot.
Use the J 39529 Wiper Linkage Installer, or equivalent to install the transmission arm onto the wiper motor crank arm pivot.
