Washer Solvent Container Replacement

WARNING: This page is about a different car, the 2007 Saturn Sky. However, it is still accessible from the selected car via links, so may be relevant.

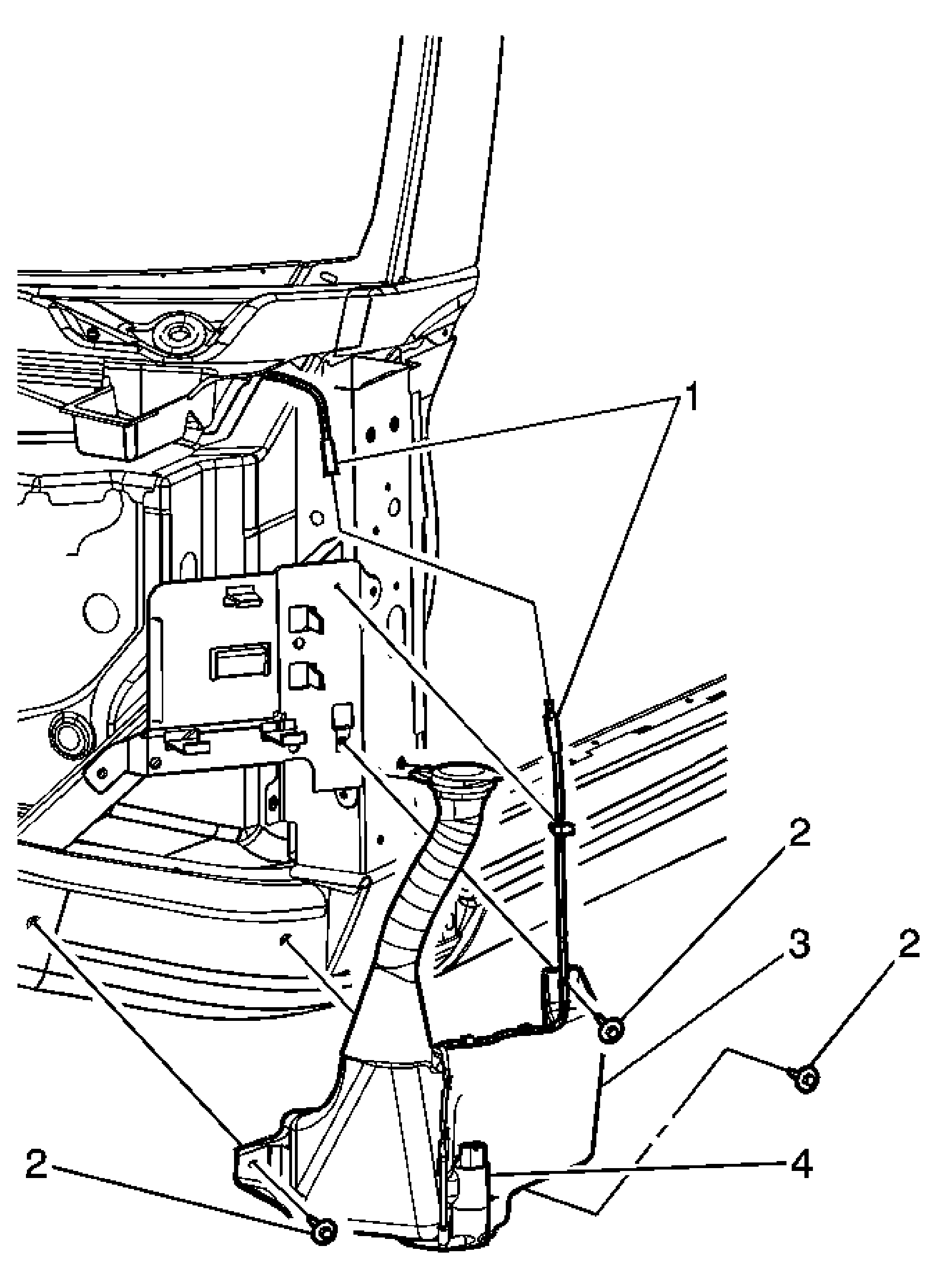

Fig 1: Washer Solvent Container

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the left front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement (Turbo) or Front Wheelhouse Liner Replacement (Base) . Drain the washer solvent into a suitable clean container.
1	Windshield Washer Pump Hose Assembly Tip: Disconnect the hose at the hinge pillar and air inlet panel. Disengage the integral washer hose clip from the electronic control module (ECM) bracket.
2	Windshield Washer Solvent Container Screws (Qty: 3) NOTE: Refer to Fastener Notice . Tighten: 10 N.m (89 lb in)
3	Windshield Washer Container Assembly Tip: Lower the windshield washer container from behind the left front fender area.
4	Windshield Washer Container Pump Kit Tip: Disconnect the washer hose at the pump and use two flat-bladed tools and pry the washer pump from the container.
