Front Side Door Locking Rod Replacement

WARNING: This page is about a different car, the 2007 Saturn Sky. However, it is still accessible from the selected car via links, so may be relevant.

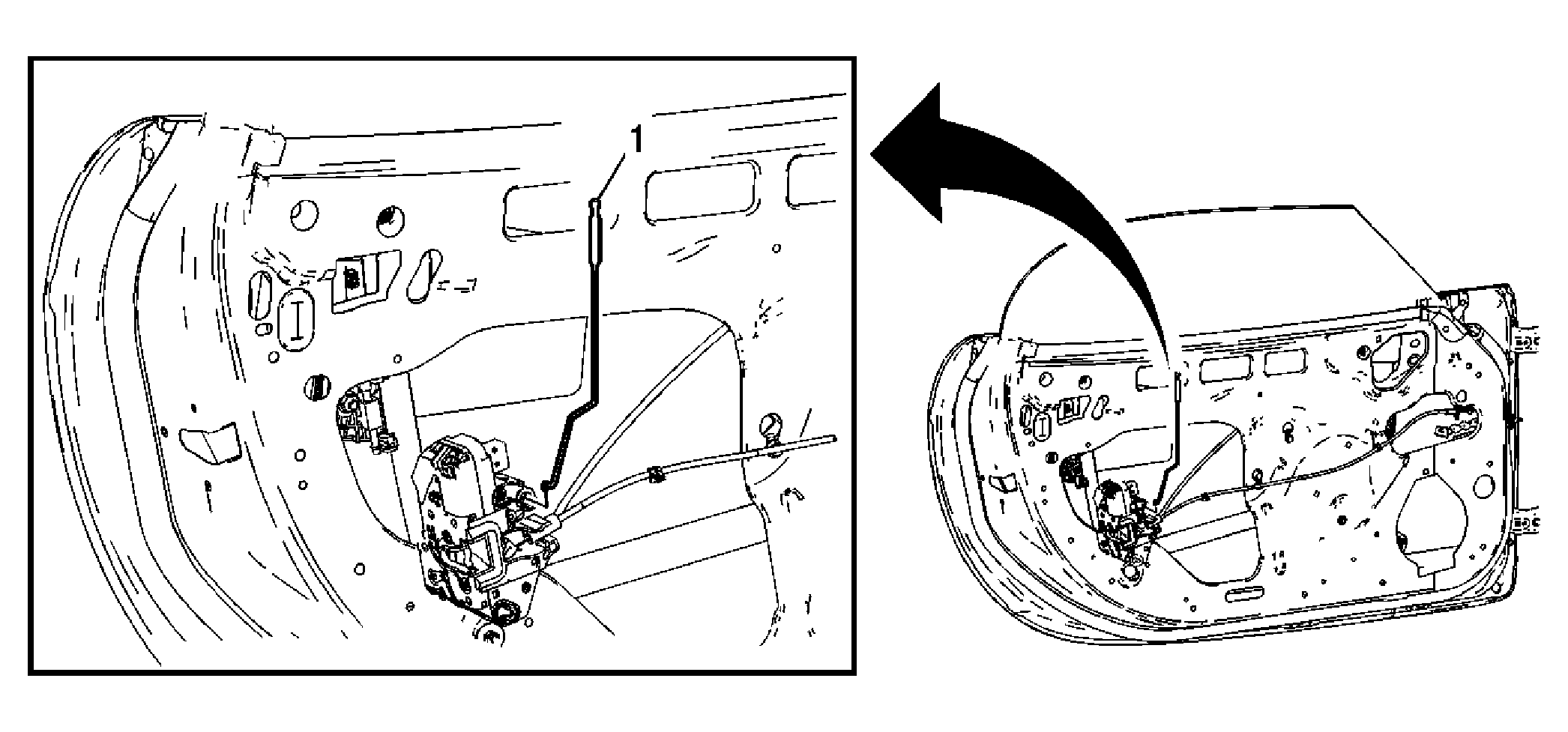

Fig 1: Front Door Locking Rod

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the interior trim panel. Refer to Door Trim Panel Replacement . Remove the water deflector. Refer to Door Water Deflector Replacement . Remove the door lock. Refer to Front Side Door Lock Replacement .
1	Rod, Door Lock

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Remove the interior trim panel. Refer to Door Trim Panel Replacement .
Remove the water deflector. Refer to Door Water Deflector Replacement .
Remove the door lock. Refer to Front Side Door Lock Replacement .

Rod, Door Lock
