Front Fog Lamp Replacement

WARNING: This page is about a different car, the 2007 Saturn Sky. However, it is still accessible from the selected car via links, so may be relevant.

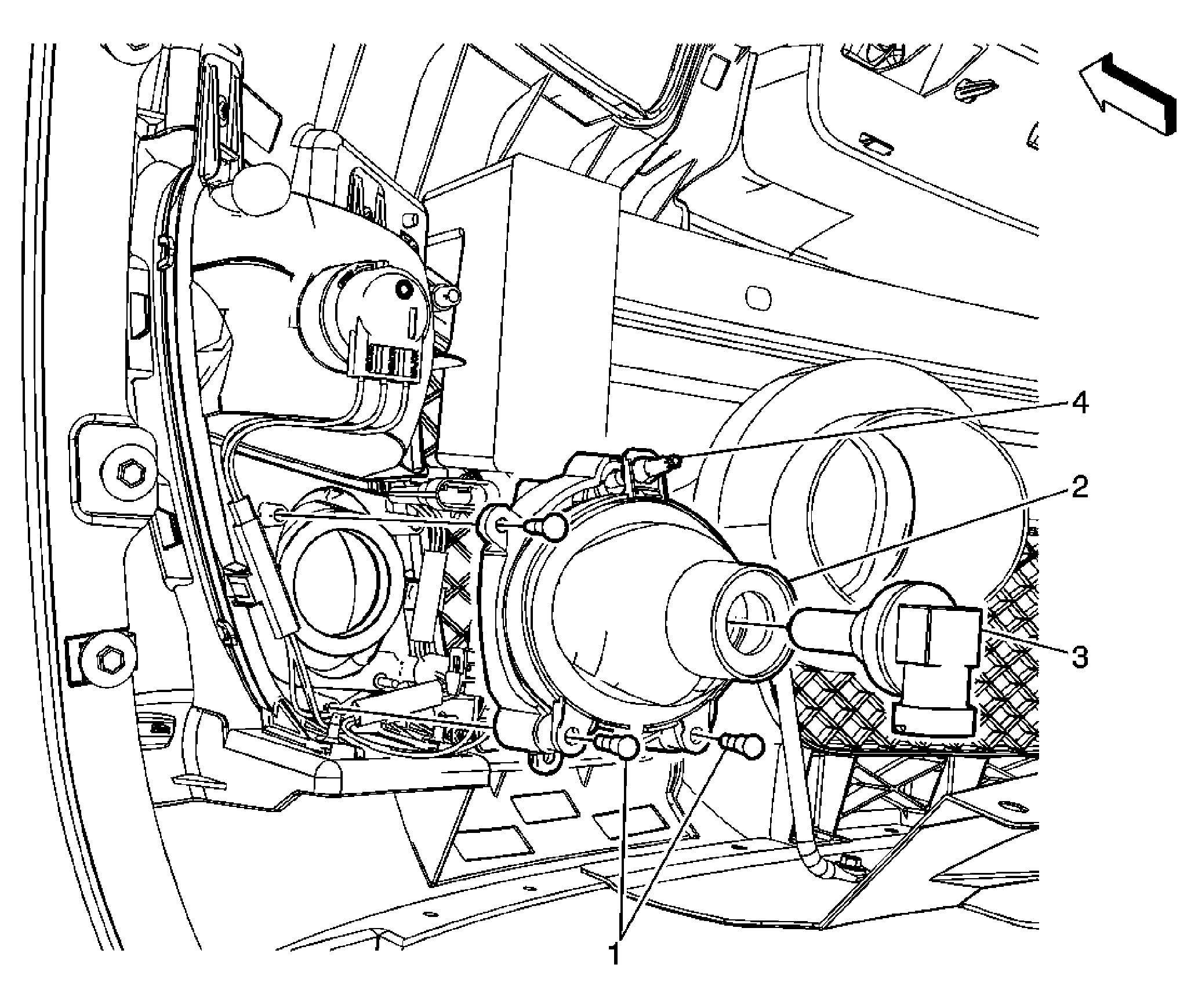

Fig 1: Front Fog Lamp

GM1846050

Courtesy of GENERAL MOTORS CORP.

Front Fog Lamp Replacement

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the 3 wheelhouse liner screws, then remove the 3 push pins and pull rearward on the front liner. Disconnect the fog lamp bulb socket electrical connector.
1	Front Fog Lamp Assembly Screws (Qty: 3) NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
2	Front Fog Lamp Assembly Tip: Remove the lamp assembly from the fog lamp bracket.
3	Front Fog Lamp Bulb CAUTION: Refer to Halogen Bulb Caution . Tip: Turn the bulb socket counterclockwise and remove from the fog lamp assembly.
4	Adjuster Screw Procedure: Remove the screw in order to separate the fog lamp from the fog lamp ring.
