Backup Lamp Replacement

WARNING: This page is about a different car, the 2007 Saturn Sky. However, it is still accessible from the selected car via links, so may be relevant.

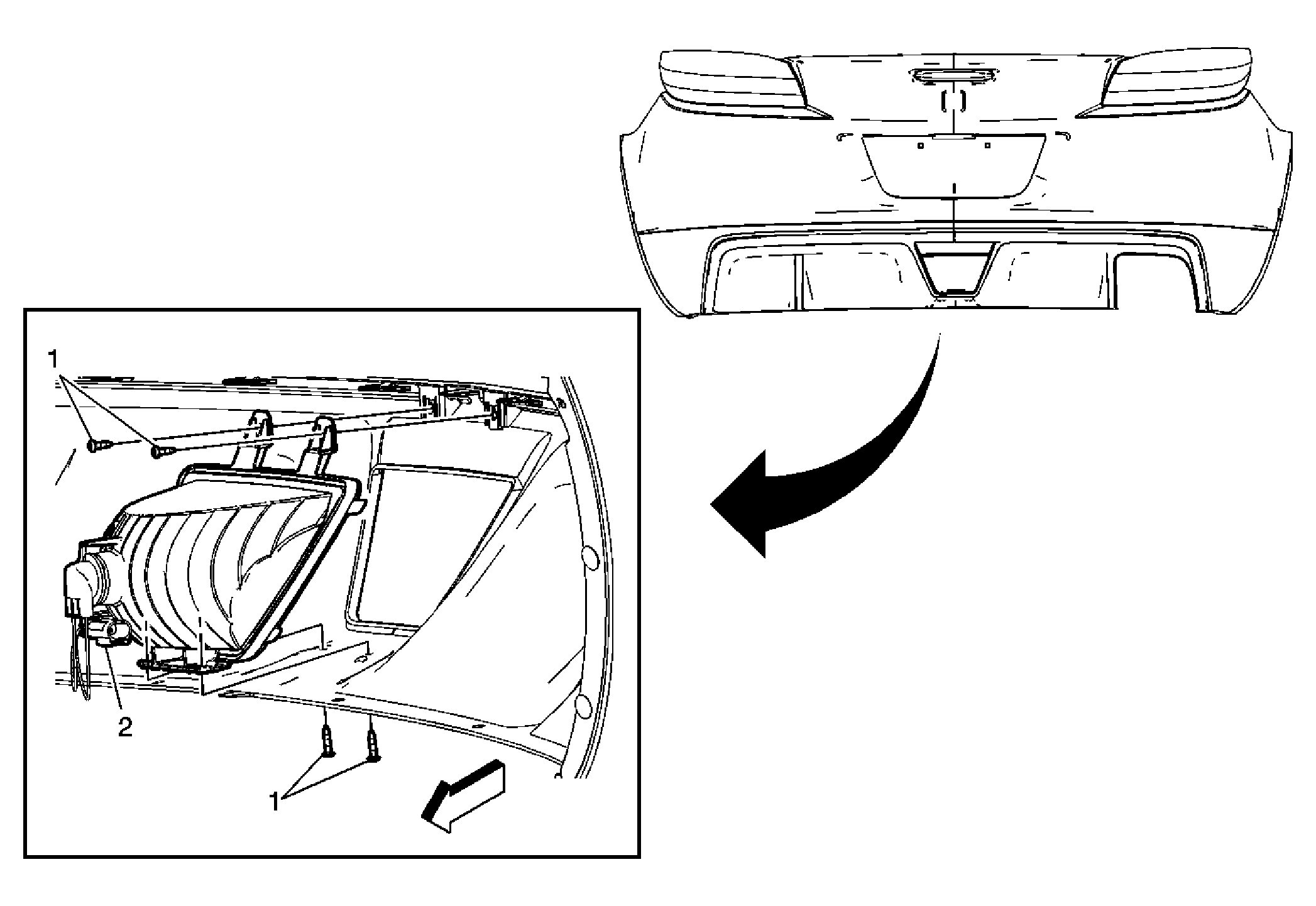

Fig 1: Backup Lamp

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement . Remove the two lower back up lamp screws from the rear bumper valance center panel.
1	Back Up Lamp Assembly Screws (Qty: 4) Tighten: 2 N.m (18 lb in)
2	Back Up Lamp Assembly Tip: Replace the lamp bulb, if needed.

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement .
Remove the two lower back up lamp screws from the rear bumper valance center panel.

Back Up Lamp Assembly Screws (Qty: 4)

Tighten: 2 N.m (18 lb in)

Back Up Lamp Assembly
Tip: Replace the lamp bulb, if needed.
