Mode Actuator Replacement

WARNING: This page is about a different car, the 2007 Saturn Sky. However, it is still accessible from the selected car via links, so may be relevant.

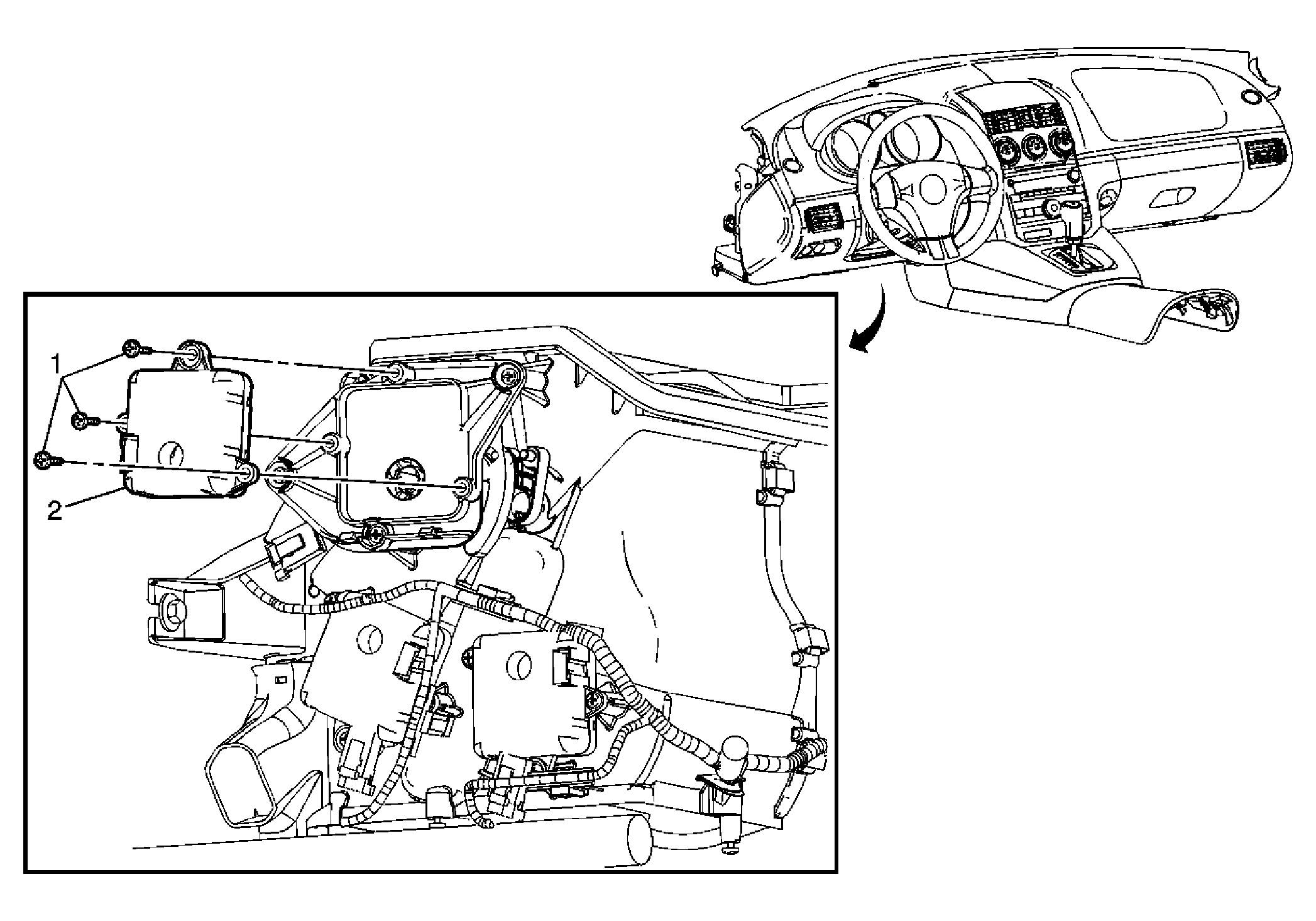

Fig 1: Mode Actuator

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the fuse labeled HVAC CTRL (BATT). Remove the instrument panel (I/P) tie bar. Refer to Instrument Panel Tie Bar Replacement . Disconnect the electrical connector.
1	Mode Actuator Screw (Qty: 3) NOTE: Refer to Fastener Notice . Tighten: 1.5 N.m (13 lb in)
2	Mode Actuator IMPORTANT: Do not adjust any controls on the HVAC control assembly while the HVAC control assembly and actuators are calibrating. If interrupted improper HVAC performance will result. Tip: Start the engine and let run for one minute to calibrate actuator.

Callout

Component Name

Preliminary Procedures

Remove the fuse labeled HVAC CTRL (BATT).
Remove the instrument panel (I/P) tie bar. Refer to Instrument Panel Tie Bar Replacement .
Disconnect the electrical connector.

Mode Actuator Screw (Qty: 3)

NOTE: Refer to Fastener Notice .

Tighten: 1.5 N.m (13 lb in)

Mode Actuator

IMPORTANT: Do not adjust any controls on the HVAC control assembly while the HVAC control assembly and actuators are calibrating. If interrupted improper HVAC performance will result.

Tip: Start the engine and let run for one minute to calibrate actuator.
