Power and Grounding Component Views

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

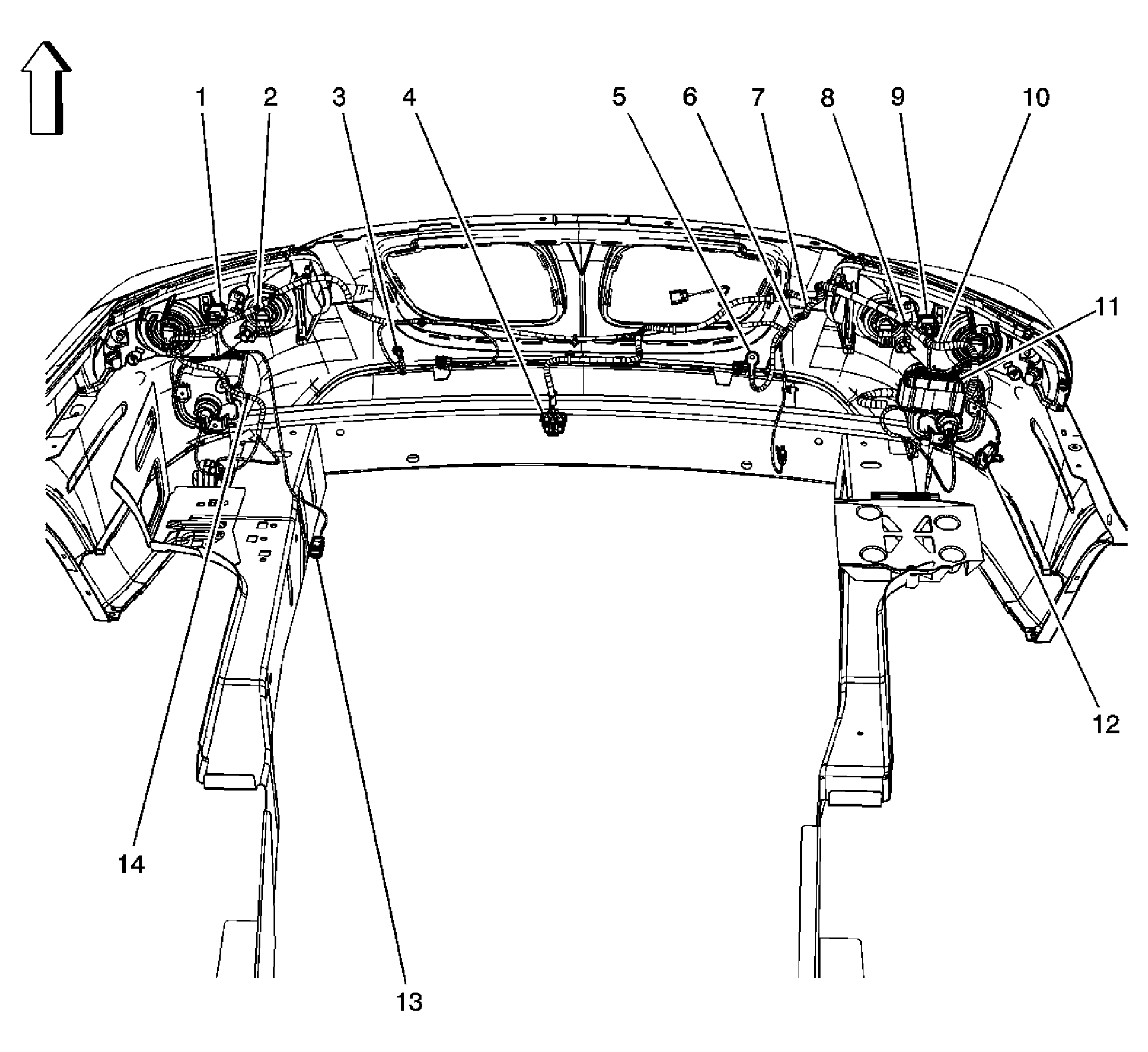

Fig 1: Identifying Forward Lamp Harness Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C103 Forward Lamp Harness to LH Headlamp
2	S101
3	G101
4	C110 Forward Lamp Harness to Cooling Fan Jumper Harness
5	G100
6	S102
7	S104
8	S100
9	C104 Forward Lamp Harness to RH Headlamp
10	S106
11	Fuse Block - Underhood C3
12	C120 I/P Harness to Forward Lamp Harness
13	C126 I/P Harness to Forward Lamp Harness
14	S103 (Late Production)

Fig 2: View Of Right Side of Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Battery
2	C108 I/P Harness to Battery Cable Harness
3	Rear Window Washer Fluid Pump Relay
4	I/P Harness

Fig 3: View Of Engine Compartment Components - I/P Harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuse Block - Underhood
2	Windshield Wiper Motor
3	Brake Fluid Level Switch
4	Windshield Washer Fluid Pump
5	Rear Window Washer Fluid Pump

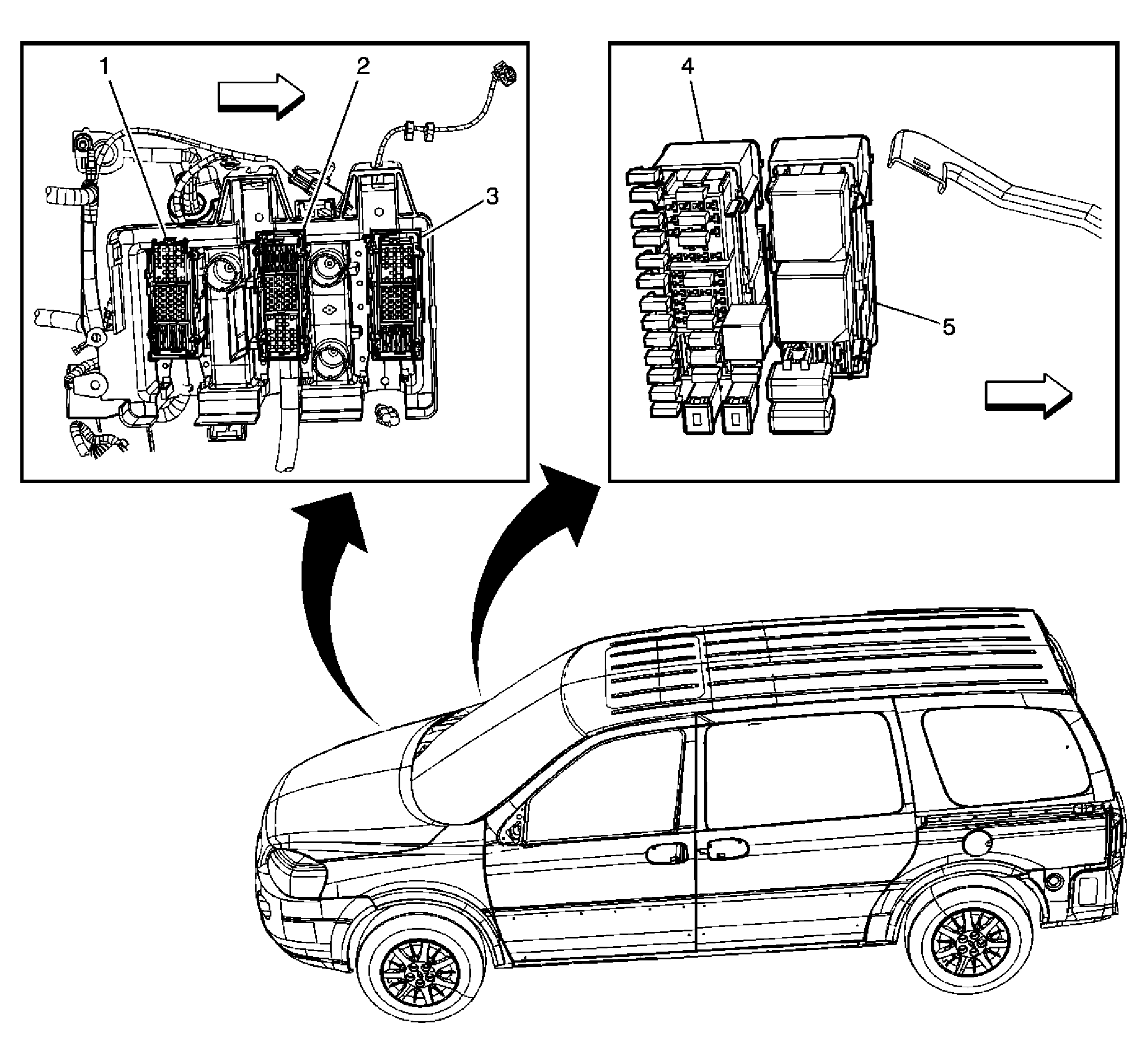

Fig 4: Identifying Fuse Block Connectors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuse Block-Underhood C3
2	Fuse Block-Underhood C1
3	Fuse Block-Underhood C2
4	Fuse Block-I/P C1
5	Fuse Block-I/P C2

Fig 5: View Of Engine Electrical Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuse Block - Underhood (Battery Stud)
2	G102
3	Battery Current Sensor
4	Generator
5	Automatic Transmission
6	G113
7	G115 (Battery Cable)
8	G115
9	Starter Motor
10	Battery

Fig 6: Identifying Left Side of I/P Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Body Control Module (BCM)
2	G201
3	Brake Pedal Position Sensor
4	Accelerator Pedal Position (APP) Sensor
5	Data Link Connector (DLC)
6	Body Harness
7	Park Brake Switch
8	BCM - C2
9	BCM - C1
10	BCM - C3 (Steering Column Harness)

Fig 7: Identifying Steering Column Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/Multifunction Switch C3
2	C279 Inflatable Restraint Steering Wheel Module Coil to Steering Wheel Harness
3	Inflatable Restraint Steering Wheel Module Coil C1 Connector
4	Inflatable Restraint Steering Wheel Module Coil C2 Connector
5	Turn Signal/Multifunction Switch C2
6	Turn Signal/Multifunction Switch C1
7	Rear Wiper/Washer Switch
8	Turn Signal/Multifunction Switch
9	Turn Signal/Multifunction Switch C4
10	S277 and S279
11	C277 Inflatable Restraint Steering Wheel Module Coil to Steering Column Harness
12	C275 Inflatable Restraint Steering Wheel Module Coil to Body Harness
13	C201 Steering Column Harness to I/P Harness
14	Steering Wheel Speed Position Sensor (JL4)
15	Theft Deterrent Exciter Module Connector (Pigtail)
16	Inflatable Restraint Steering Wheel Module Coil
17	Theft Deterrent Exciter Module
18	Ignition Switch
19	A/T Shift Lock Control Solenoid Connector

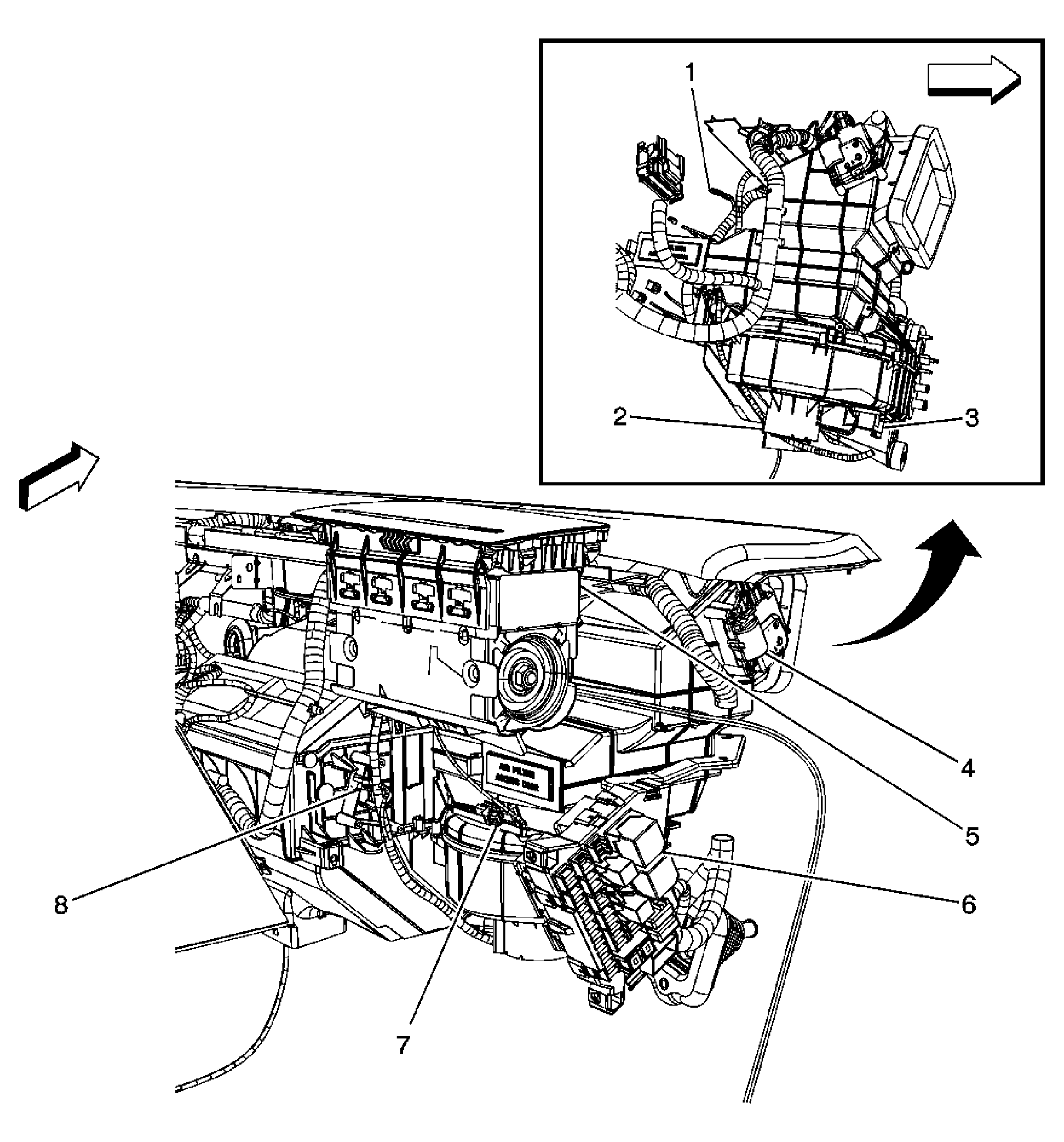

Fig 8: Identifying Right Side of I/P Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G200
2	Blower Motor
3	Blower Motor Resistor Assembly
4	Recirculation Actuator
5	Inflatable Restraint I/P Module
6	Fuse Block - I/P
7	Evaporative Temperature Sensor
8	C205 I/P Harness to HVAC Jumper Harness (CJ3) (Air Temperature Actuator - Right)

Fig 9: Identifying Left B Pillar Area Components - Body Harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G301
2	Sliding Door Open/Close Switch - Left (E59) Connector
3	Inflatable Restraint Side Impact Module - Left (AJ7)
4	Inflatable Restraint Side Impact Sensing Module (SISM) - Left (AJ7)
5	Body Harness
6	C315 Left Side Impact Module Jumper Harness (AJ7) to Body Harness (AJ7)
7	C305 Fuel Tank Harness and Rear Cross-Car Jumper Harness to Body Harness
8	Seatbelt Pretensioner - LF
9	Door Contact Plate - Left C1

Fig 10: Identifying Right B Pillar Area Components - Body Harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Side Impact Sensing Module (SISM) - Right (AJ7)
2	G302
3	Door Contact Plate - Right C1
4	Seatbelt Pretensioner - RF
5	Inflatable Restraint Sensing and Diagnostic Module (SDM)
6	Body Harness
7	C316 Inflatable Restraint Side Impact Module - Right Jumper Harness (AJ7) to the Body Harness (AJ7)
8	Inflatable Restraint Passenger Seat Belt Tension Retractor Sensor
9	Inflatable Restraint Side Impact Module - Right (AJ7)

Fig 11: Identifying Left Rear Cargo - Body Harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Blower Motor - Auxiliary (C69)
2	Blower Motor Control Module - Auxiliary (C69)
3	Speaker - Rear Tweeter - Left
4	Mode Actuator - Auxiliary (C69)
5	Sliding Door Jamb Switch - Left (E59)
6	Air Temperature Actuator - Auxiliary (C69)
7	Auxiliary Power Outlet - Rear
8	G401
9	Rear Quarter Window Actuator - Left (A20)

Fig 12: Identifying Right Rear Cargo Components - Body Harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - Rear Tweeter - Right
2	Accessory AC/DC Power Control Module (KC7)
3	C420 Rear Parking Assist Display Jumper Harness to Body Harness (UD7)
4	Rear Quarter Window Actuator - Right (A20)
5	C402 and C400 Liftgate Harness to Body Harness
6	Rear Parking Assist (RPA) Display (UD7)
7	G400
8	Auxiliary Power Outlet - 115VAC (KC7)
9	Sliding Door Jamb Switch - Right
10	Rear Object Sensor Control Module (UD7)
11	Rear Parking Assist (RPA) Diagnostic Connector (UD7)
