Section 249 (Wiring Systems - Component Views)
>>
Master Electrical Component List
>>
Electrical Center Identification Views
>>
Fuse Block - I/P Top View
Fuse Block - I/P Top View
WARNING:
This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

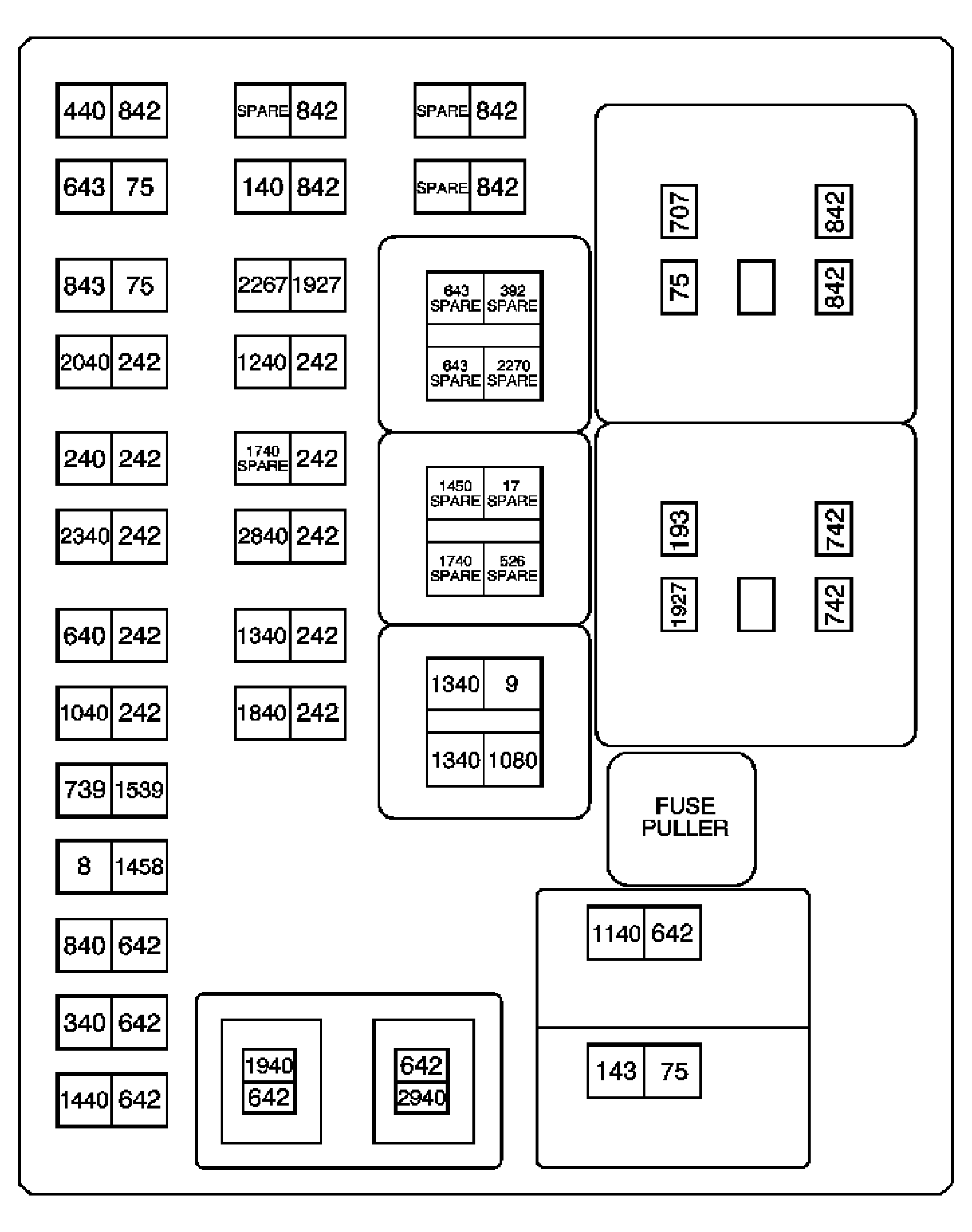

Fig 1: Fuse Block - I/P Top View
Courtesy of GENERAL MOTORS CORP.
