Front Floor Console Compartment Replacement
WARNING: This page is about a different car, the 2012 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
Front Floor Console Compartment Replacement

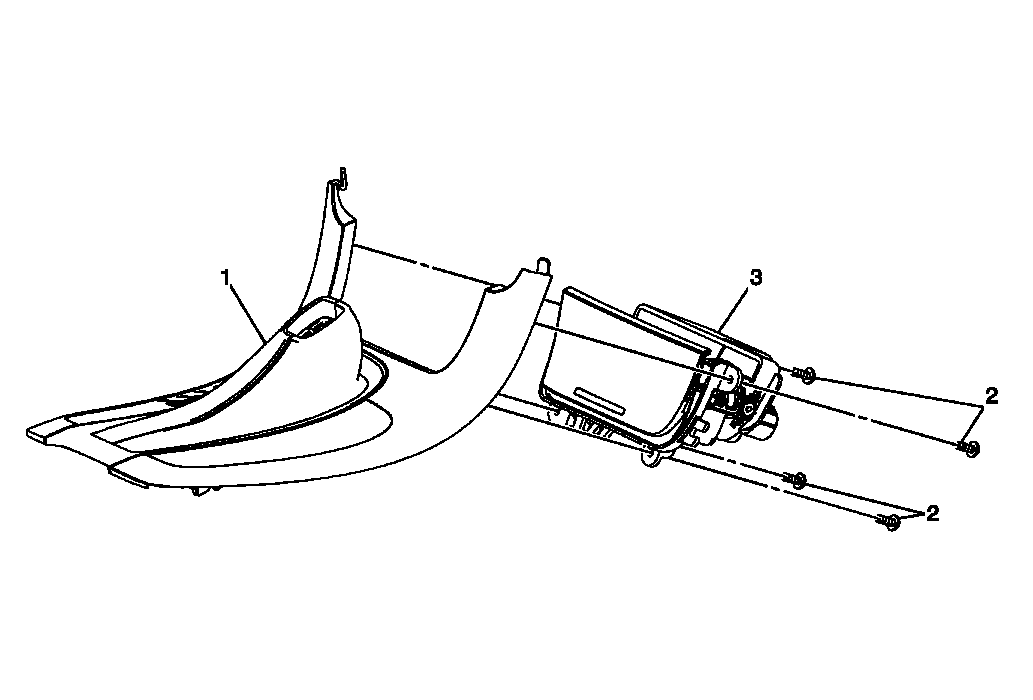

| Callout | Component Name |
|---|---|
| 1 | Front Floor Console Accessory Trim Plate Refer to Front Floor Console Accessory Trim Plate Replacement . |
| 2 | Front Floor Console Compartment Screw (Qty: 4)
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 3 | Front Floor Console Compartment Assembly |
