Linear EGR Valve

The linear EGR valve consists of the following:

• The EGR valve position sensor
• The EGR valve position sensor cap
• The bobbin and coil assembly
• The valve pintle
• The primary pole piece
• The armature sleeve
• The armature and base assembly
• The exhaust gas inlet port
• The exhaust gas outlet port

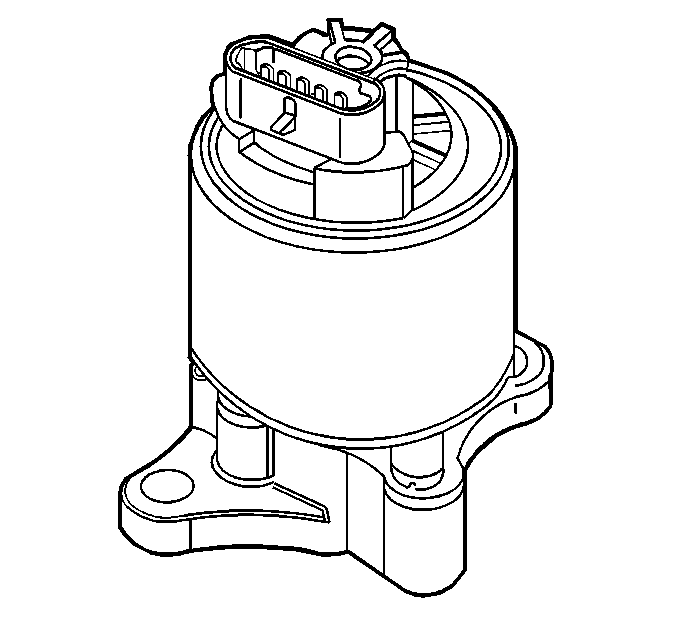

Fig 1: Linear EGR Valve
Courtesy of GENERAL MOTORS CORP.
