Power and Grounding Component Views

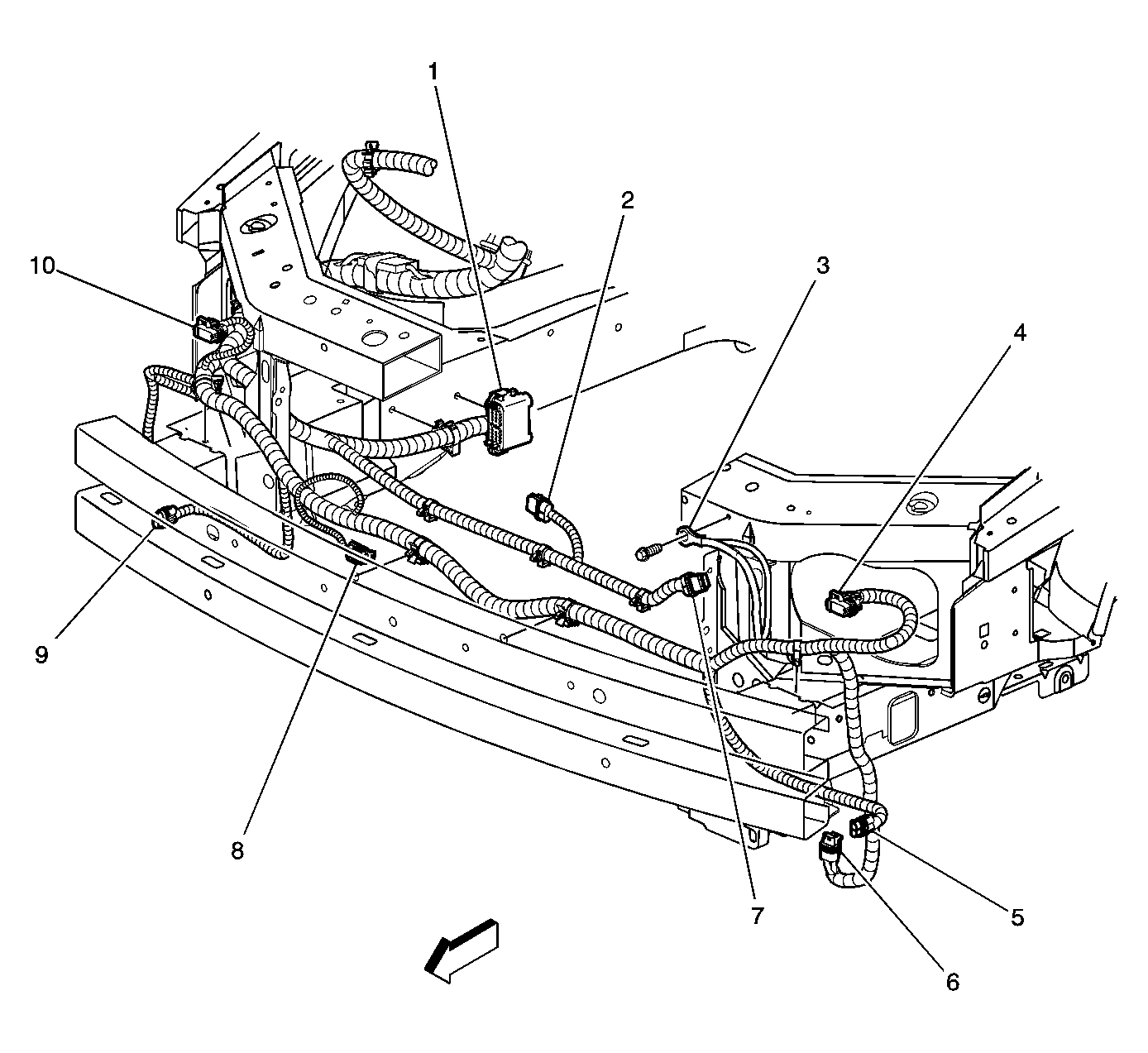

Fig 1: Forward Lamp Harness Component View
GM885131Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C106
2 Cooling Fan-Right Connector
3 G101
4 Headlamp Assembly-Left Connector
5 Ambient Air Temperature Sensor Connector (w/U68)
6 Fog Lamp-LF Connector
7 Cooling Fan-Left Connector
8 Horn Assembly Connector
9 Fog Lamp-RF Connector
10 Headlamp Assembly-Right Connector

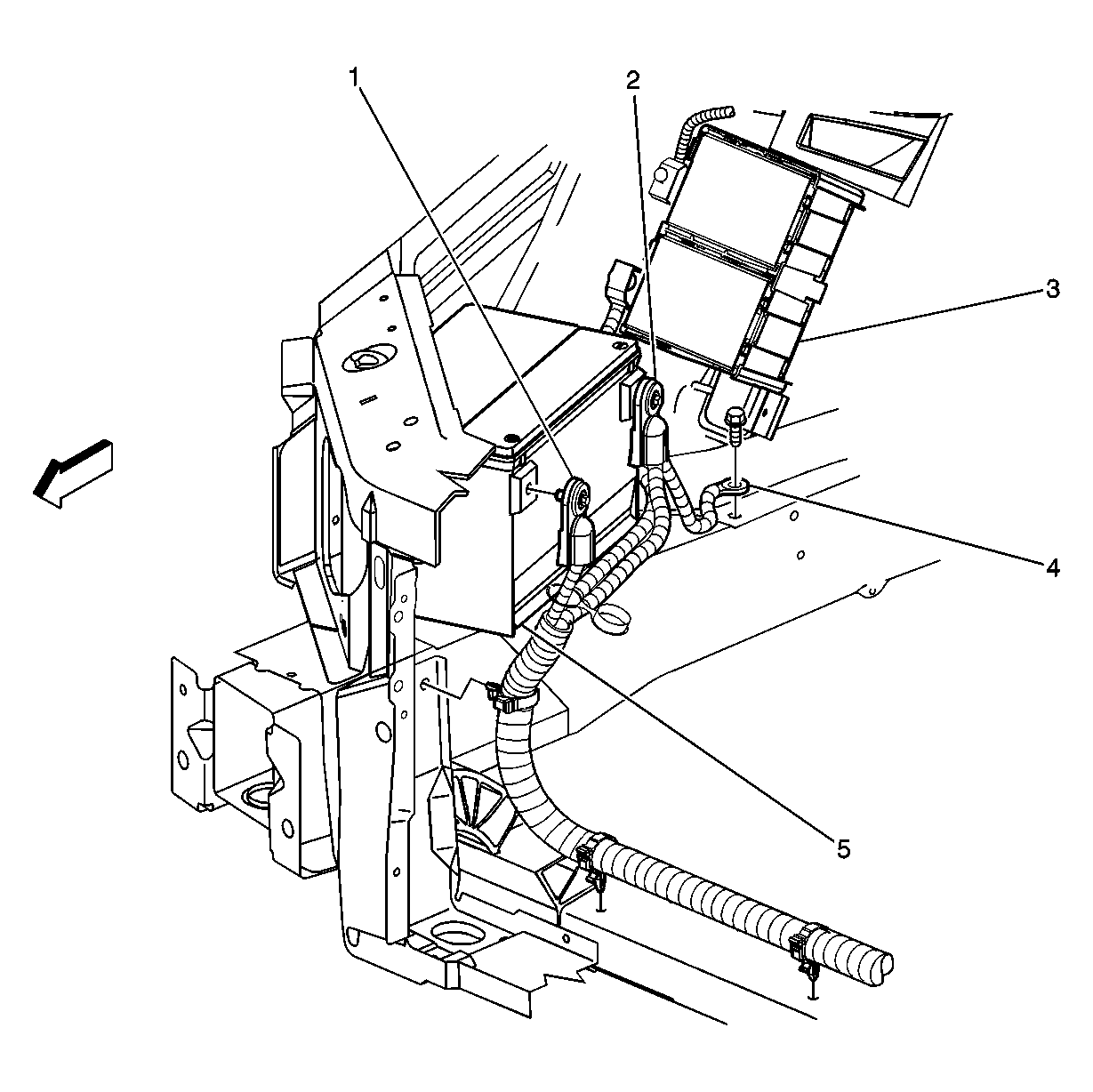

Fig 2: Right Front Of Engine Compartment Component View
GM742092Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Positive Battery Cable
2 Negative Battery Cable
3 Junction Block-Underhood (Top and Bottom)
4 G100
5 Battery

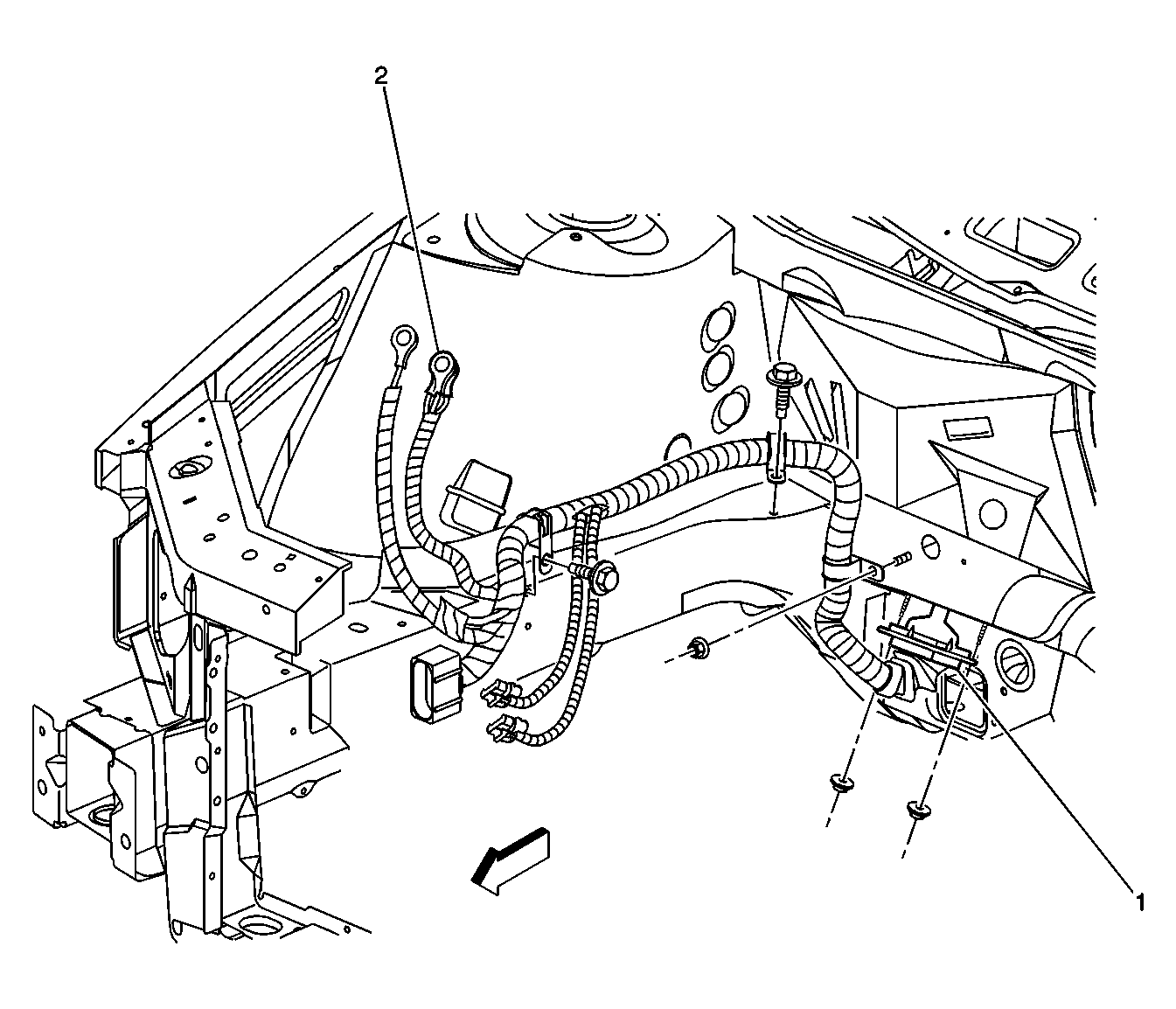

Fig 3: Right Side Of Engine Compartment Component View
GM514086Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 P100
2 Fusible Links (Underhood Junction Block)

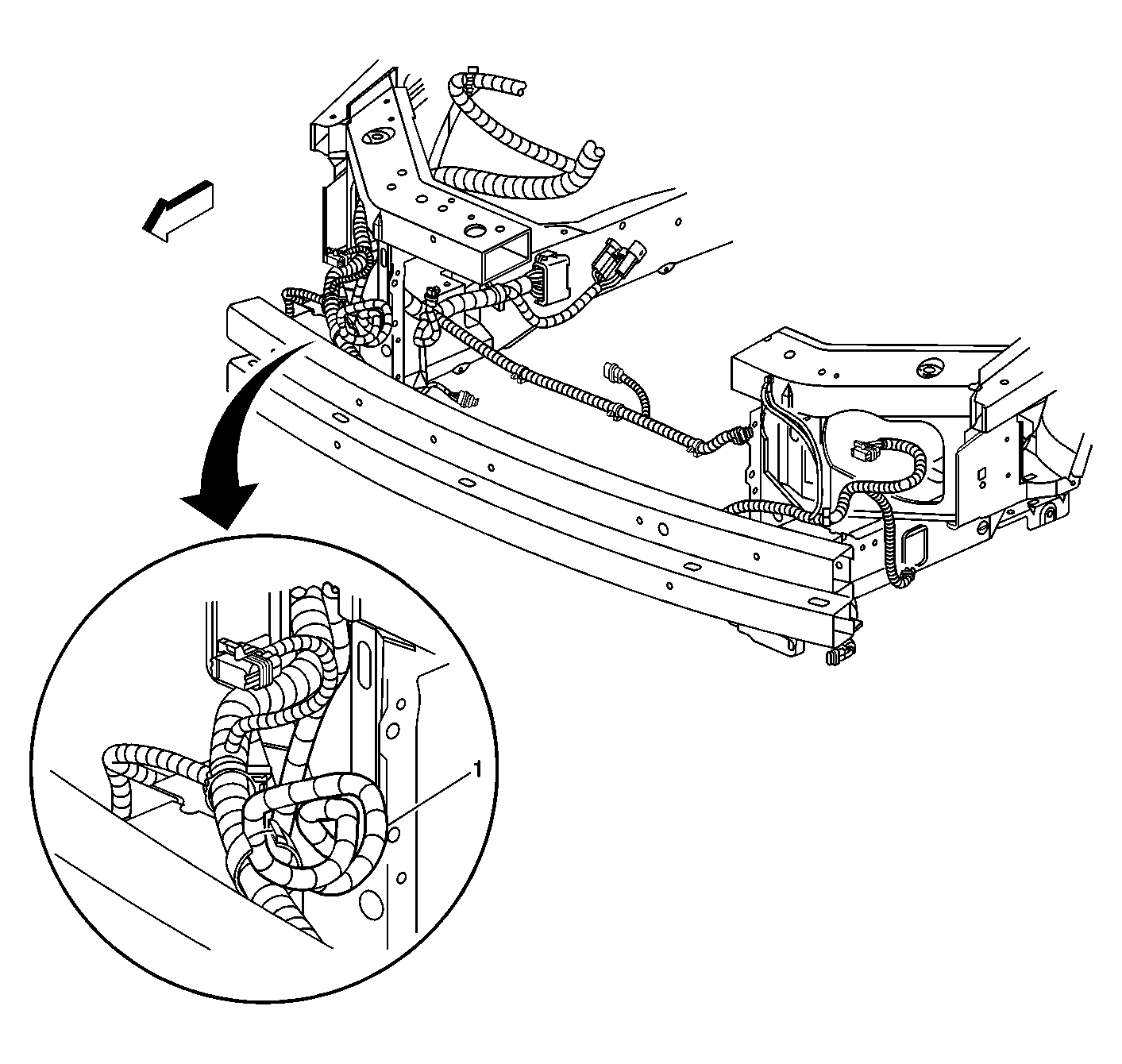

Fig 4: Right Front Of Vehicle Component View (w/6J3)
GM592714Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Wiring Blunt End

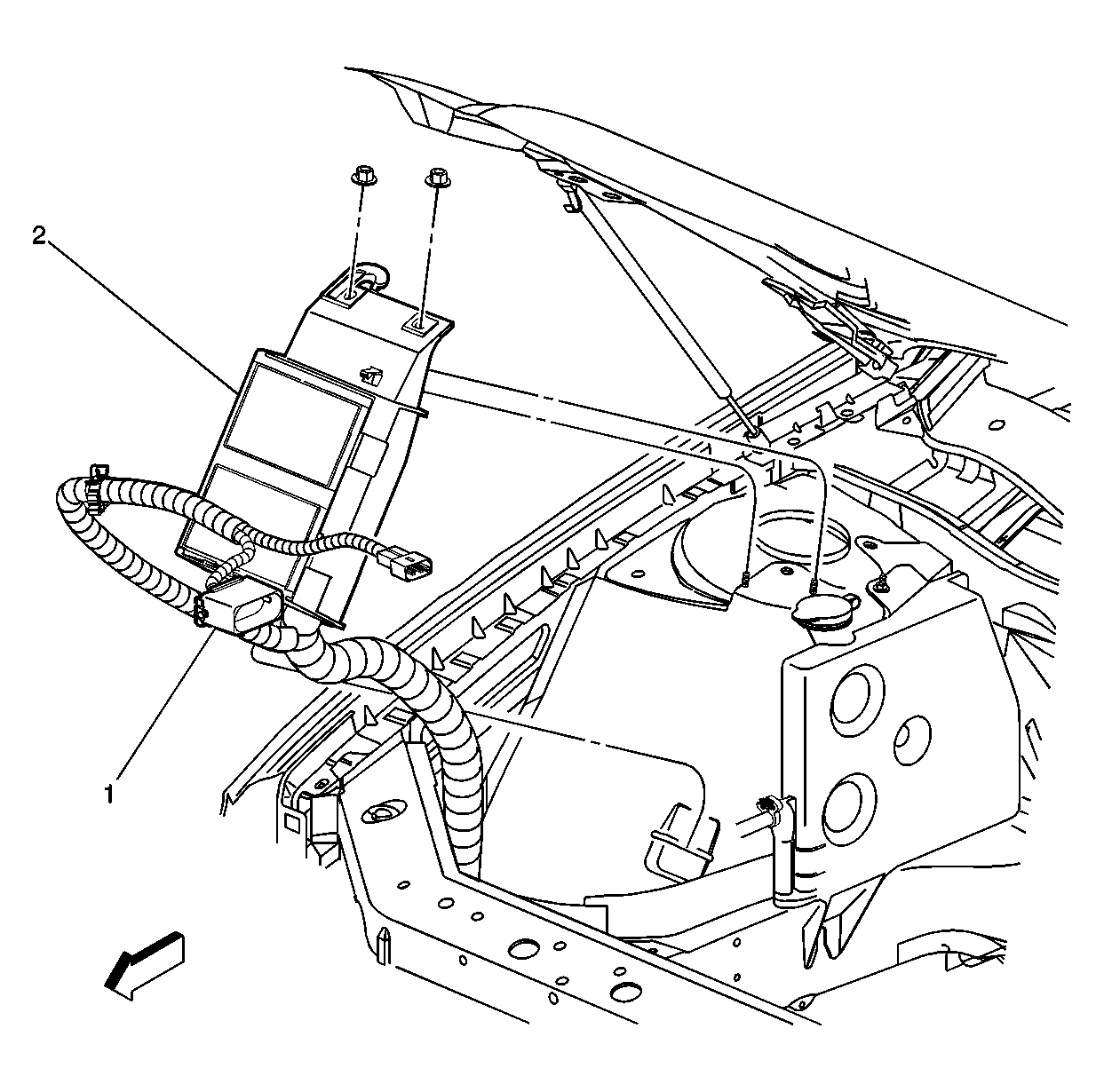

Fig 5: Underhood Junction Block Component View
GM487972Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C112
2 Junction Block-Underhood (Top and Bottom)

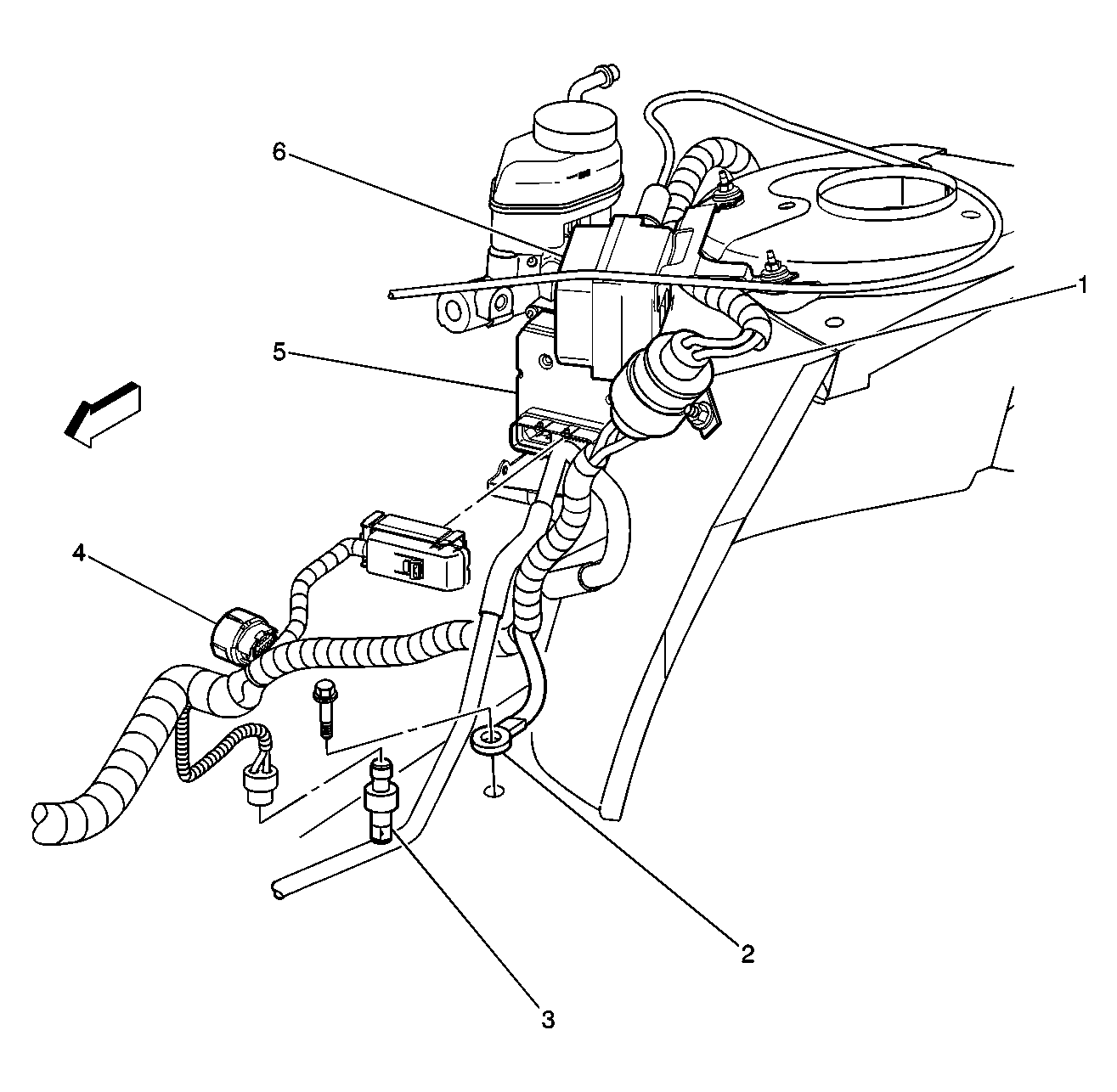

Fig 6: Left Center Of Engine Compartment Component View
GM732595Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C101
2 G151
3 A/C Refrigerant Pressure Sensor
4 C113
5 Electronic Brake Control Module (EBCM)
6 Cruise Control Module (CCM)

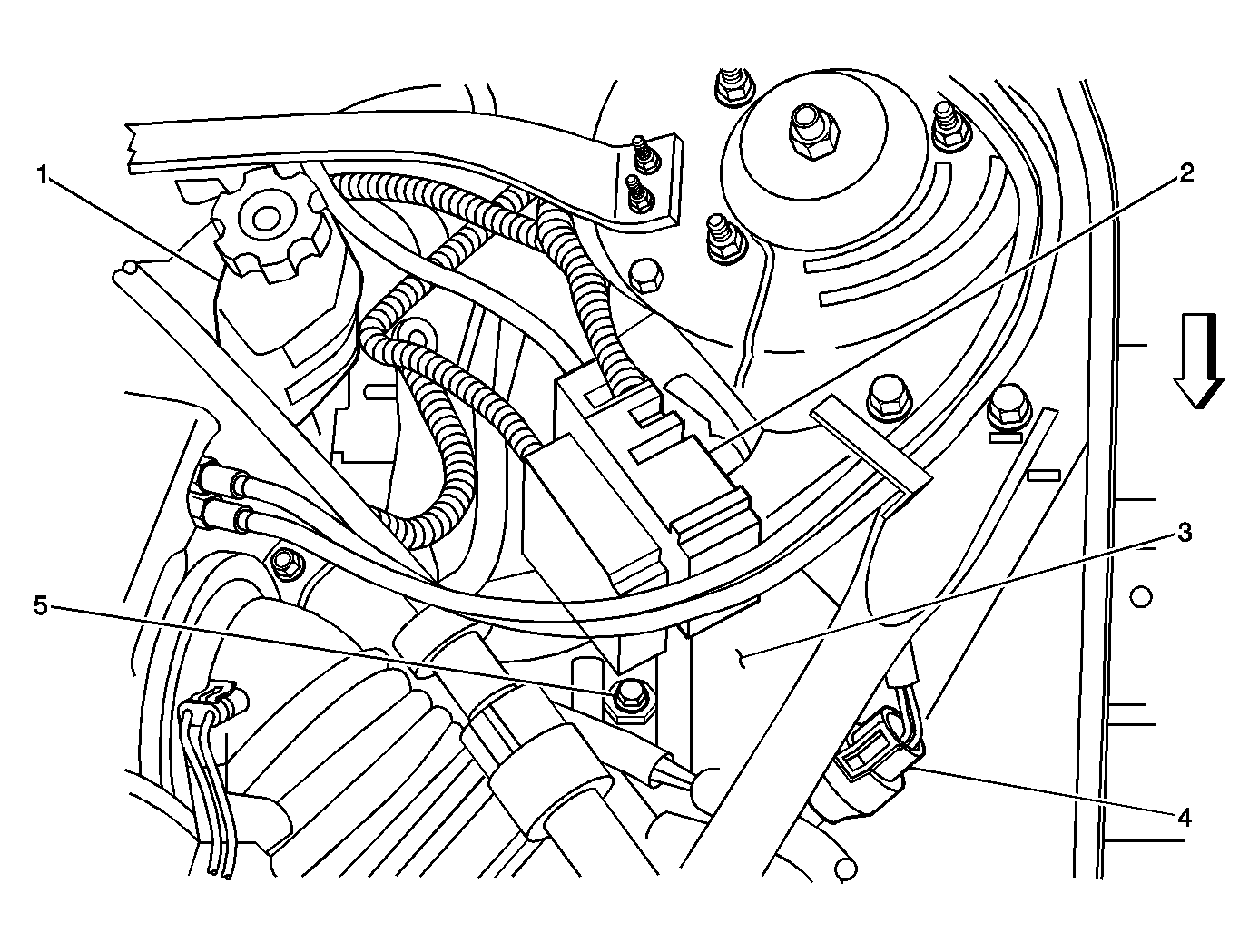

Fig 7: Left Center Rear Of Engine Compartment Component View
GM834273Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Brake Master Cylinder
2 Cruise Control Module
3 Left Front Strut Tower
4 C101
5 G171

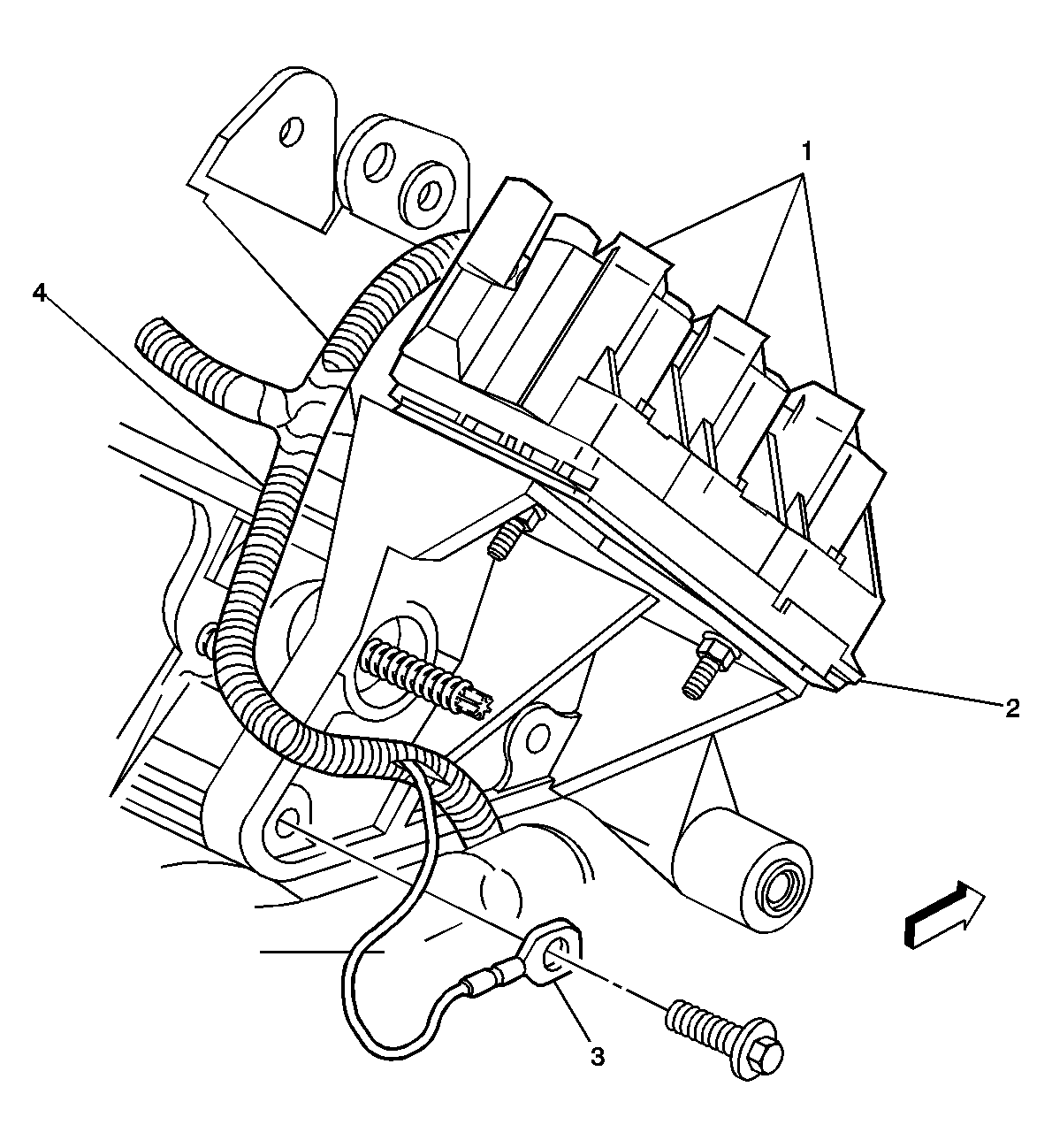

Fig 8: Right Side Of Engine Component View (L36/L67)
GM305310Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Ignition Coils
2 Ignition Control Module (ICM)
3 G111
4 Ignition Control Module (ICM) Wiring Harness

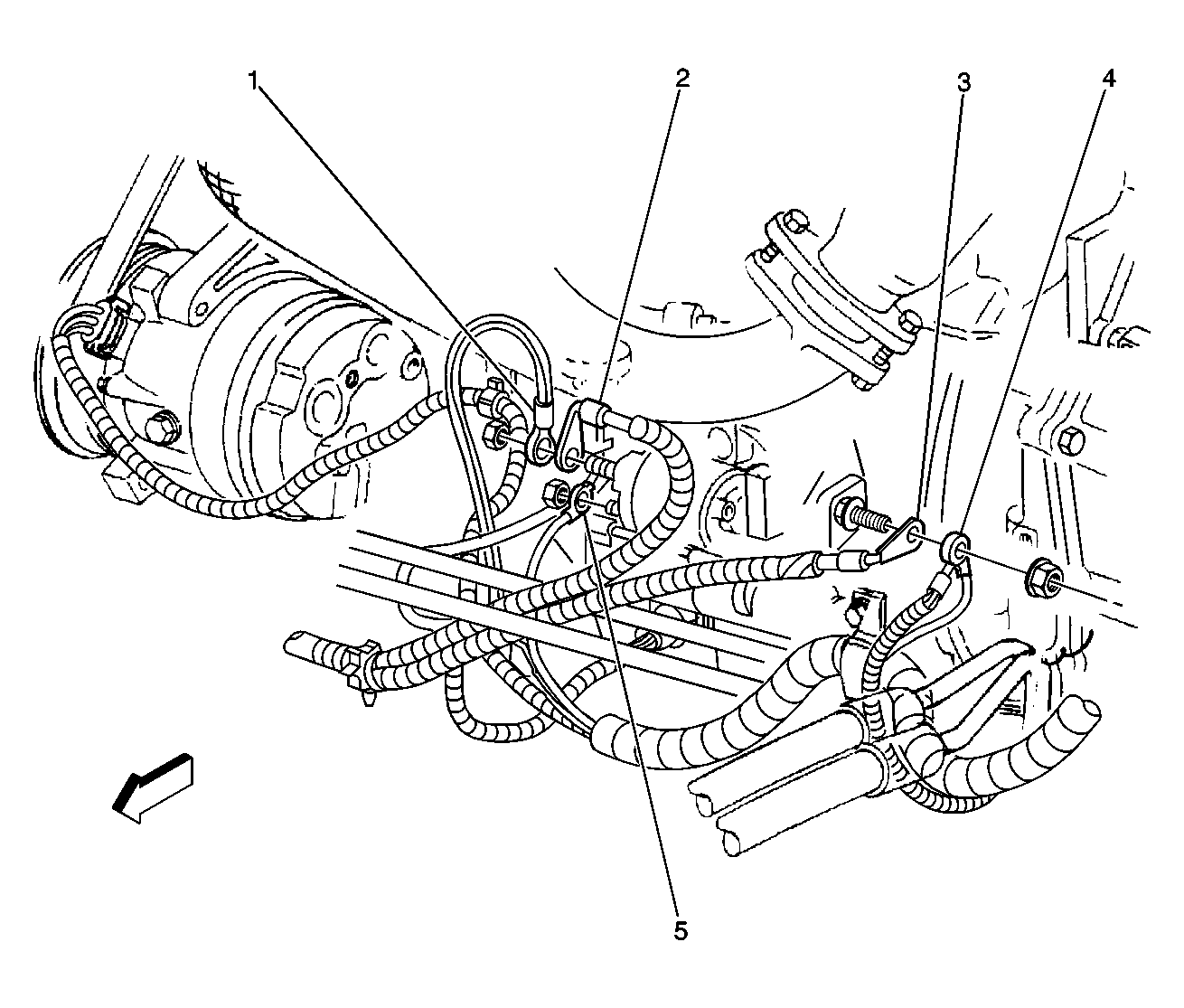

Fig 9: Lower Front Of Engine Component View
GM487943Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fusible Links (Starter)
2 Positive Battery Feed
3 G113 (Negative Battery Cable)
4 G113 (Engine Wiring Harness)
5 Starter Solenoid Lead

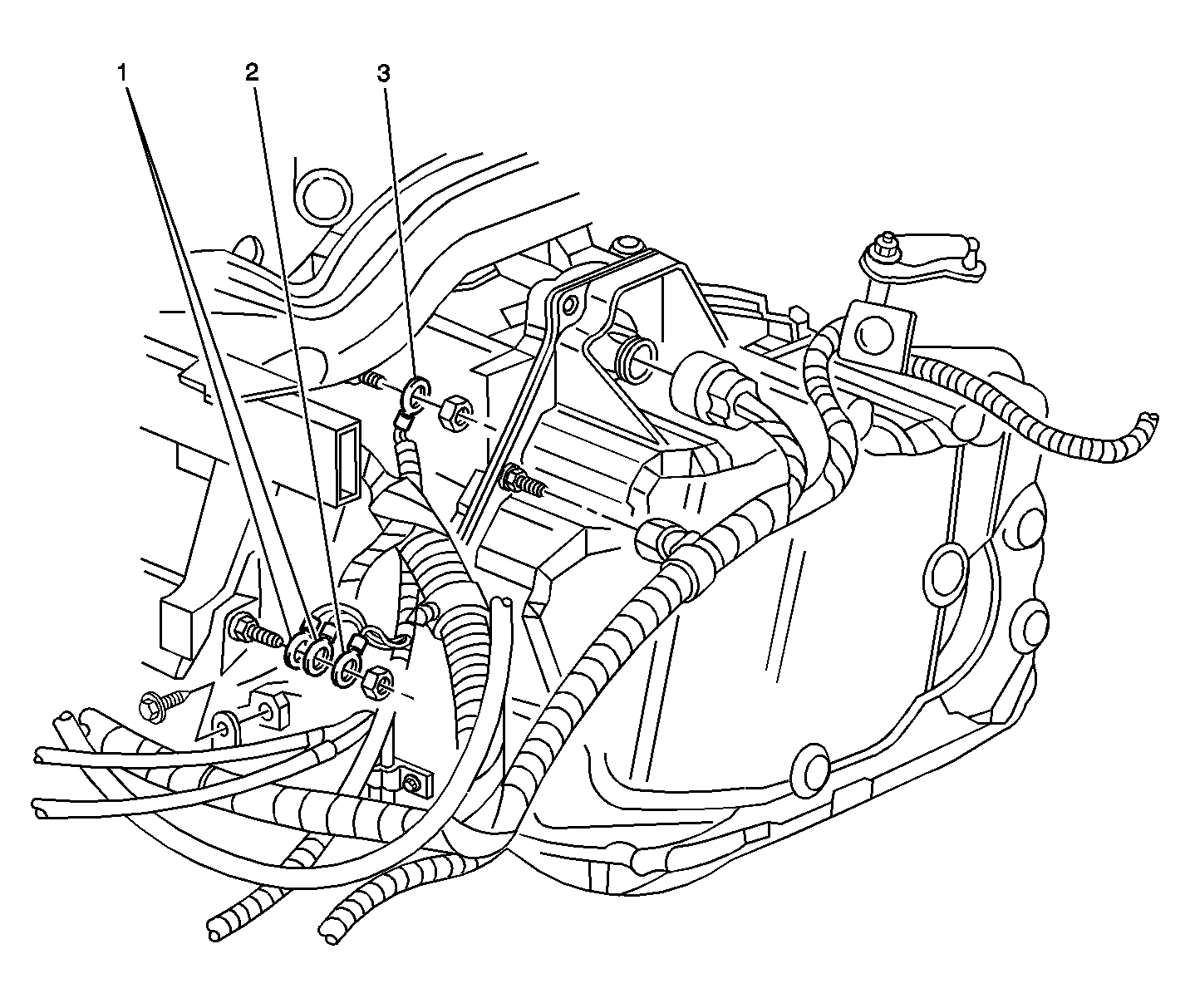

Fig 10: Lower Left Front Of Engine Component View
GM764972Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G113
2 G113 (L36)
3 G117

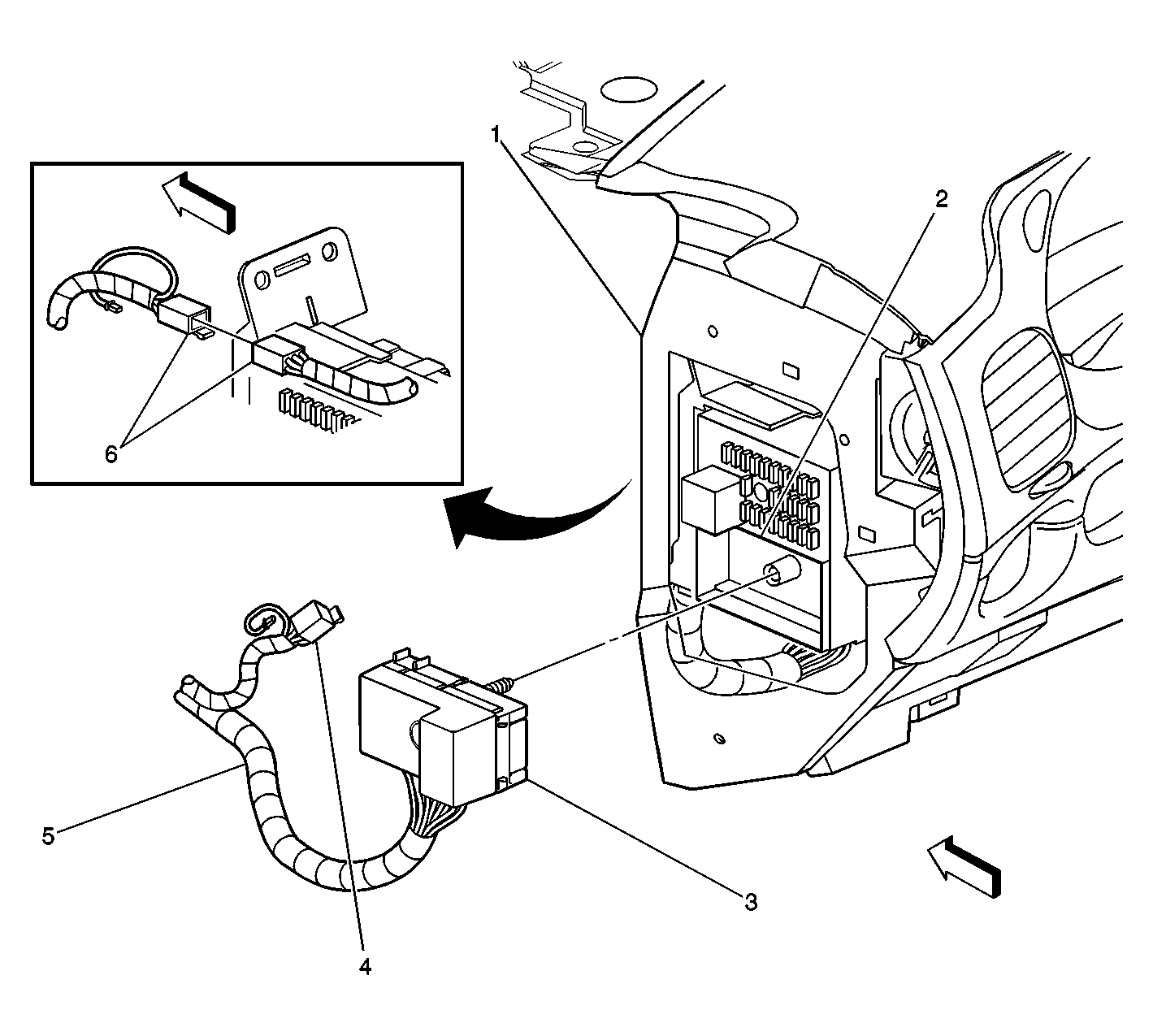

Fig 11: Left Side Of Instrument Panel Component View
GM741678Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Instrument Panel
2 Junction Block-Left I/P
3 Junction Block-Left I/P Connector C2
4 C217
5 Main Body Wiring Harness
6 C217

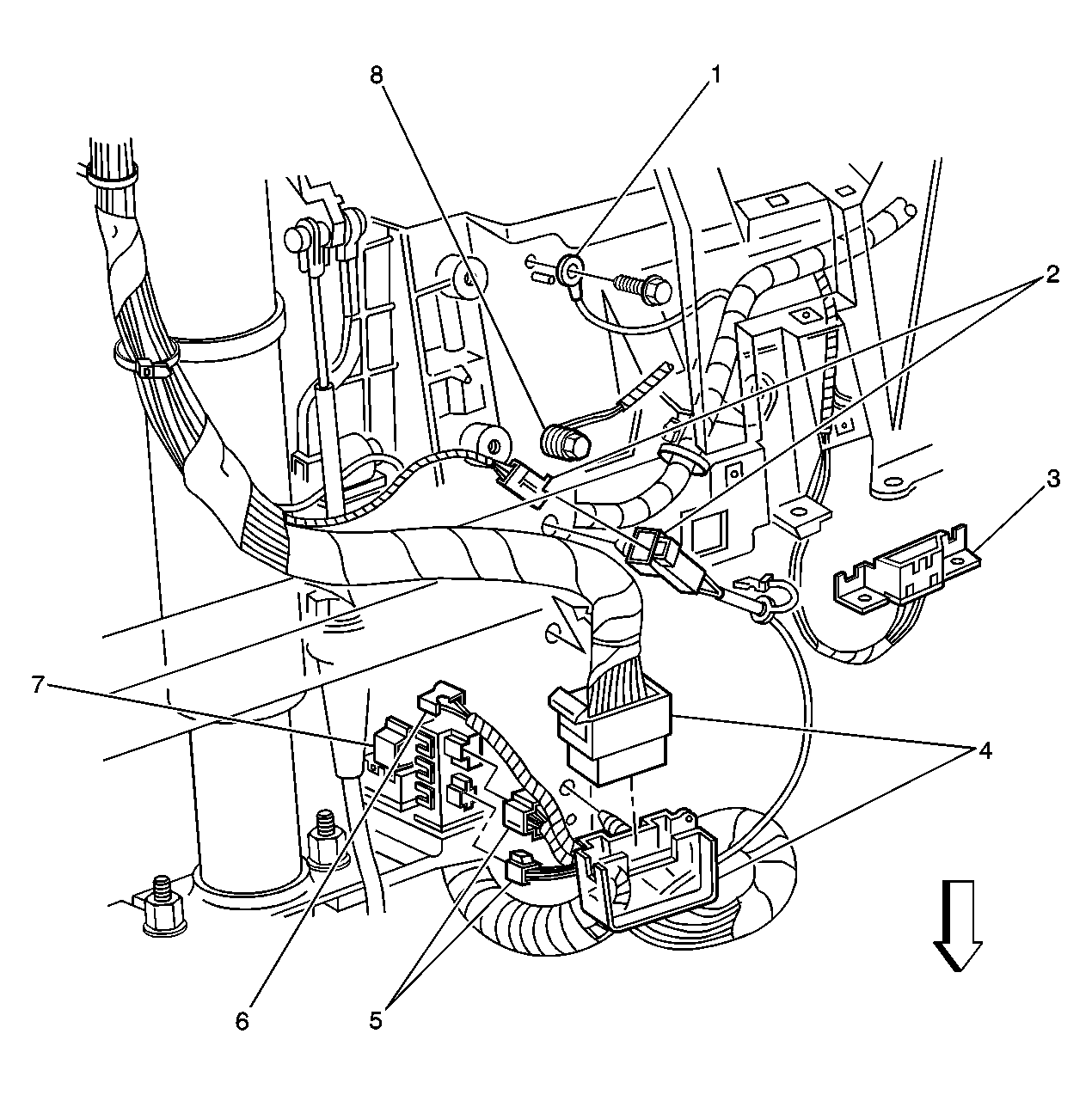

Fig 12: Lower Center Of Instrument Panel Component View (w/o 9C1/9C3)
GM487935Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G203
2 Inflatable Restraint Steering Wheel Module Coil Connector C1
3 Data Link Connector (DLC)
4 C201
5 Stop Lamp Switch Connectors
6 Cruise Control Release Switch Connector
7 Cruise Control Release Switch
8 G201
Fig 13: Lower Center Of Instrument Panel Component View
GM741398Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Steering Column
2 A/T Shift Lock Control Solenoid (w/o D55)
3 Fuse Block-SEO (9C1/9C3)
4 Circuit Breaker #1, #2, #3 (9C1/9C3)

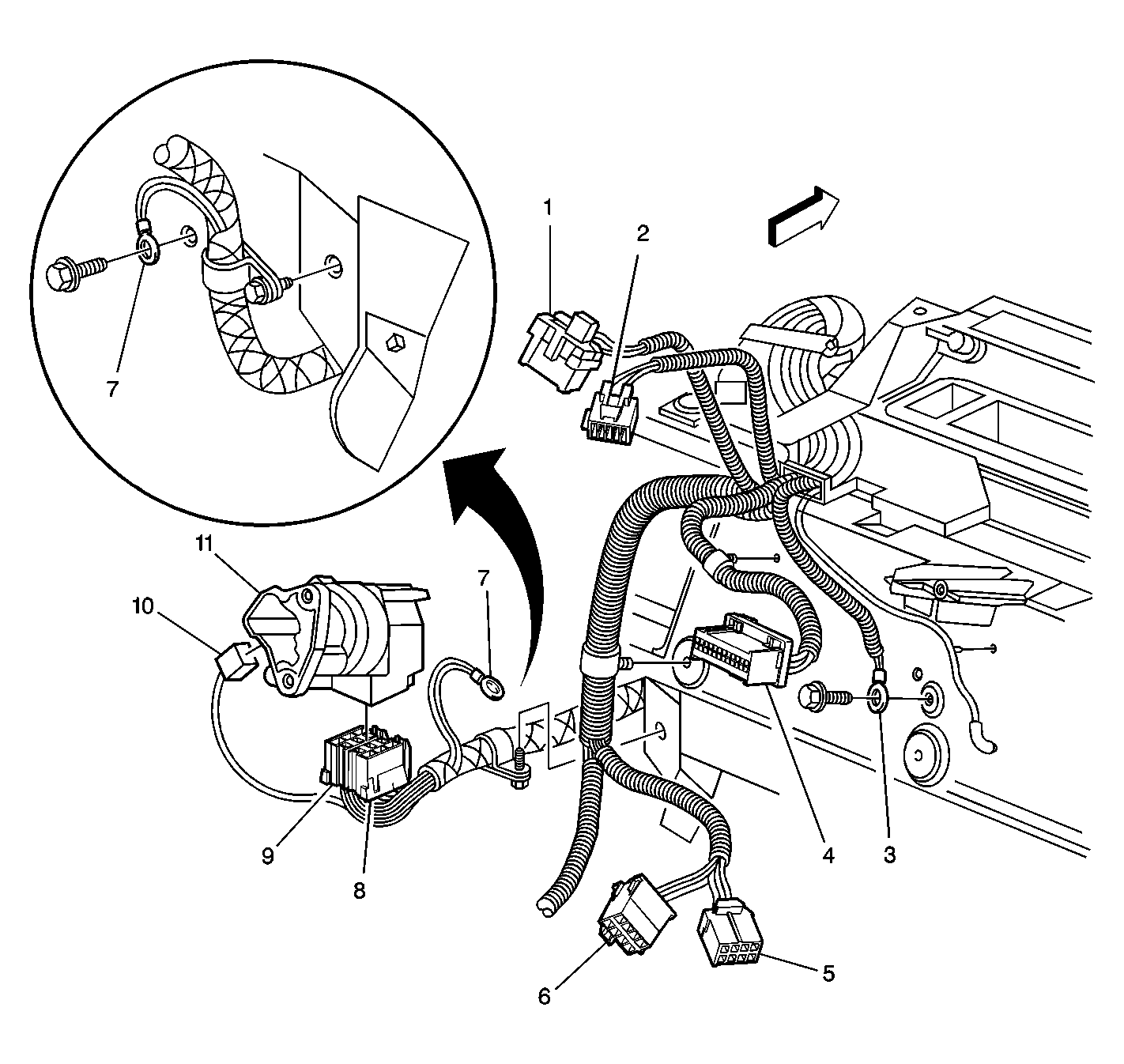

Fig 14: Behind Center Left Side Of Instrument Panel Component View
GM514083Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Radio Connector C1
2 Radio Connector C2
3 G202
4 Data Link Connector (DLC)
5 HVAC Control Module Connector C1
6 HVAC Control Module Connector C2
7 G201
8 Ignition Switch Connector C2
9 Ignition Switch Connector C1
10 Passlock Sensor Connector
11 Ignition Switch

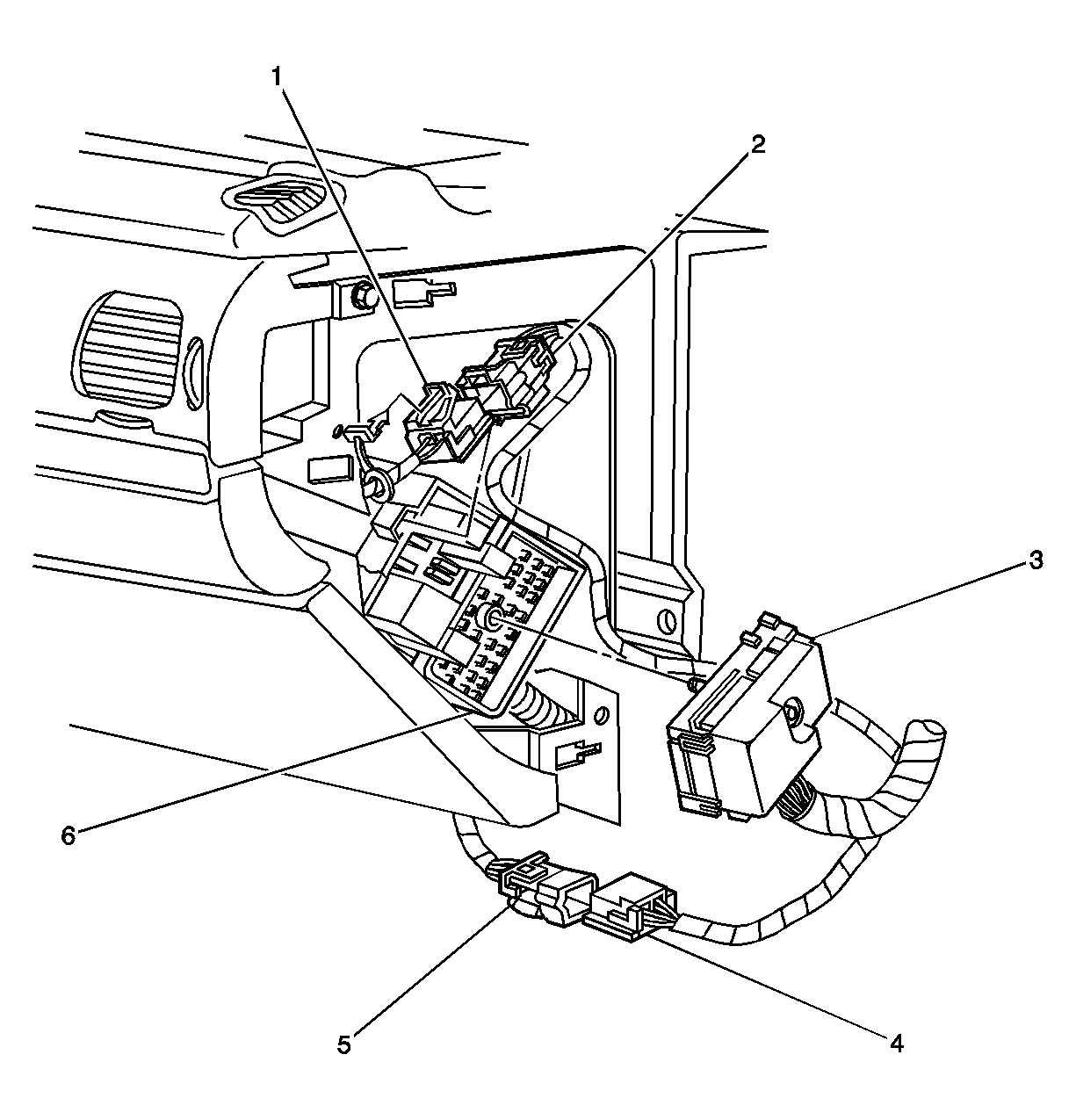

Fig 15: Right Side Of Instrument Panel Component View
GM858671Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C218 (IP Harness)
2 C218 (Main Body Harness)
3 Junction Block-Right IP C2 (Main Body Harness)
4 C225 (Main Body Harness)
5 C225 (IP Harness)
6 Junction Block-Right IP C2 (IP Harness)

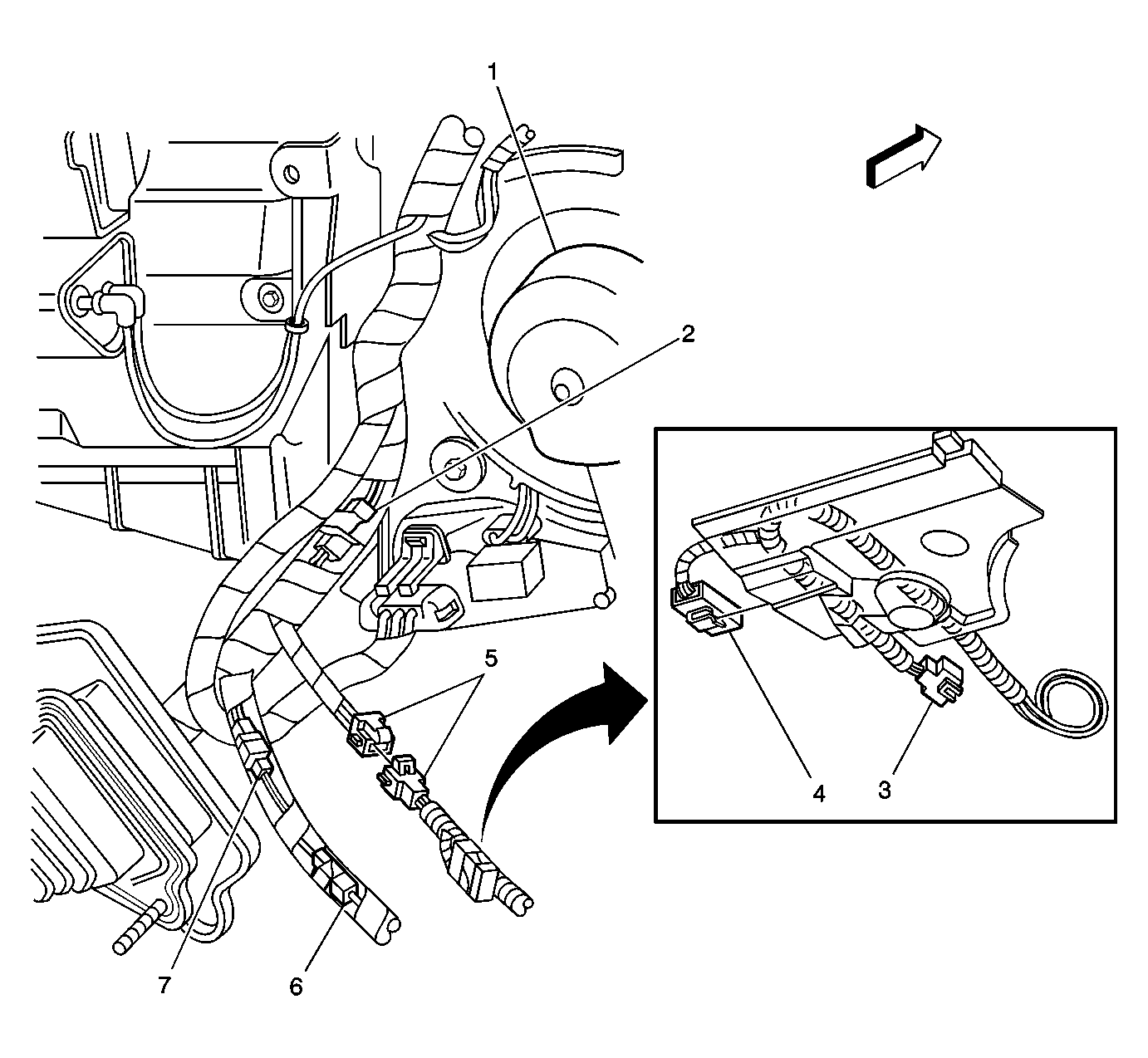

Fig 16: Behind Right Side Of Instrument Panel Component View (SEO)
GM741574Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Blower Motor
2 C255
3 C297
4 Emergency Vehicle Front Lamps Flasher
5 C297
6 C209
7 C299

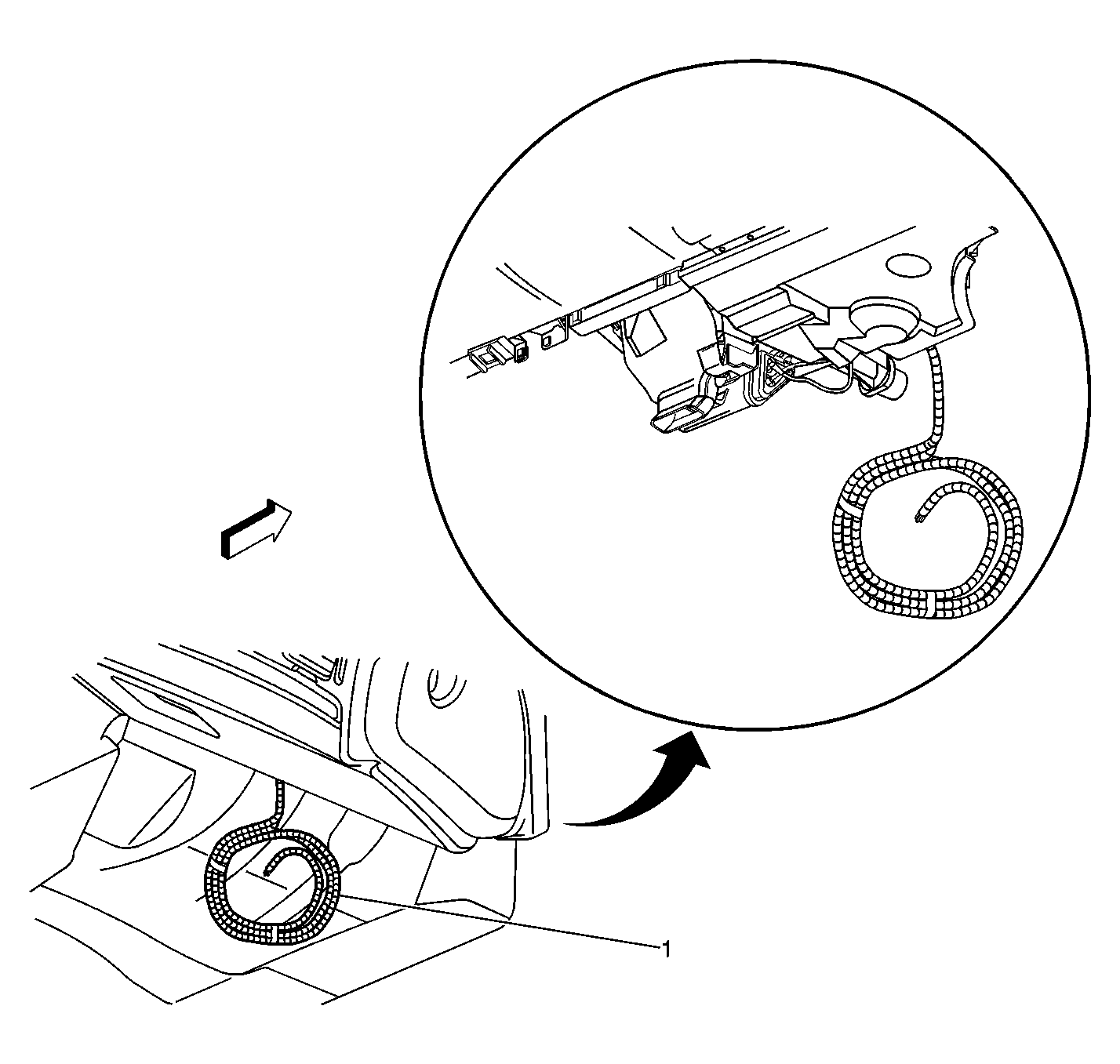

Fig 17: Right Front Floor Component View (SEO)
GM592705Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Wiring Blunt End (Coiled)

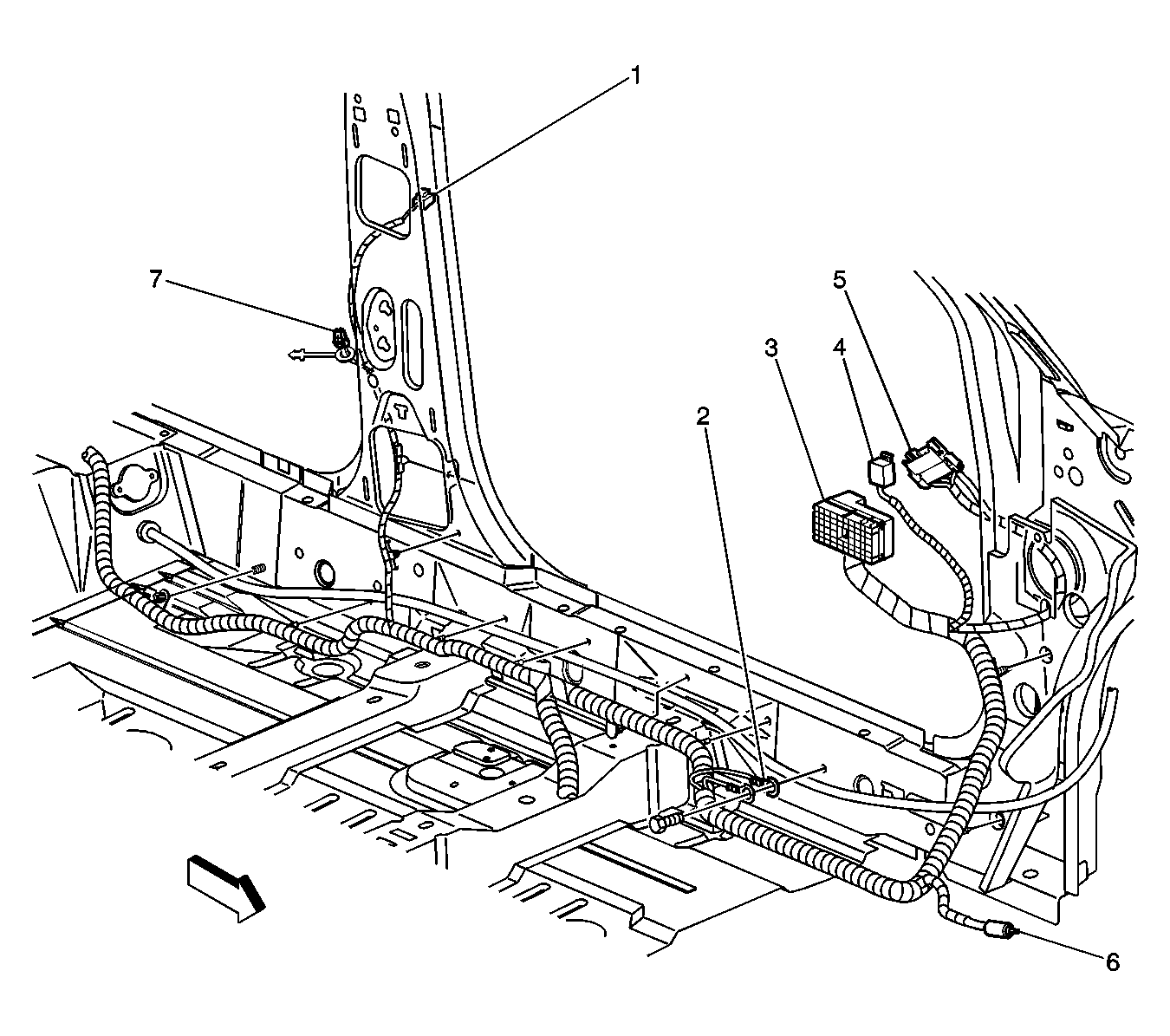

Fig 18: Lower Left Of Passenger Compartment Component View
GM488359Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Inflatable Restraint Side Impact Sensor (SIS)-LF (Impala)
2 G301
3 Junction Block-Left IP Connector C2
4 Park Brake Switch Connector
5 C301
6 C205
7 C355 (Impala)
Fig 19: Console & Center Of Floor Component Views
GM885136Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Cigar Lighter
2 Heated Seat Switch-Driver (Monte Carlo) Connector
3 Heated Seat Switch-Front Passenger (Monte Carlo) Connector
4 C317
5 C315
6 Auxiliary Power Outlet
7 Inflatable Restraint Sensing and Diagnostic Module (SDM) Connector
8 C312
9 Inflatable Restraint Side Impact Module-LF Connector
10 C311
11 A/T Shift Lock Control Solenoid

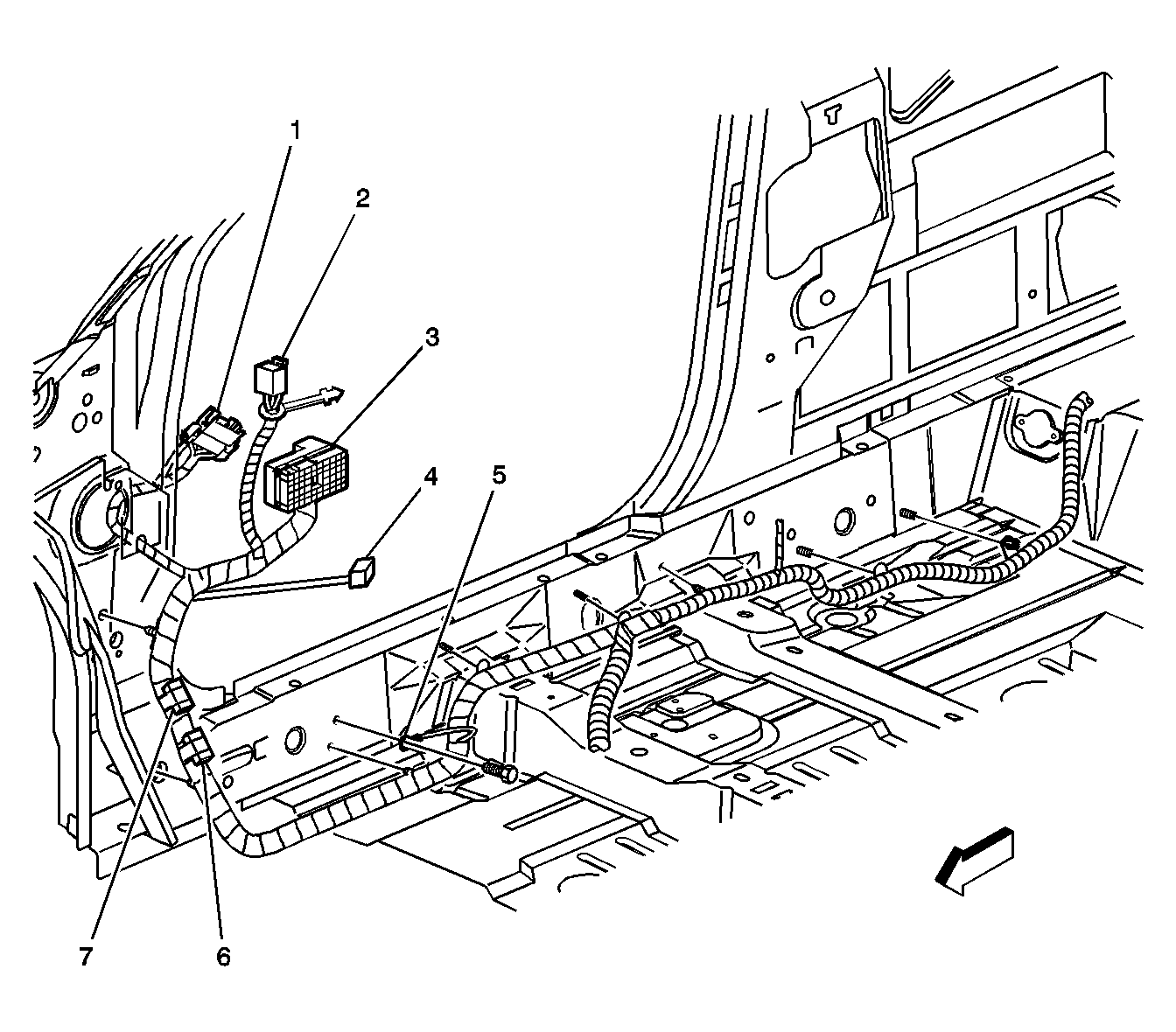

Fig 20: Lower Right Of Passenger Compartment Component View
GM858706Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C302
2 C218
3 Junction Block-Right I/P Connector (Main Body Harness Side)
4 C225
5 G302
6 C306 (w/9C1/9C3)
7 C308 (w/9C1/9C3)

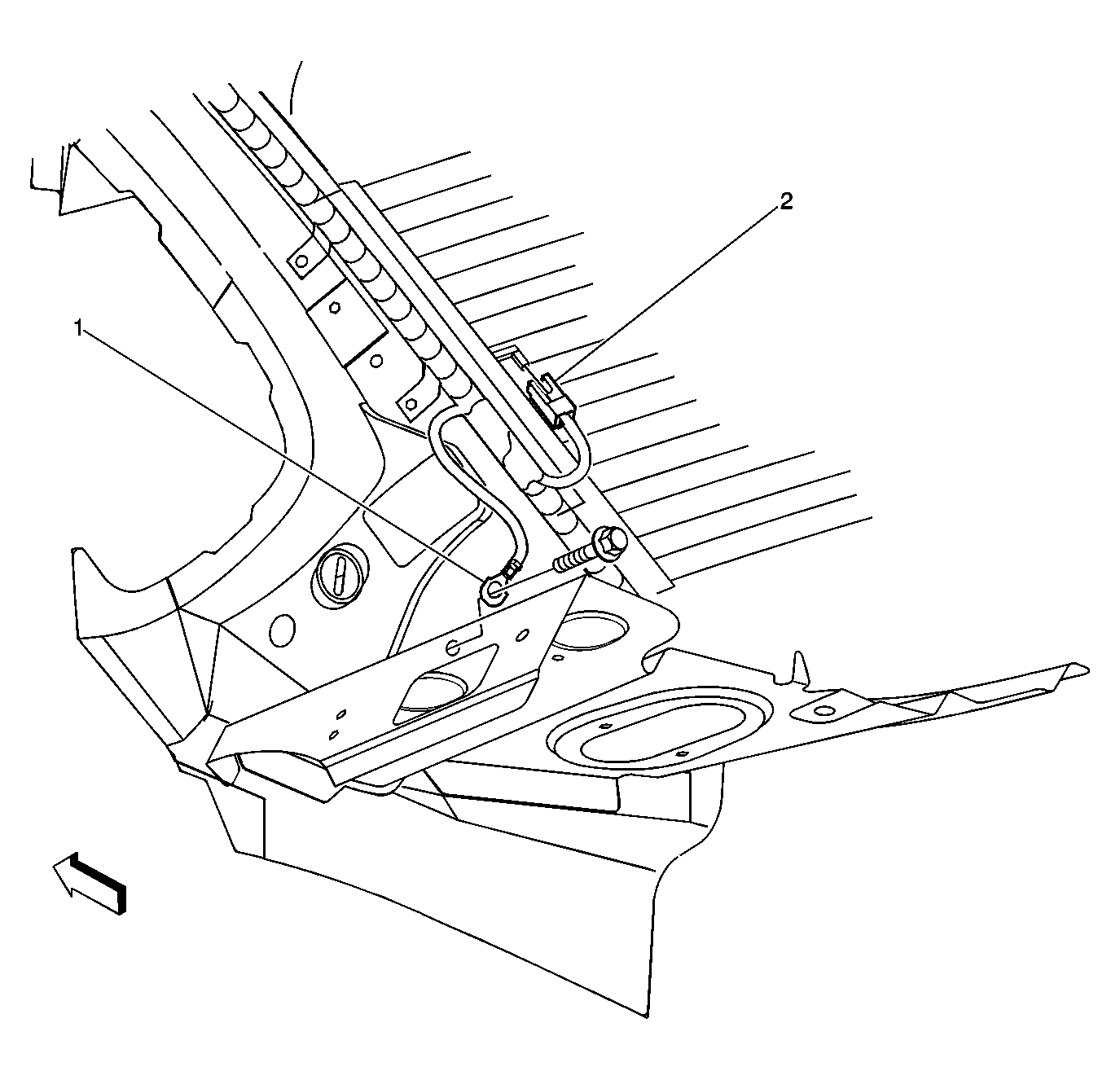

Fig 21: Right Lower Corner Of Rear Window Component View
GM488082Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G309
2 Rear Window Defogger Grid Connector

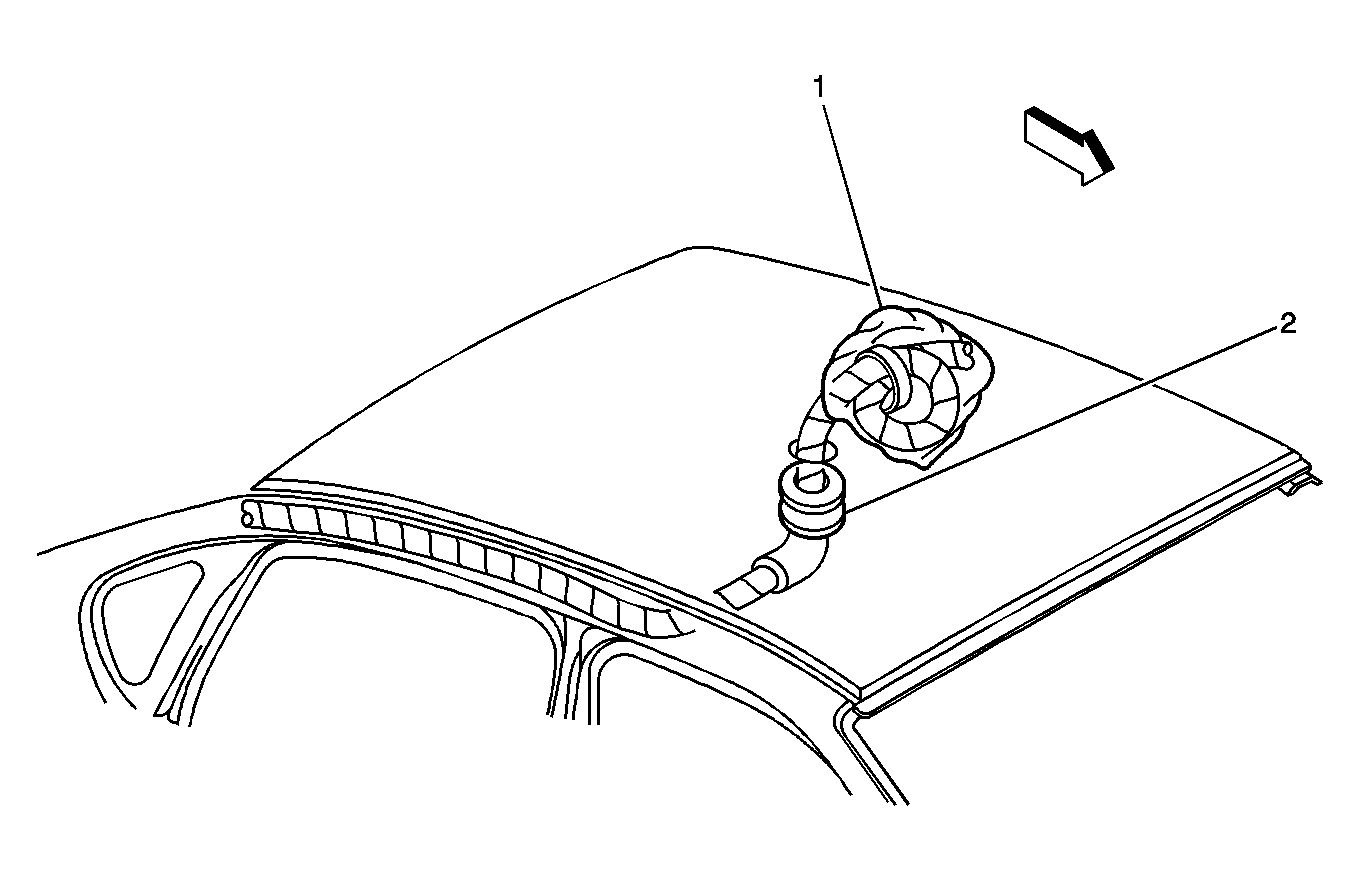

Fig 22: Roof Component View (w/6F5)
GM867132Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Blunt Wiring End for Roof (w/6F5)
2 P380 (w/6F5)

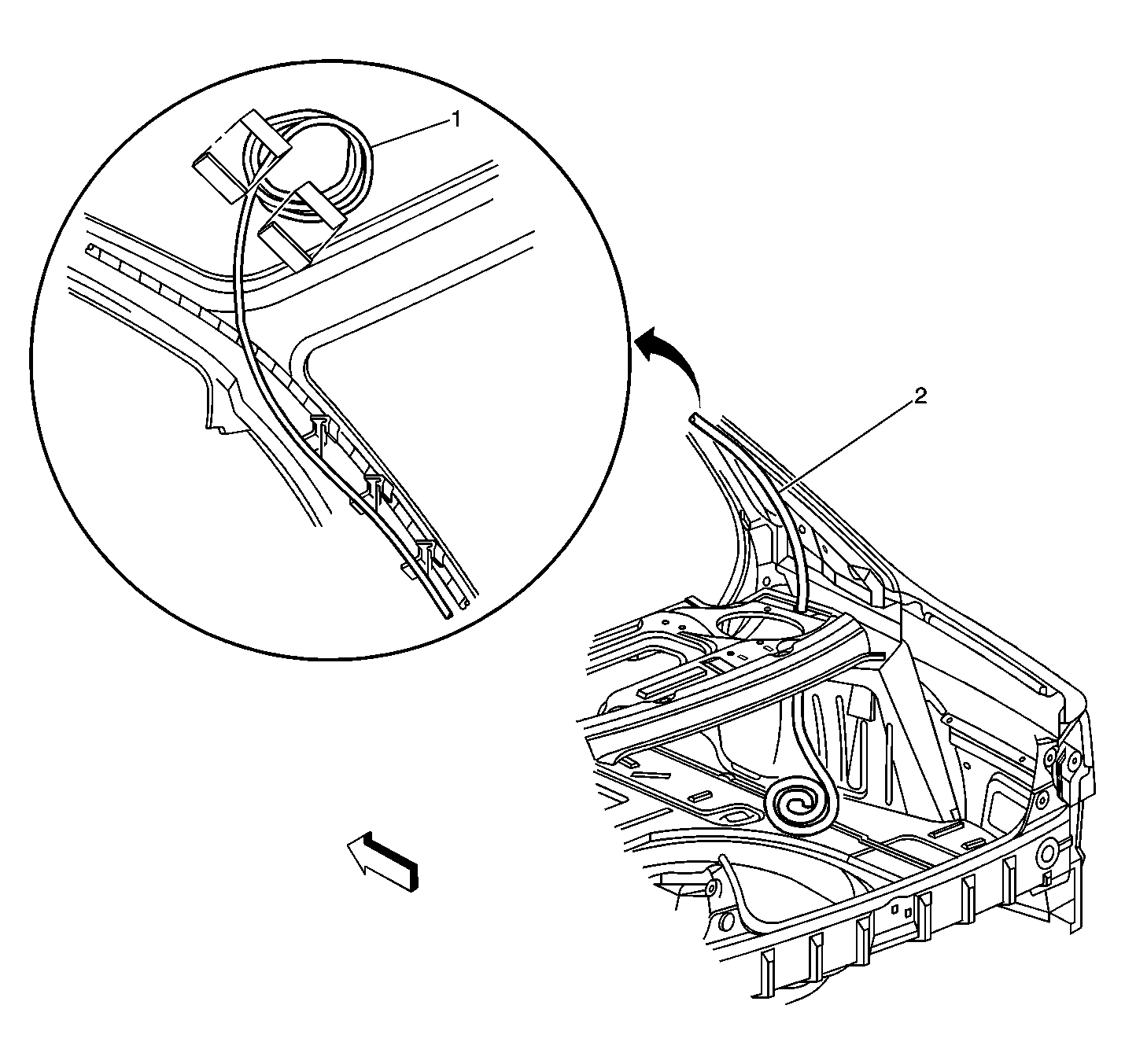

Fig 23: Right Rear Of Roof Component View (w/6C8)
GM592719Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Coaxial Cable (Roof)
2 Coaxial Cable (Rear Compartment)

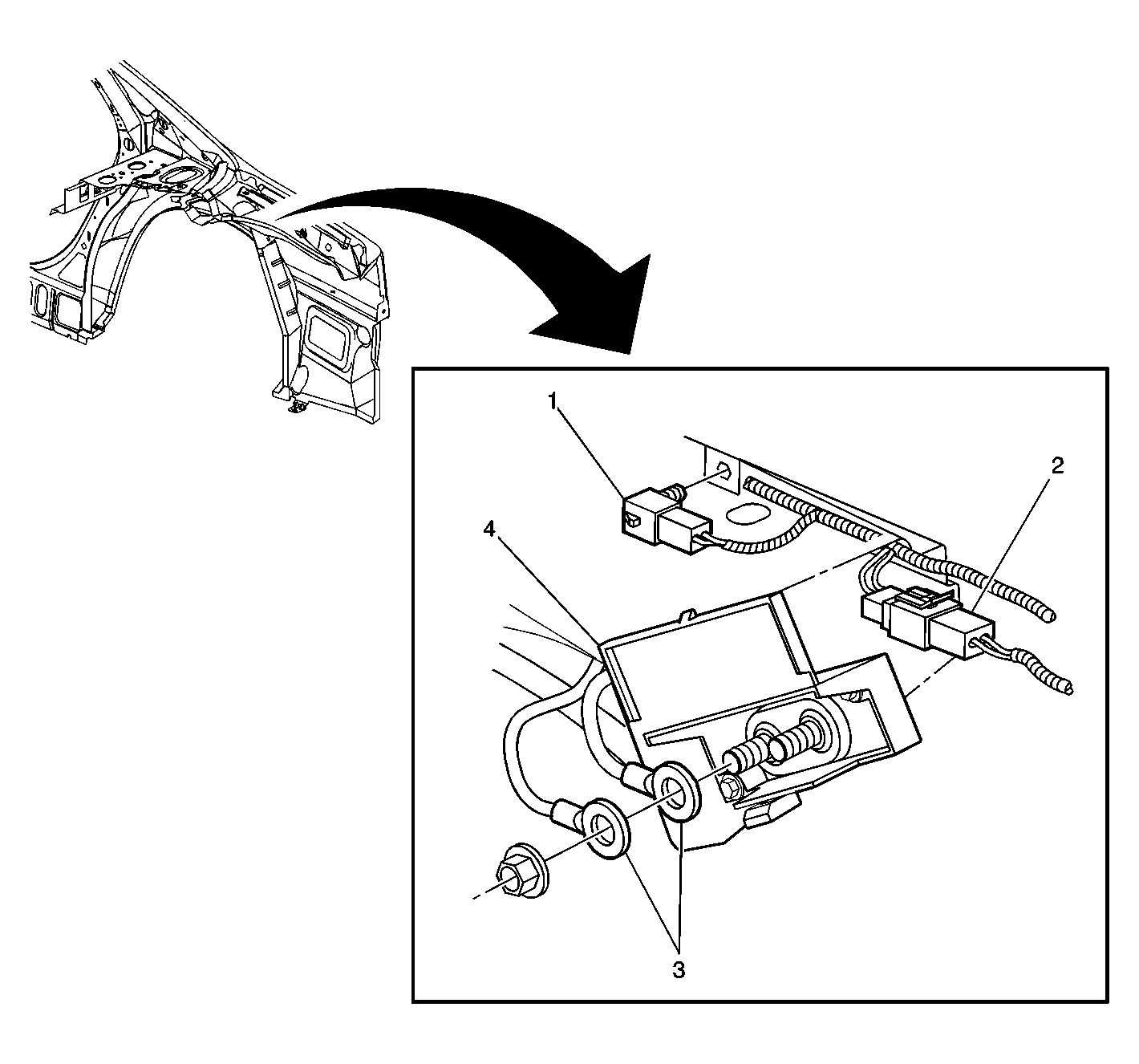

Fig 24: Rear Compartment Above Right Wheelhouse Component View
GM742085Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C430
2 C400
3 Battery Feed
4 Junction Block-Rear
