Power Door Systems Component Views

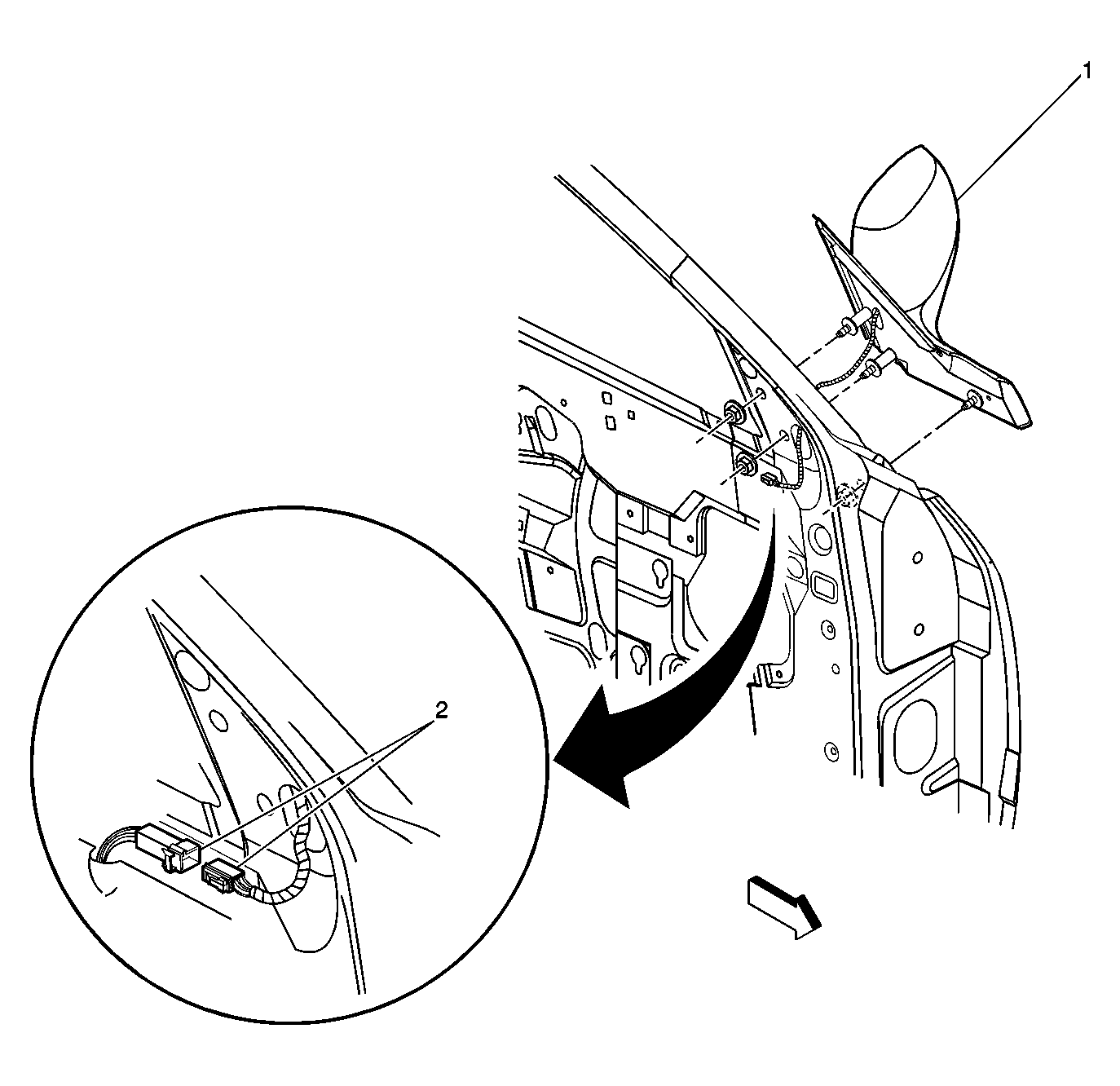

Fig 1: Front of Driver Door Component View, Front Passenger Similar

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror-Driver
2	Outside Rearview Mirror-Driver Pigtail and Connector

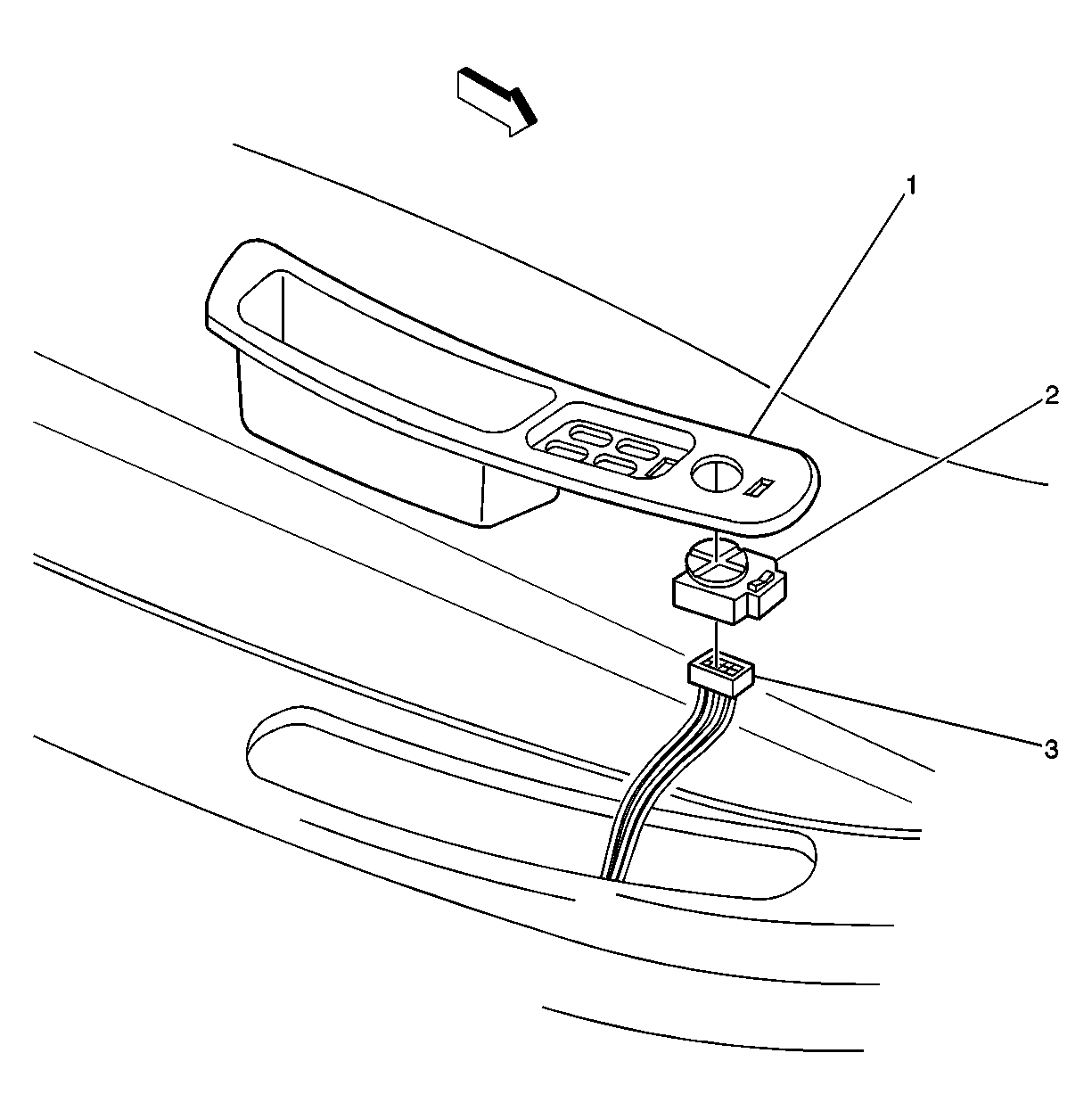

Fig 2: Front of Driver Door Trim Component View (Mirrors)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Door Switch Bezel
2	Outside Rearview Mirror Switch
3	Outside Rearview Mirror Switch Connector

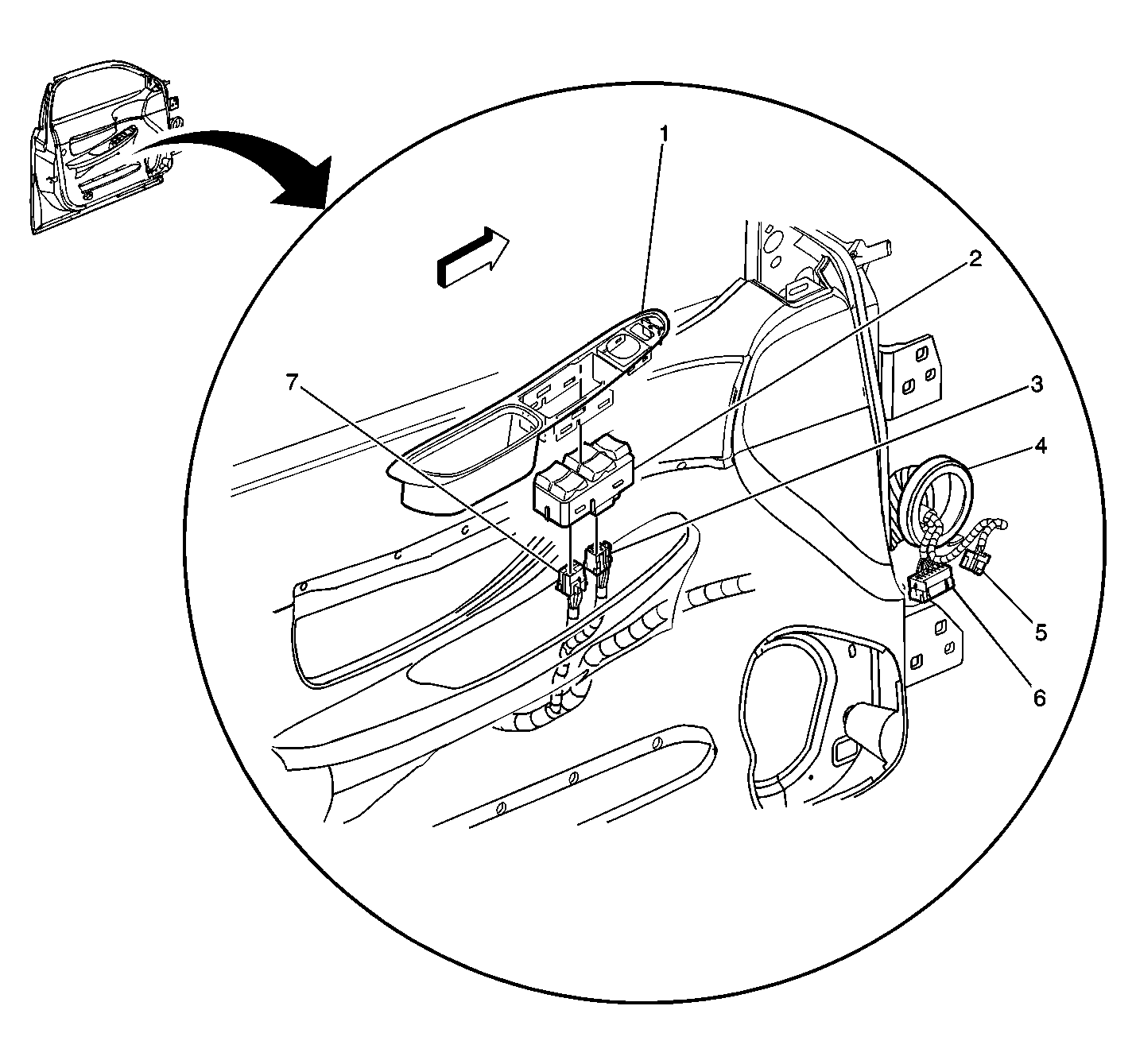

Fig 3: Front of Driver Door Trim Component View (Windows, Impala)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Door Switch Bezel
2	Window Switch-Driver
3	Window Lockout Switch Connector
4	P500
5	Park Brake Switch Connector
6	C301
7	Window Switch-Driver Connector

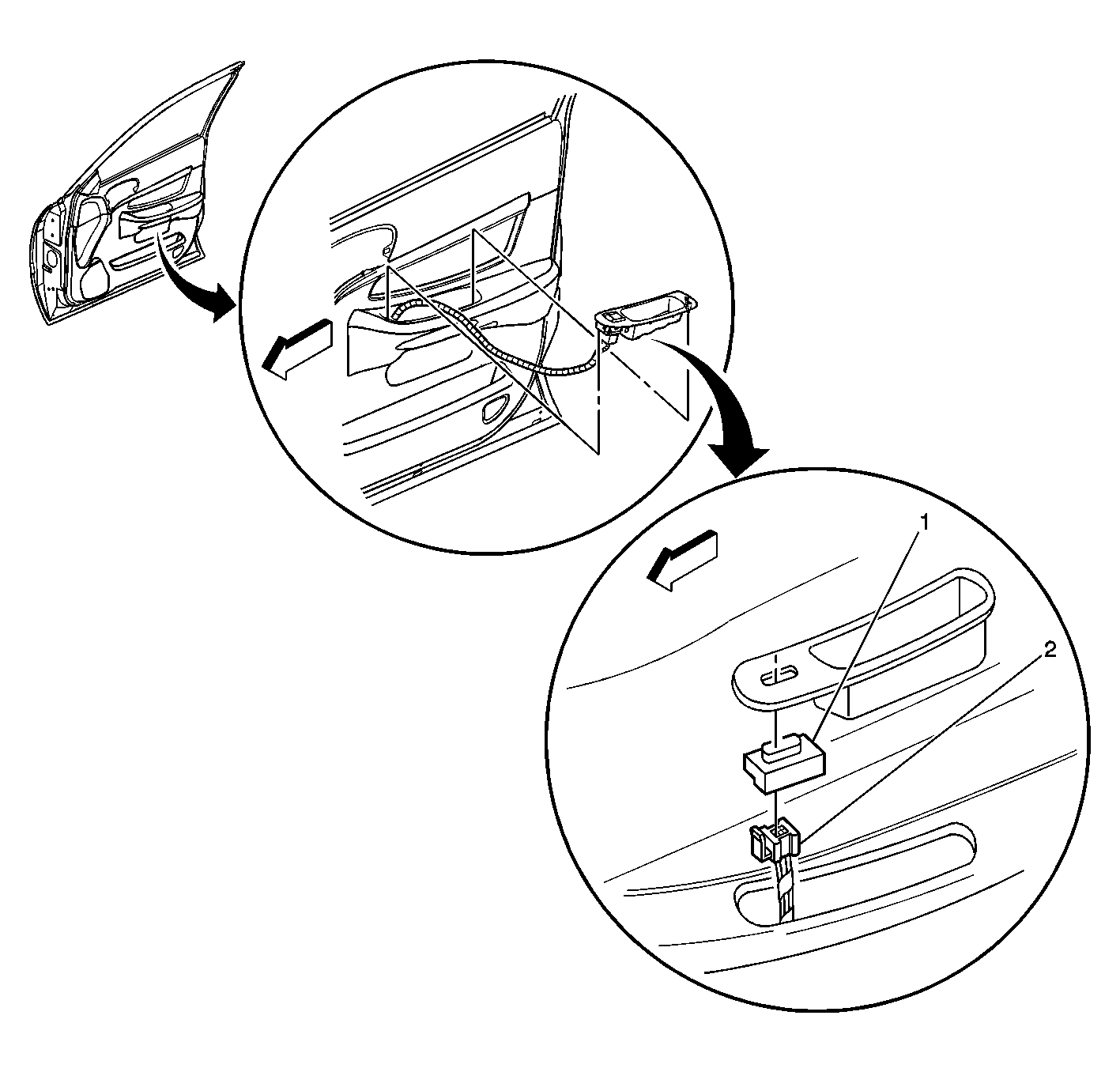

Fig 4: Front of Driver Door Trim Component View (Windows, Monte Carlo)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Door Switch Bezel
2	Window Switch-Driver
3	Window Switch-Driver Connector

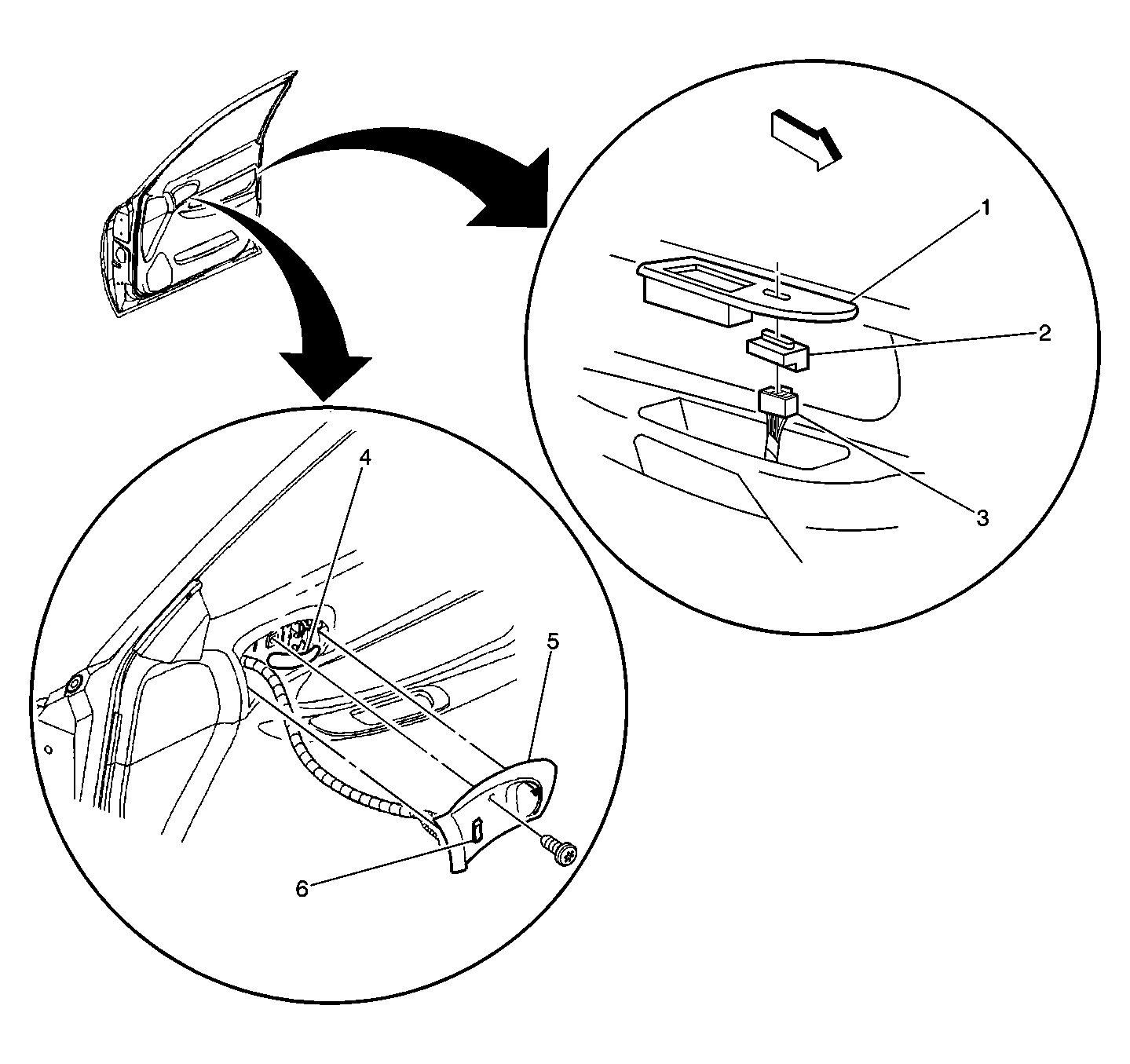

Fig 5: Front Door Trim-Typical Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Door Switch Bezel
2	Window Switch-Front Passenger
3	Window Switch-Front Passenger Connector
4	Manual Door Lock Release
5	Door Handle Bezel
6	Door Lock Switch-Front Passenger

Fig 6: Front of Right Rear Door Trim Component View, Left Rear Similar

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Window Switch-RR
2	Window Switch-RR Connector

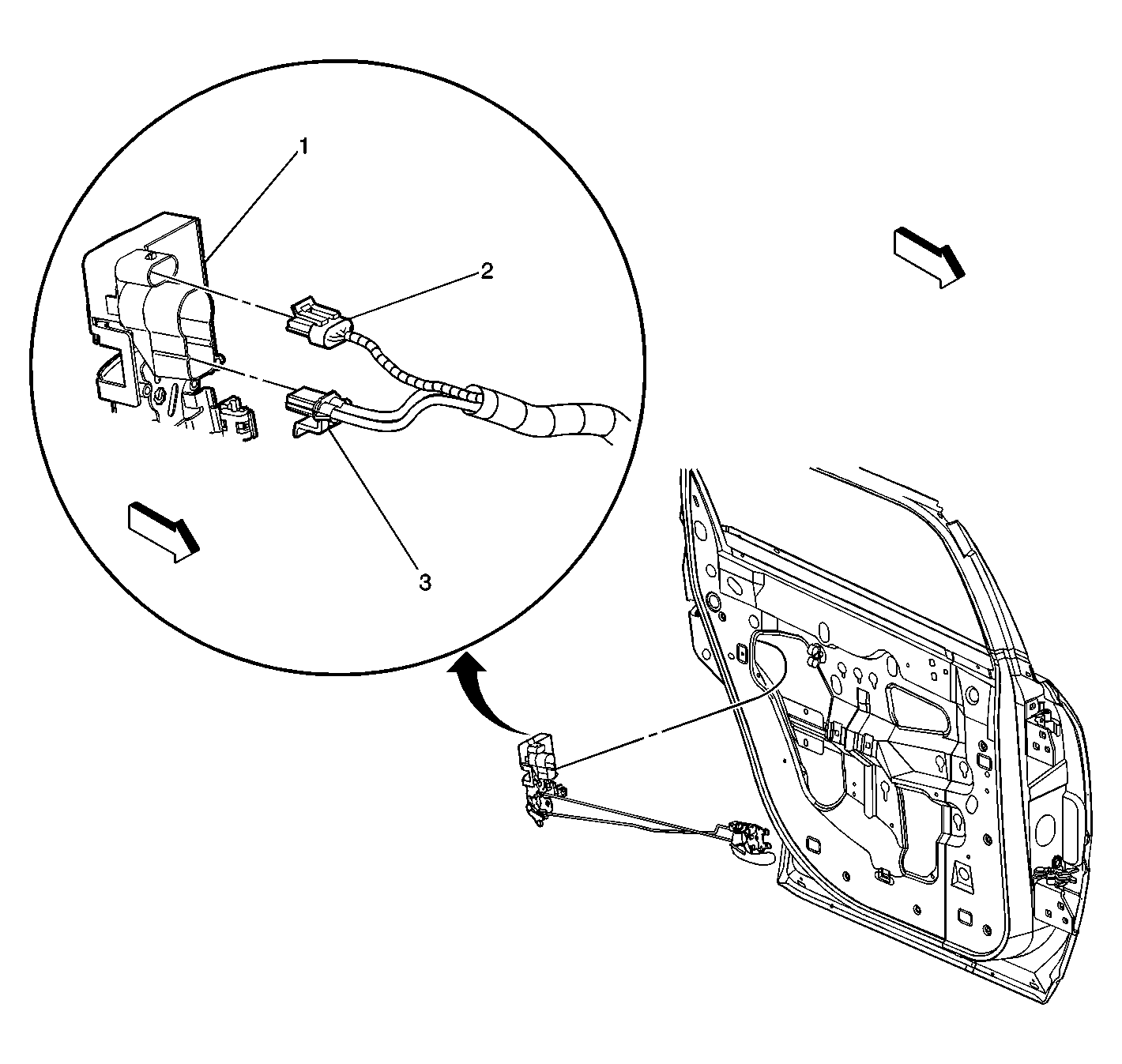

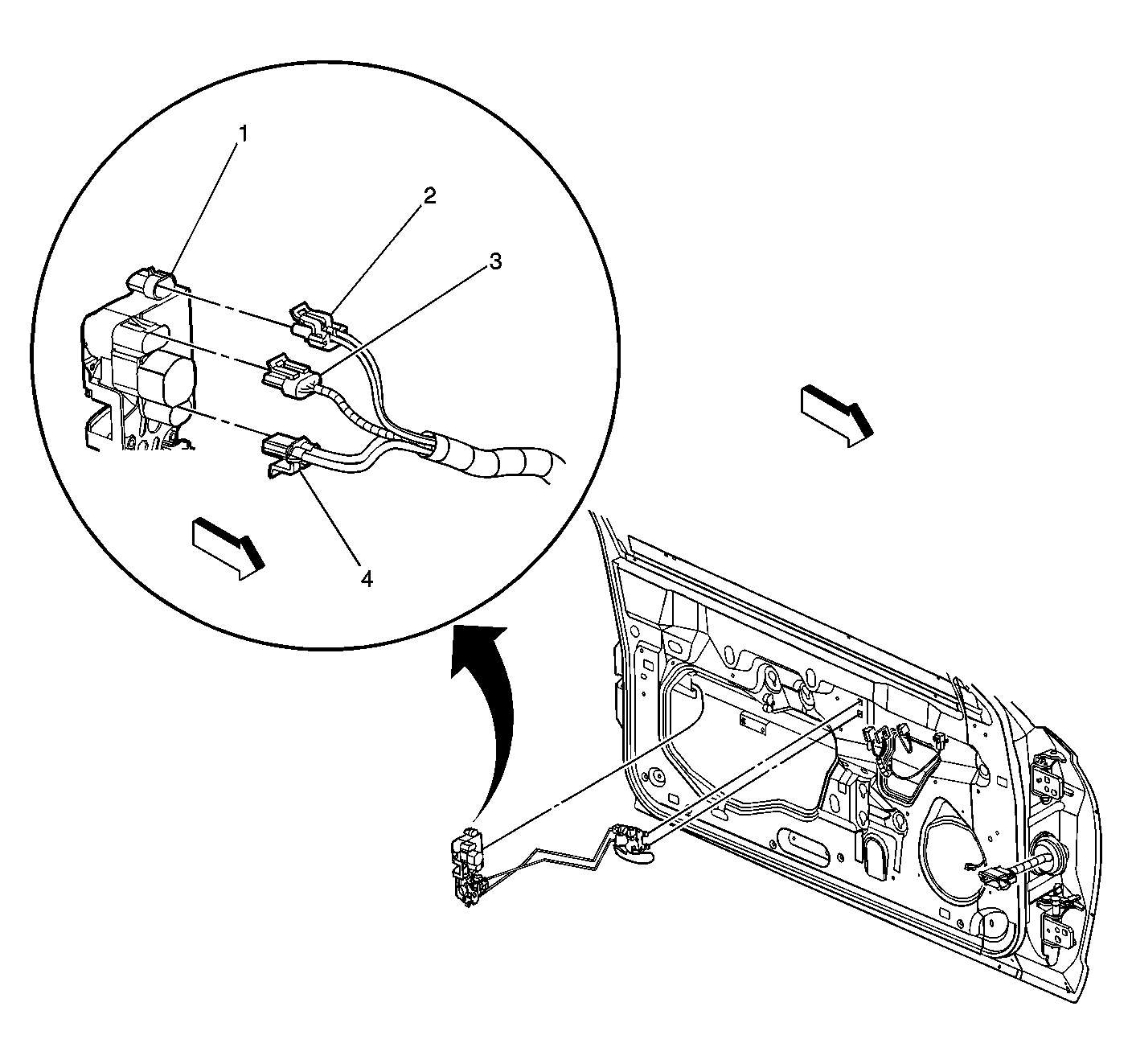

Fig 7: Inside of Driver Door Component View, Front Passenger Similar (Locks)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Lock-Driver
2	Door Lock Cylinder Switch-Driver Connector (UA6)
3	Door Lock-Driver, C2
4	Door Lock-Driver, C1

Fig 8: Inside of Left Rear Door Component View, Right Rear Similar (Locks)

Courtesy of GENERAL MOTORS CORP.

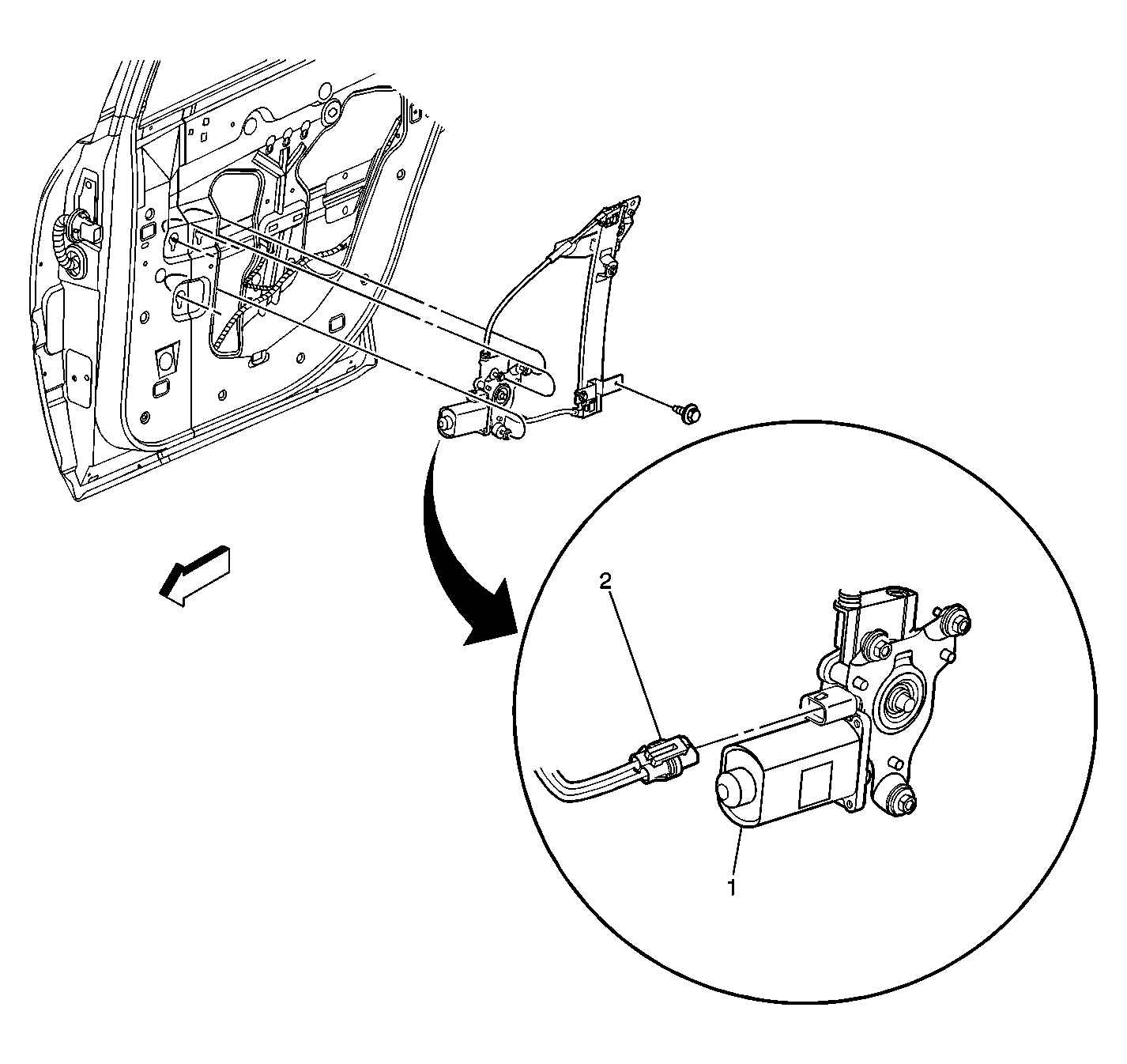

Fig 9: Inside of Front Passenger Door Component View, Driver Similar (Windows)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Window Motor-Front Passenger Connector
2	Window Motor-Front Passenger

Fig 10: Inside Right Rear Door Component View, Left Rear Similar (Windows)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Window Motor-RR
2	Window Motor-RR Connector
