Cellular Communication Component Views

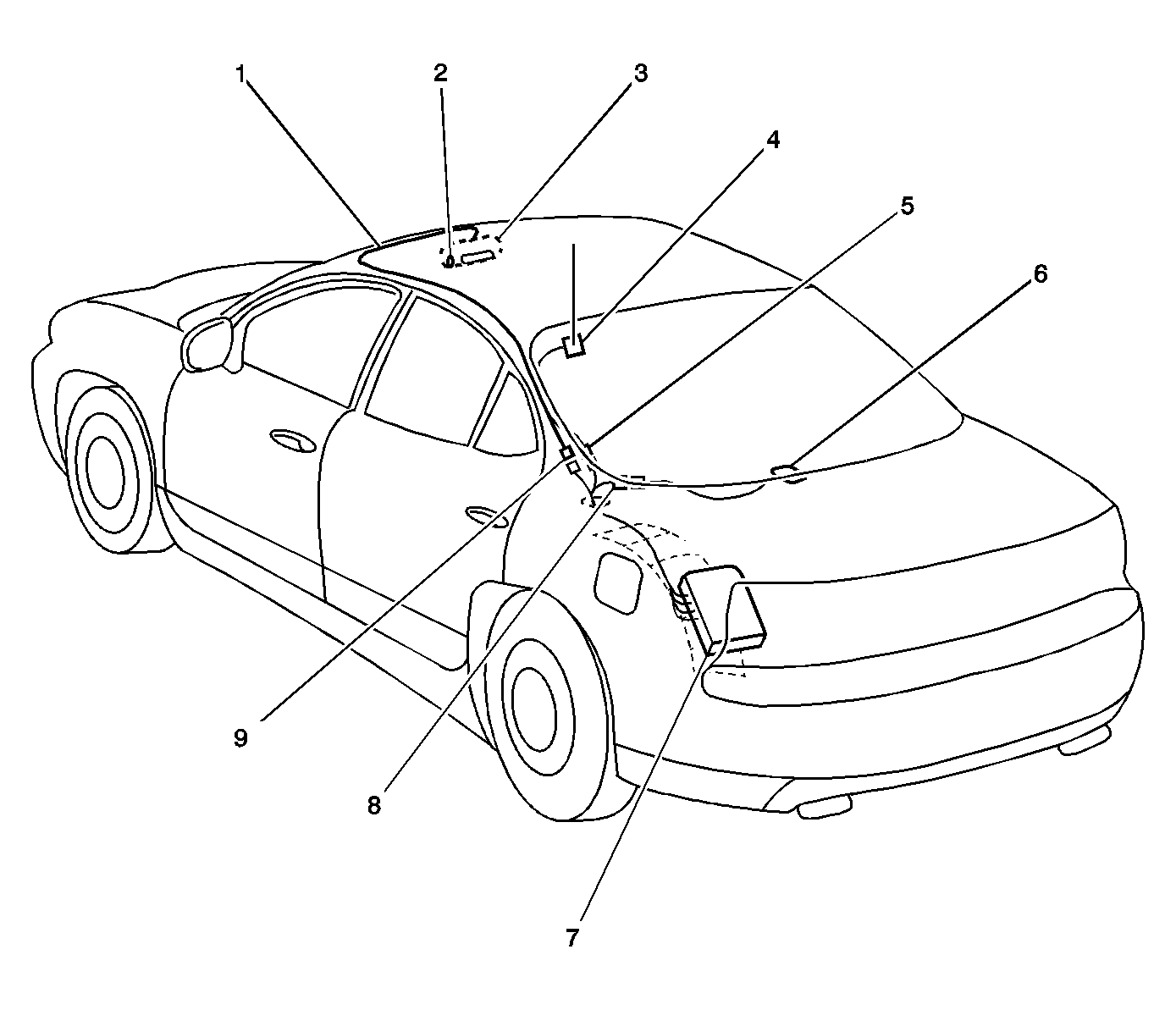

Fig 1: OnStar Subsystem

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Roof Harness
2	OnStar Button Assembly
3	Inside Rearview Mirror
4	Cellular Antenna
5	C393
6	Navigation Antenna
7	Vehicle Communication Interface Module (VCIM)
8	C395
9	C392

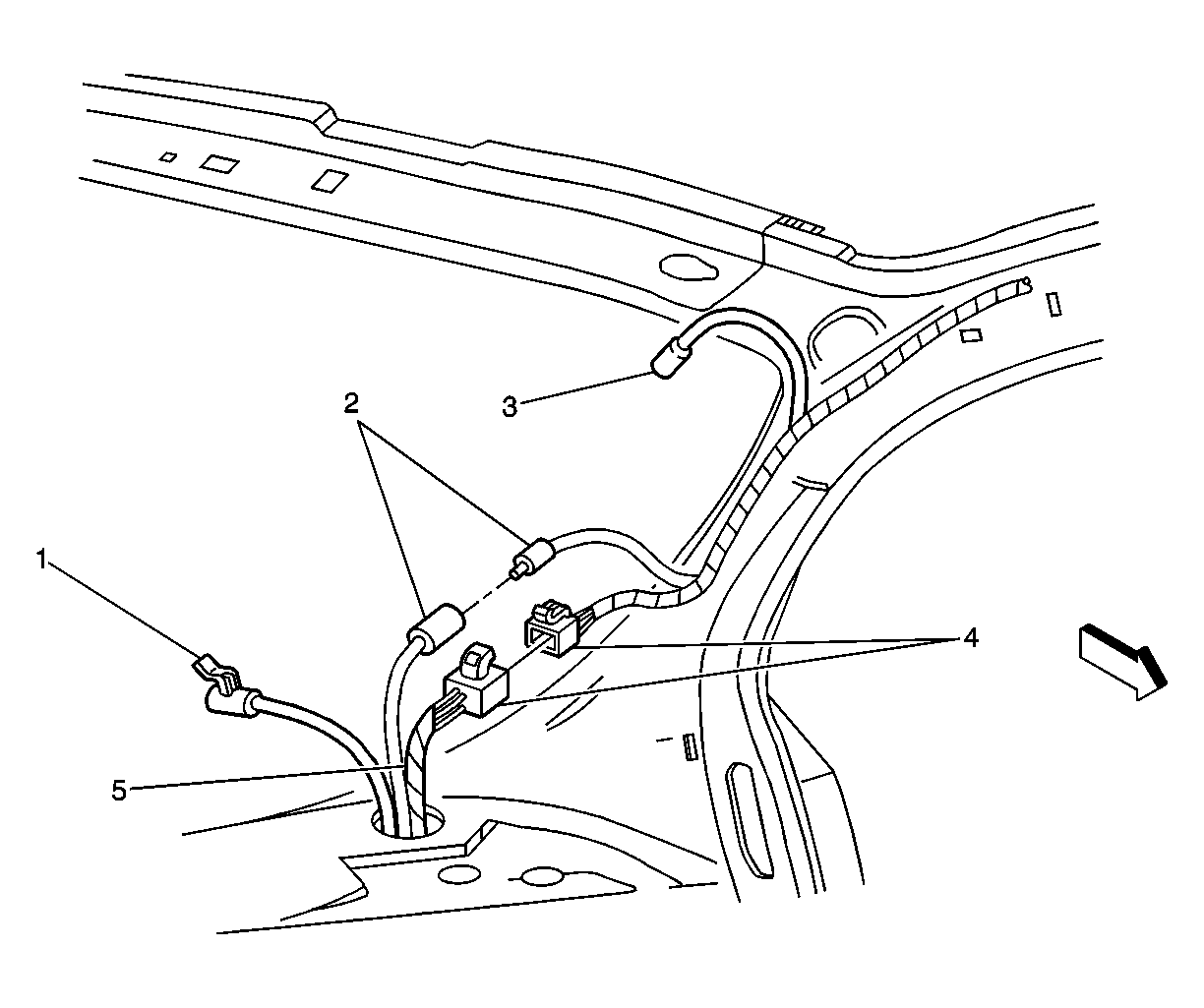

Fig 2: Above Left Side of Package Shelf

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C395
2	C393
3	Cellular Antenna Coax Connector
4	C392
5	Main Body Wiring Harness

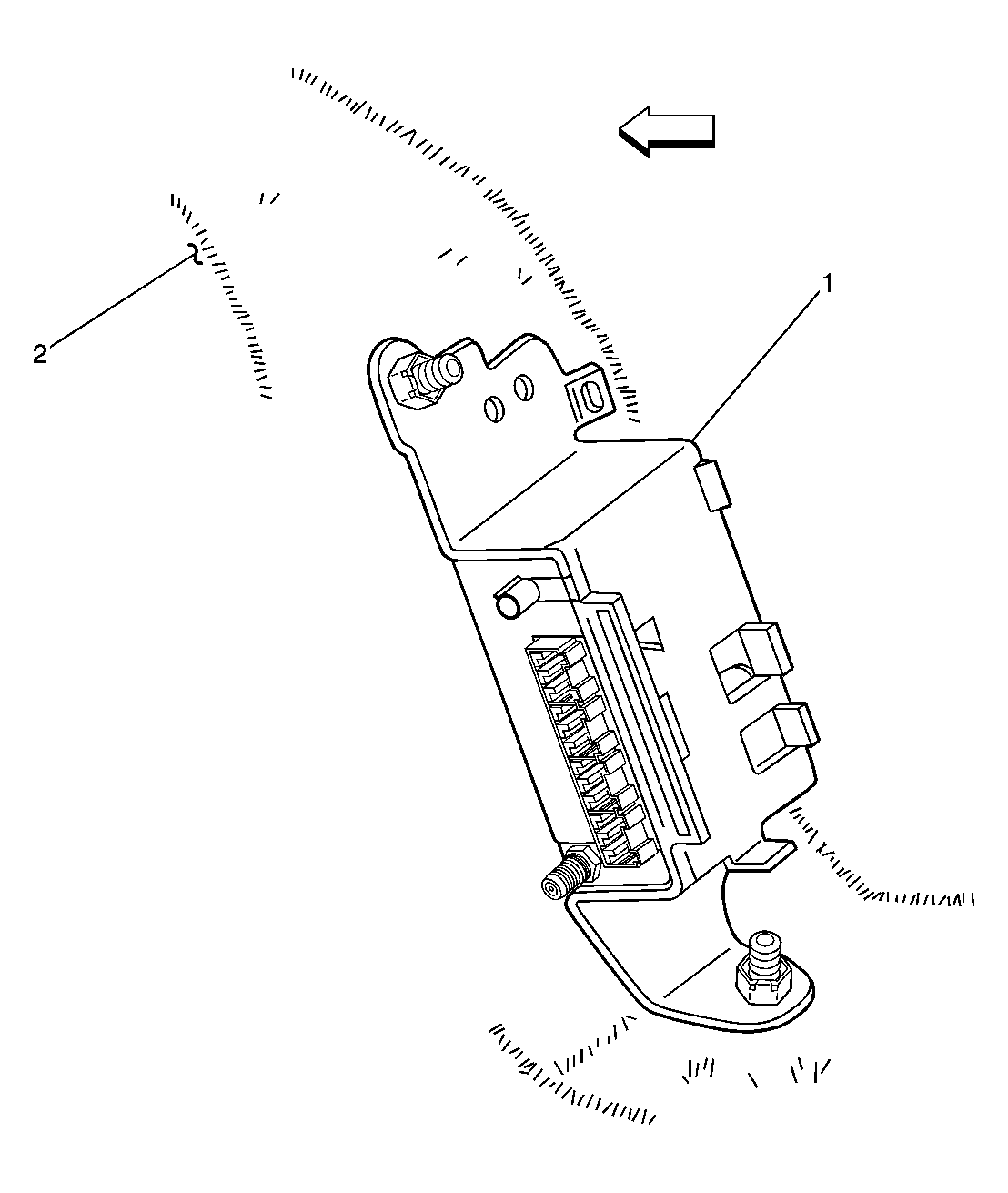

Fig 3: Vehicle Communication Interface Module (VCIM), Rear of Left Rear Wheelhouse

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Vehicle Communication Interface Module (VCIM)
2	Wheelhouse-LR
