Body Control System Component Views
Body Control System Component Views

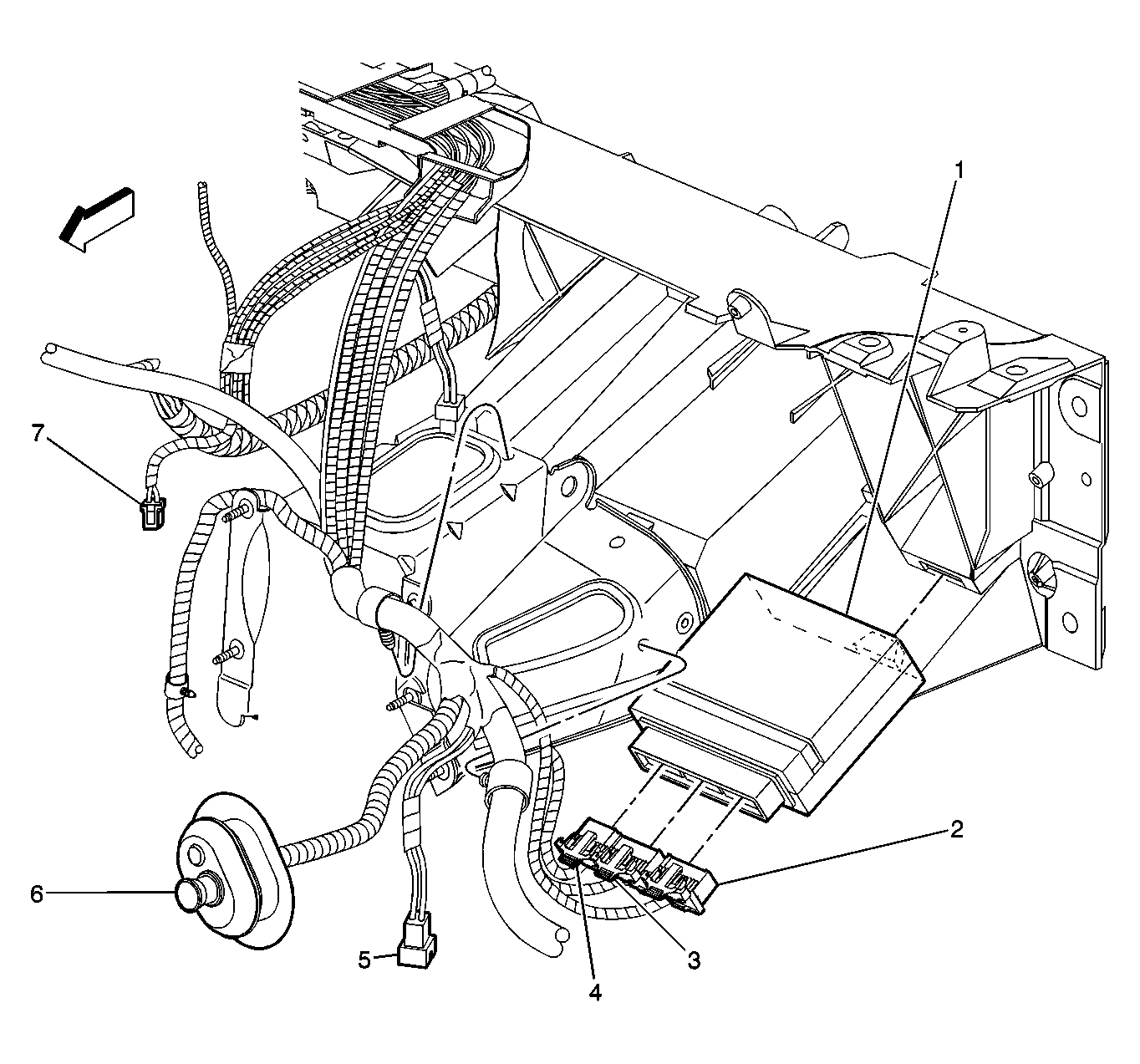

Fig 1: Component Views - Behind Left Side of Instrument Panel
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Body Control Module (BCM)
2
Body Control Module Connector C3
3
Body Control Module Connector C2
4
Body Control Module Connector C1
5
Headlamp Switch Connector
6
P101
7
Remote Control Door Lock Receiver (RCDLR) Connector
