Installation Procedure

WARNING: This page is about a different car, the 2008 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

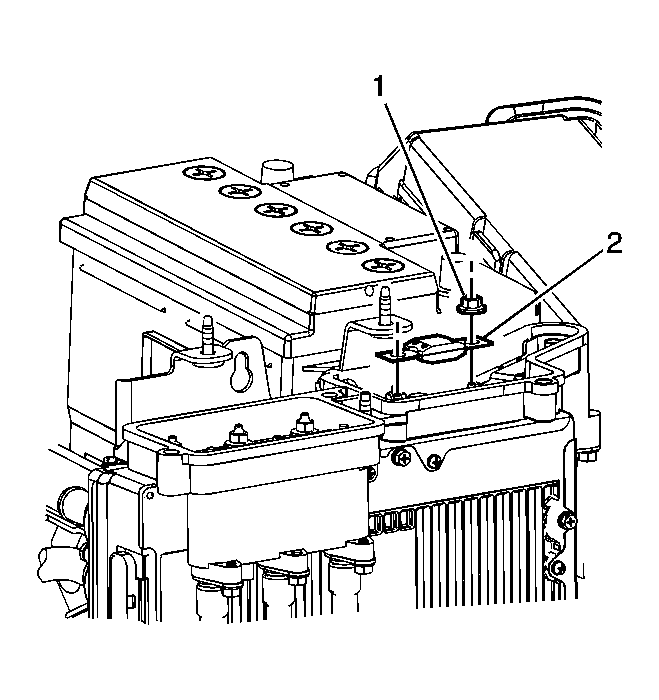

Fig 1: View Of Battery Positive Cable Fuse Nut

Courtesy of GENERAL MOTORS CORP.

Install the battery positive cable fuse (2) to the generator control module.
Loosely install the battery positive cable fuse nut (1).

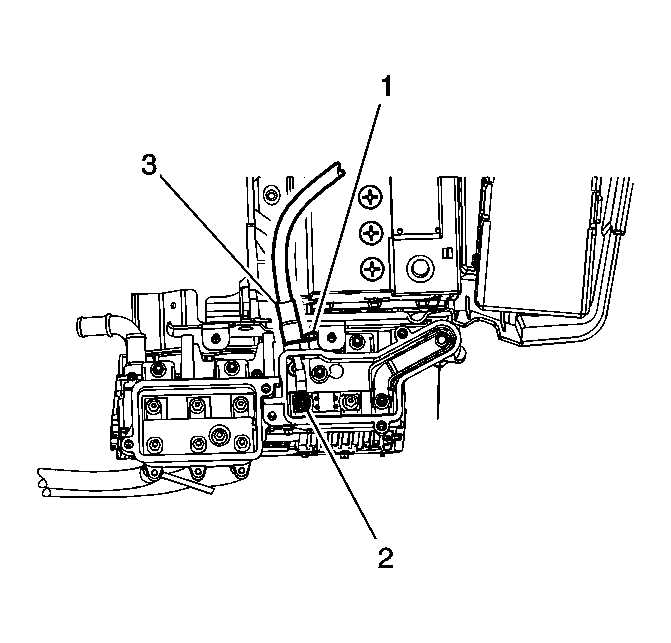

Fig 2: View Of Battery Positive Cable Extension Cable Bolt

Courtesy of GENERAL MOTORS CORP.

Carefully install the extension cable to the lug.
Install the battery positive cable extension cable nut (2) to the generator control module.

NOTE: Refer to Fastener Notice .

Tighten the fuse and the battery positive cable extension cable nuts.
Tighten: Tighten the nuts to 10 N.m (89 lb in).

Fig 3: View Of Generator Control Module Cover & Integral Bolts

Courtesy of GENERAL MOTORS CORP.

Place the generator control module cover (2) on top of the generator control module and tighten the bolts (1).
Tighten: Tighten the bolts to 10 N.m (89 lb in).

Fig 4: View Of Generator Control Module Bracket Reinforcement Bolt & Nuts

Courtesy of GENERAL MOTORS CORP.

Install the generator control module bracket reinforcement (3).
Install the generator control module bracket reinforcement bolt (1) and nuts (2).
Tighten: Tighten the bolt/nuts to 10 N.m (89 lb in).

Fig 5: Identifying Battery Positive Cable Fuse

Courtesy of GENERAL MOTORS CORP.

Connect the 2 engine wiring harness electrical connectors (2) to the generator control module.
Install the 2 CPA retainers (3).
Connect the hybrid battery. Refer to Hybrid Battery Service Disconnect/Connect .
