Torque Converter Assembly Removal

CAUTION: The torque converter weighs approximately 65 lbs. Personal injury may result if you lift the torque converter improperly.
  1. Remove the torque converter assembly (1).

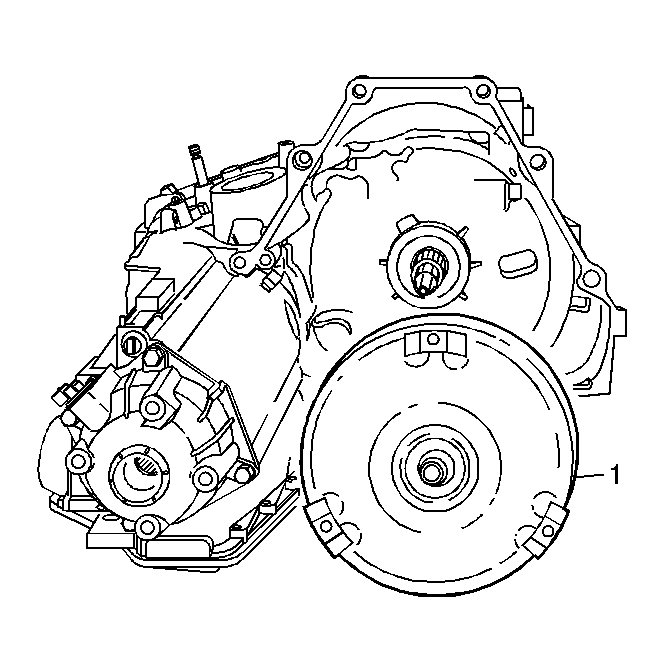

    Fig 1: View Of Torque Converter Assembly
    GM47958Courtesy of GENERAL MOTORS CORP.

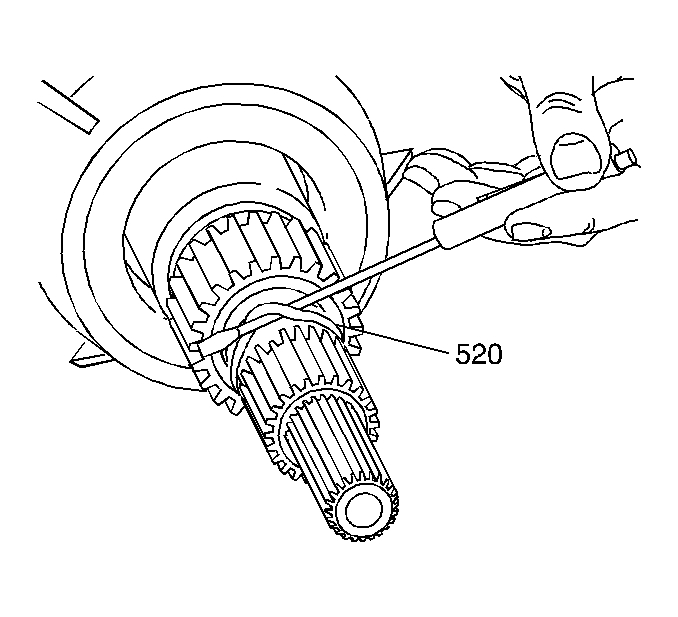

    2. Fig 2: Identifying Turbine Shaft O-Ring Seal
    GM10484Courtesy of GENERAL MOTORS CORP.
  2. Remove the turbine shaft O-ring seal (520).
