Engine Splash Shield Replacement
WARNING: This page is about a different car, the 2010 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

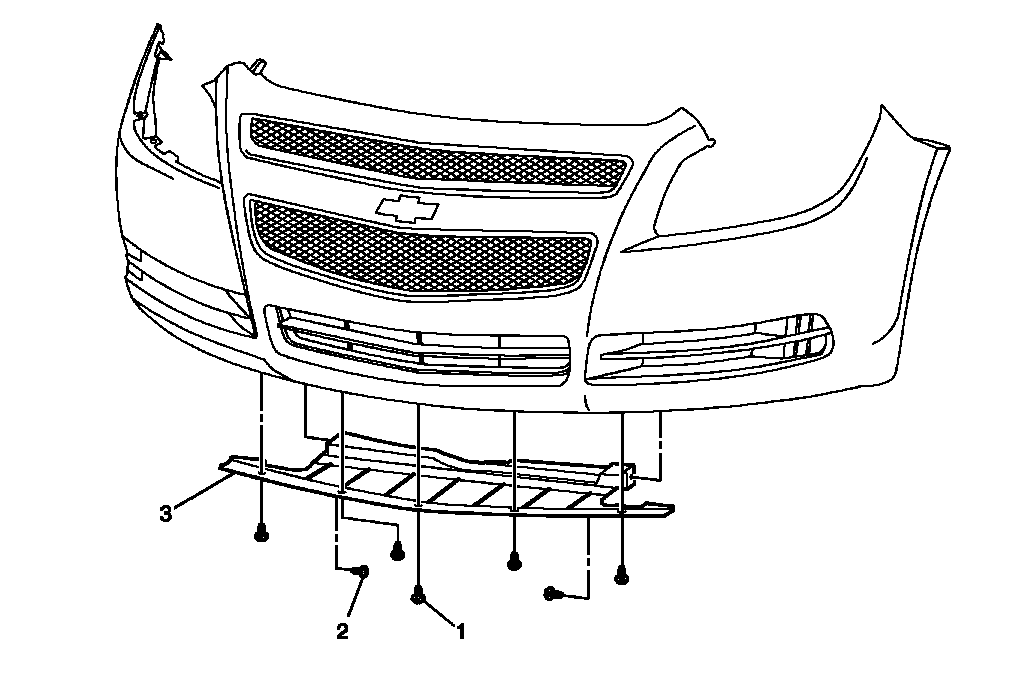

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the radiator air lower deflector. Refer to Radiator Air Lower Deflector Replacement . |
|
| 1 | Engine Splash Shield Screw (Qty: 5)
CAUTION:
Refer to Fastener Caution
.
Tighten: 2 N.m (18 lb in) |
| 2 | Engine Splash Shield Plastic Retainer (Qty: 2) |
| 3 | Engine Splash Shield |
