Cruise Control Schematics

WARNING: This page is about a different car, the 2008 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

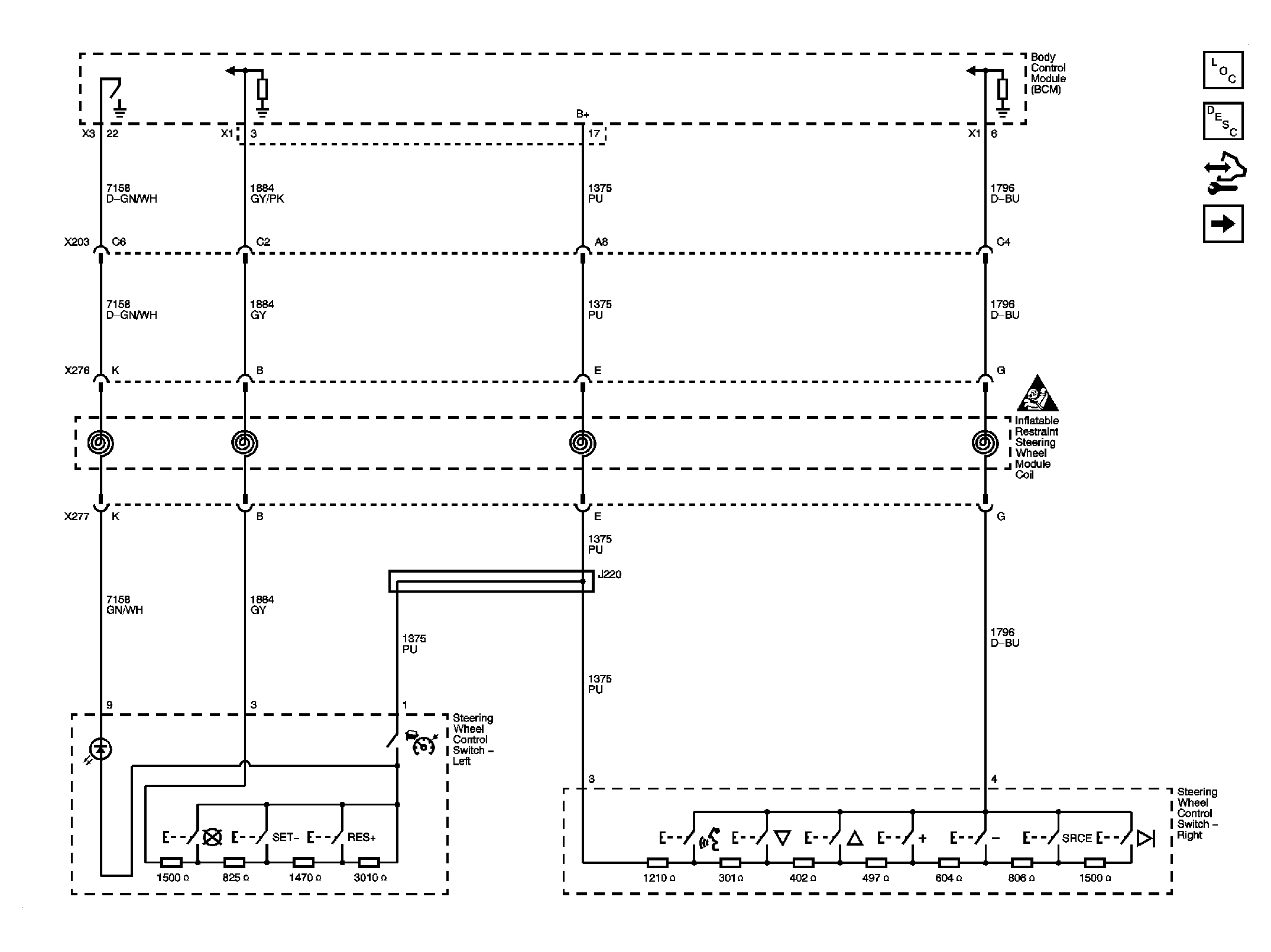

Fig 1: ON/OFF Switch
GM1886411Courtesy of GENERAL MOTORS CORP.
Fig 2: Indicators
GM1886416Courtesy of GENERAL MOTORS CORP.
