Sunroof Switch Replacement

WARNING: This page is about a different car, the 2008 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

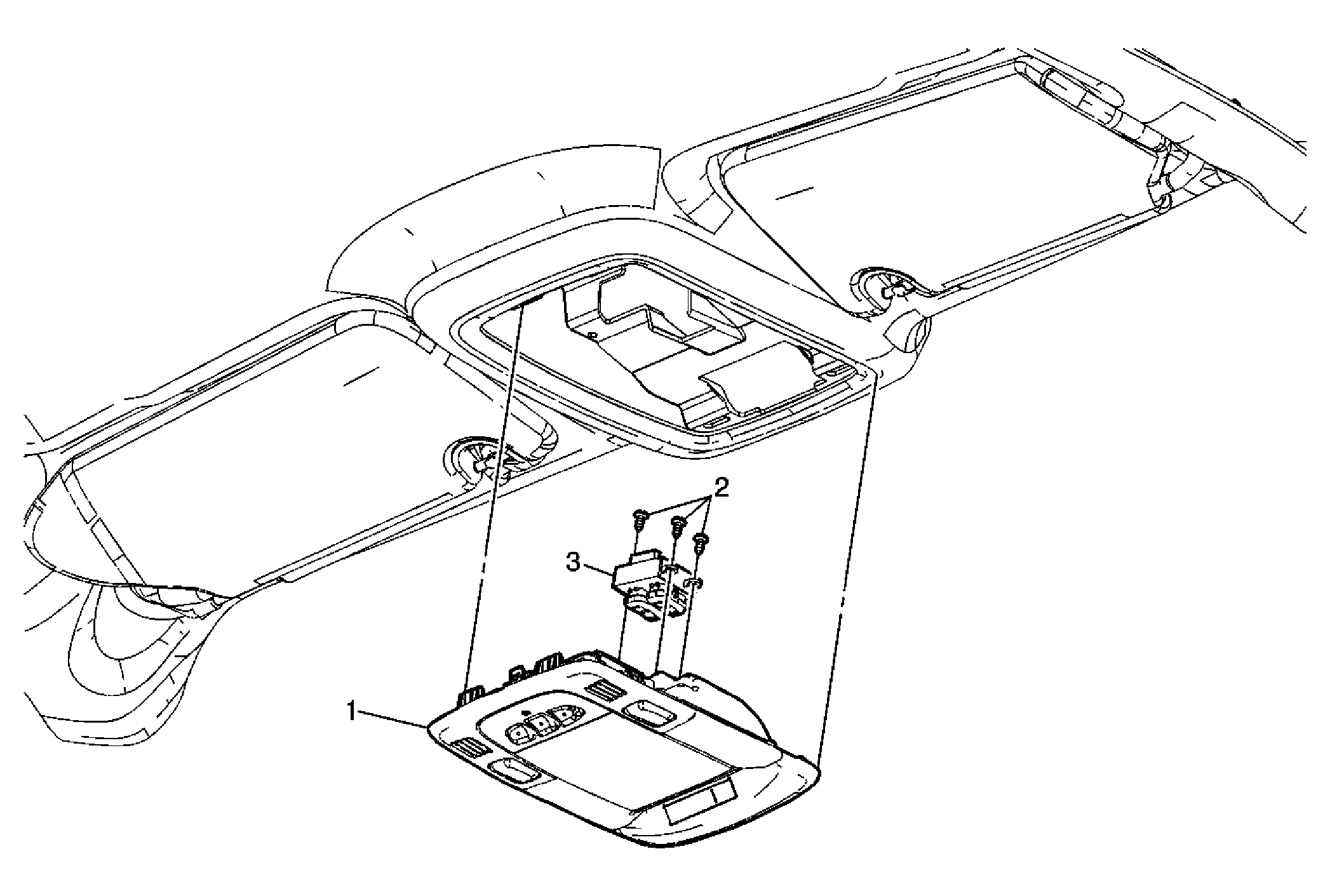

Fig 1: View Of Overhead Console, Sunroof Switch Assembly & Screws

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Overhead Console Assembly Refer to Roof Console Replacement .
2	Sunroof Switch Screw (Qty: 3) Tighten: 2 N.m (18 lb in)
3	Sunroof Switch Assembly Tip: Disconnect the electrical connector.
