Radiator Support Bracket Replacement (LNF)

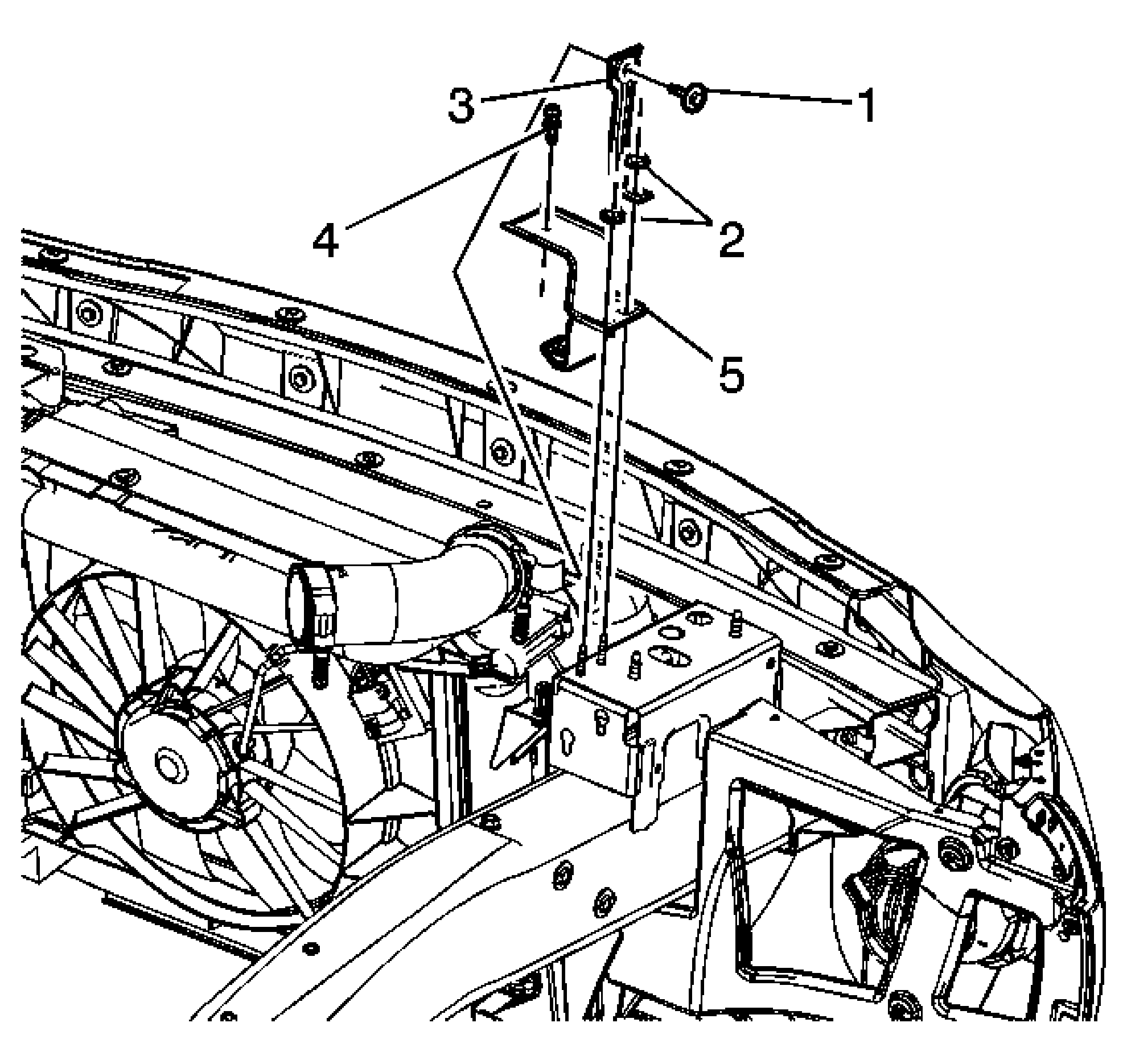

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement
. |
|
| 1 | Charge Air Cooler Pipe Bolt Tighten: 22 N.m (16 lb ft) |
| 2 | Radiator Upper Bracket Nut (Qty: 2) Tighten: 9 N.m (80 lb in) |
| 3 | Charge Air Cooler Pipe Rear Bracket |
| 4 | Air Cleaner Stud Tighten: 10 N.m (89 lb in) |
| 5 | Radiator Upper Bracket Assembly |
