Wiper Transmission Replacement

WARNING: This page is about a different car, the 2007 Saturn Sky. However, it is still accessible from the selected car via links, so may be relevant.

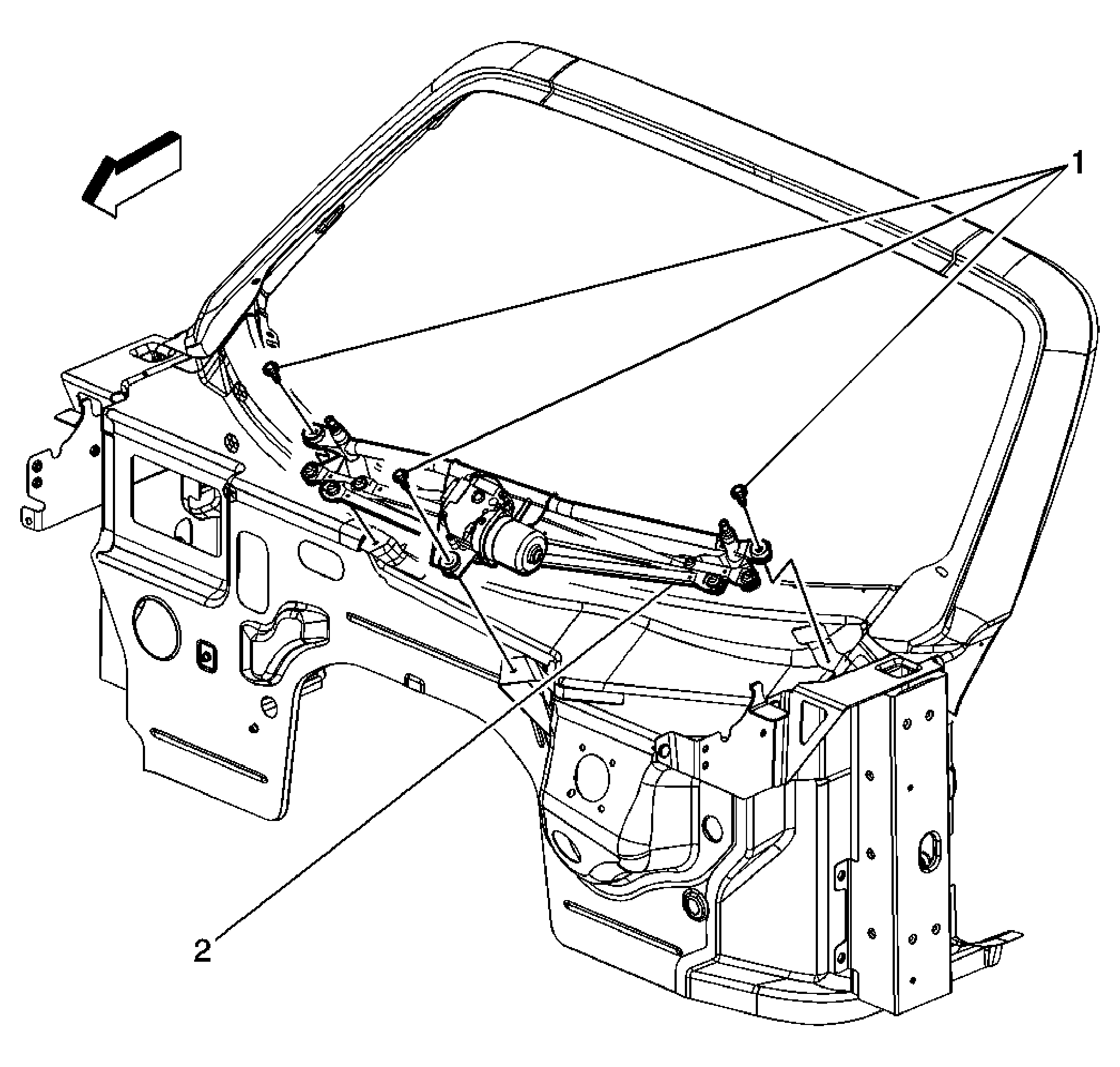

Fig 1: Wiper Transmission

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Open the hood. Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement . Disengage the connector positive assurance (CPA) clip from the wiper motor electrical connector. Disconnect the wiper motor electrical connector from the wiper motor.
1	Windshield Washer System Module Bolt (Qty: 3) NOTE: Refer to Fastener Notice . Tip: Install the driver side bolt first. Install the passenger side bolt second. Install the center bolt third. Tighten: 9 N.m (80 lb in)
2	Windshield Washer System Module Assembly

Callout

Component Name

Preliminary Procedures

Open the hood.
Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement .
Disengage the connector positive assurance (CPA) clip from the wiper motor electrical connector.
Disconnect the wiper motor electrical connector from the wiper motor.

Windshield Washer System Module Bolt (Qty: 3)

NOTE: Refer to Fastener Notice .

Tip:

Install the driver side bolt first.
Install the passenger side bolt second.
Install the center bolt third.

Tighten: 9 N.m (80 lb in)

Windshield Washer System Module Assembly
