Washer Pump Replacement

WARNING: This page is about a different car, the 2007 Saturn Sky. However, it is still accessible from the selected car via links, so may be relevant.

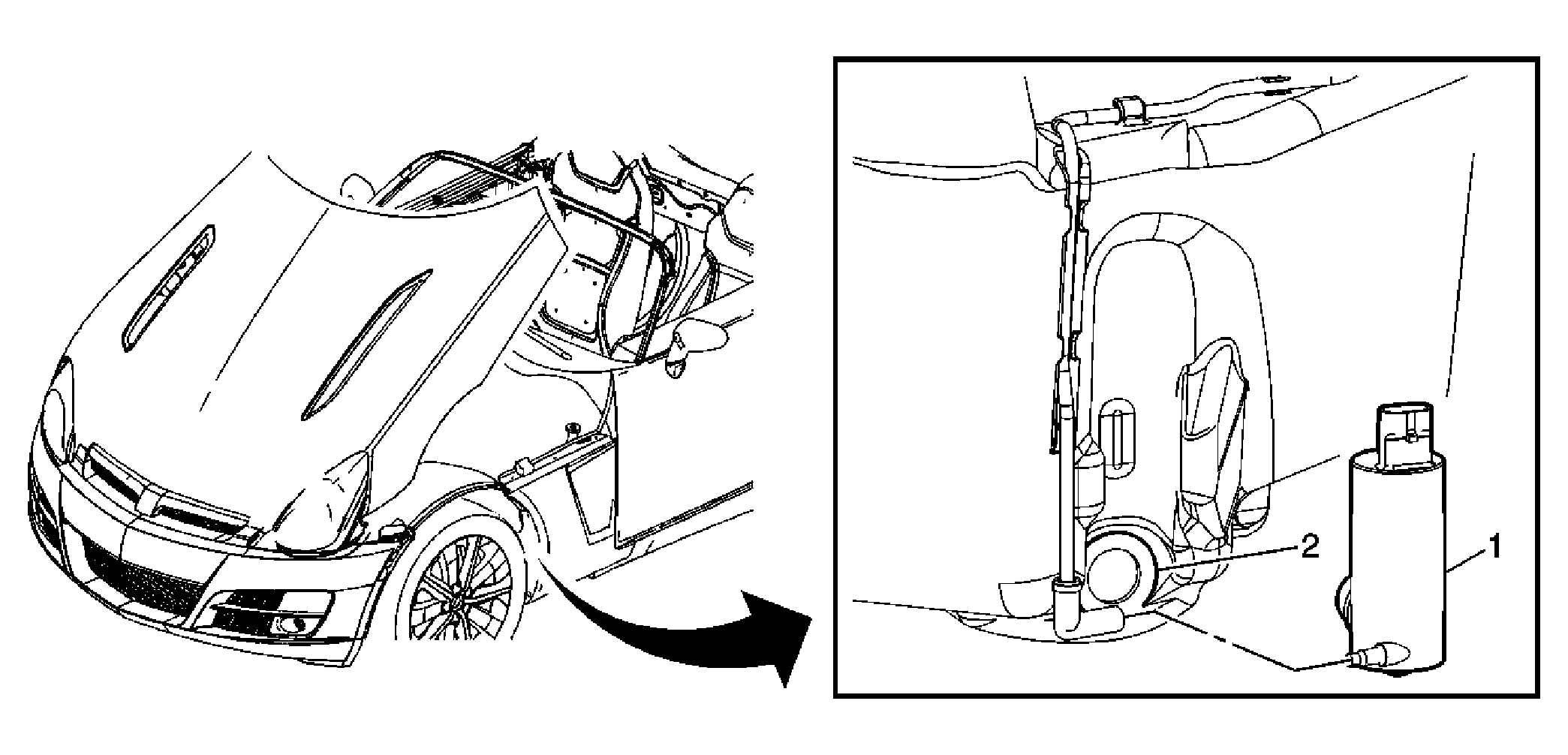

Fig 1: Washer Pump

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the LF wheelhouse liner. Refer to Front Wheelhouse Liner Replacement (Turbo) or Front Wheelhouse Liner Replacement (Base) . Drain the washer solvent into a suitable container. Disconnect the washer pump electrical connector. Disconnect the washer hose from the washer pump spout.
1	Washer Pump Kit with Seal Tip: Use a flat-bladed tool in order to pry the washer pump from the washer container.
2	Washer Pump Seal Tip: Discard the old washer pump seal.

Callout

Component Name

Preliminary Procedures

Remove the LF wheelhouse liner. Refer to Front Wheelhouse Liner Replacement (Turbo) or Front Wheelhouse Liner Replacement (Base) .
Drain the washer solvent into a suitable container.
Disconnect the washer pump electrical connector.
Disconnect the washer hose from the washer pump spout.

Washer Pump Kit with Seal
Tip: Use a flat-bladed tool in order to pry the washer pump from the washer container.

Washer Pump Seal
Tip: Discard the old washer pump seal.
