Interior Lights Schematics

WARNING: This page is about a different car, the 2007 Saturn Sky. However, it is still accessible from the selected car via links, so may be relevant.

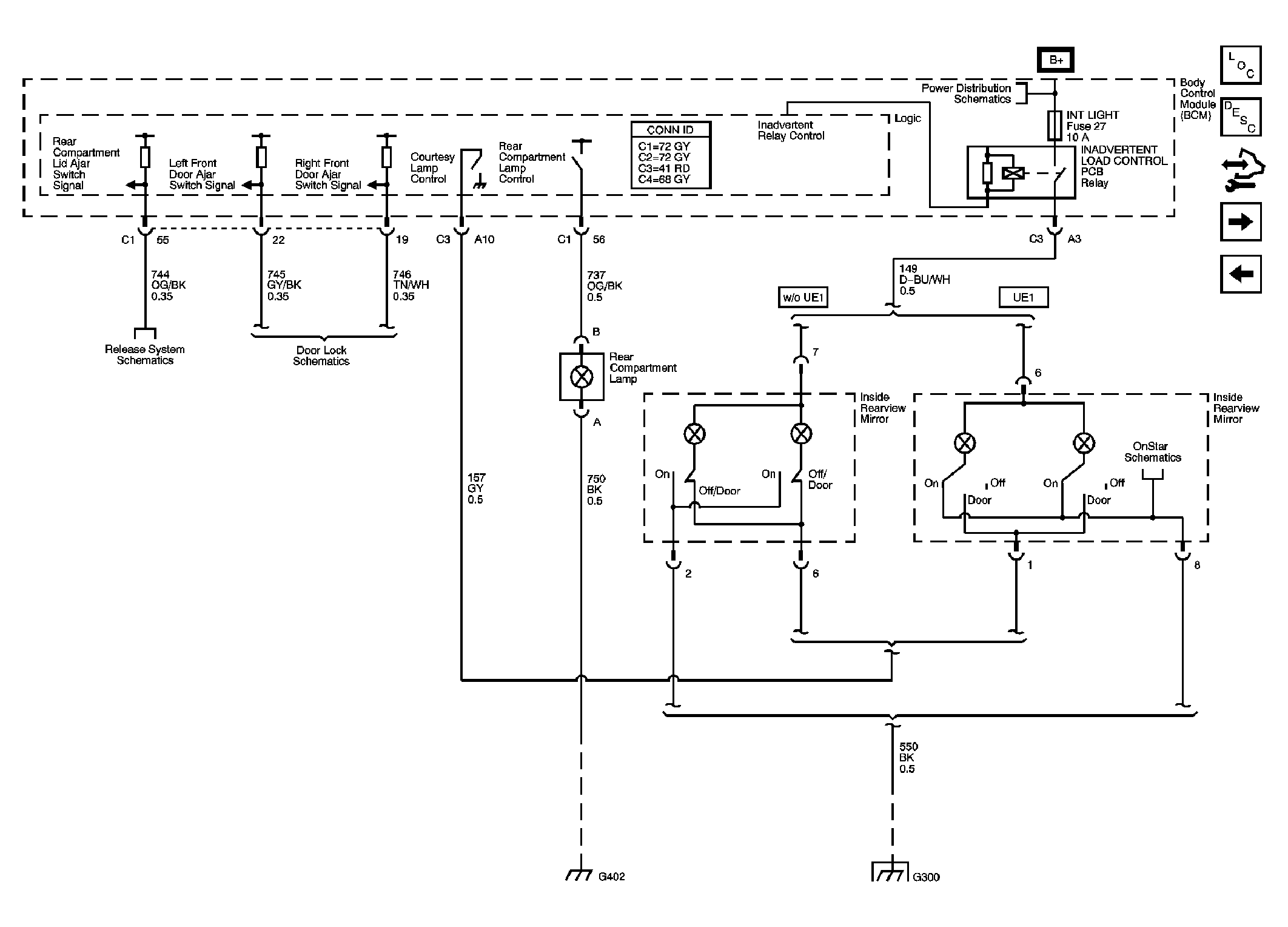

Fig 1: Interior Lights Schematic
GM1742932Courtesy of GENERAL MOTORS CORP.
