Backup Lamp Bulb Replacement
WARNING: This page is about a different car, the 2007 Saturn Sky. However, it is still accessible from the selected car via links, so may be relevant.
Backup Lamp Bulb Replacement

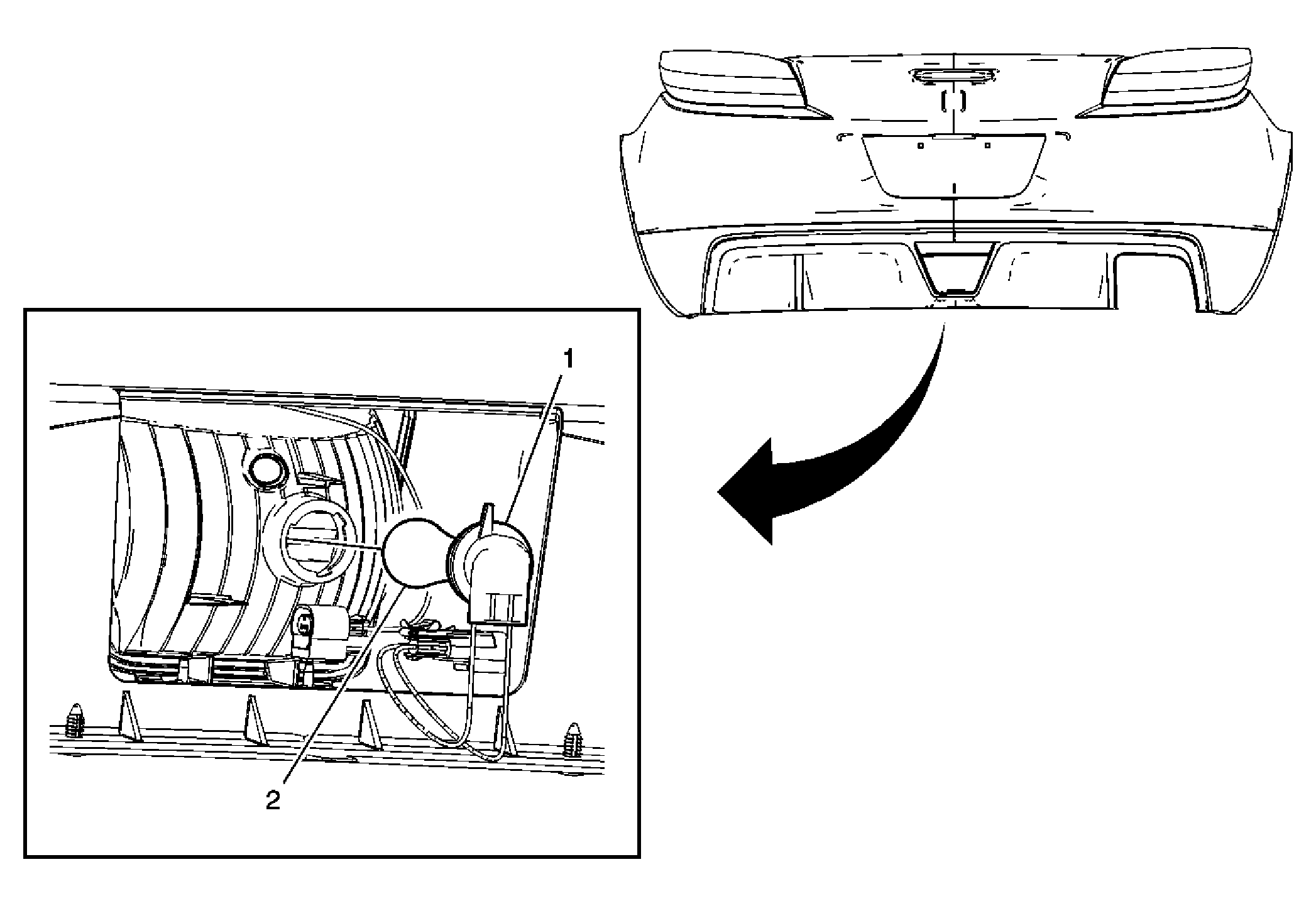

| Callout | Component Name |
|---|---|
| Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications . Preliminary Procedure: Reach under the rear bumper valance center panel and twist the lamp socket counterclockwise. |
|
| 1 | Back Up Lamp Assembly Socket |
| 2 | Back Up Lamp Assembly Bulb |
