Installation Procedure

WARNING: This page is about a different car, the 2007 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

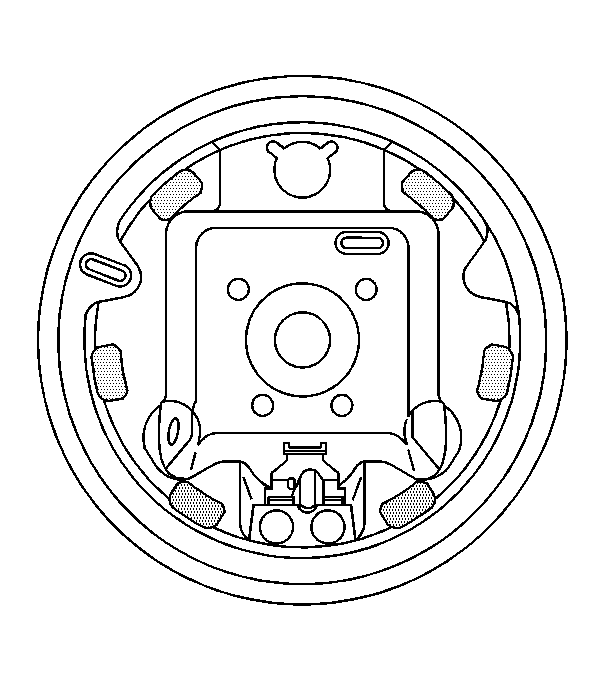

Fig 1: Identifying Brake Shoe Contact Surfaces Of Brake Backing Plate

Courtesy of GENERAL MOTORS CORP.

Apply a thin, light coat of high temperature silicone brake lubricant to the contact surfaces of the right and left brake backing plates.

Fig 2: Identifying Brake Shoe Spanner & Spring Remover

Courtesy of GENERAL MOTORS CORP.

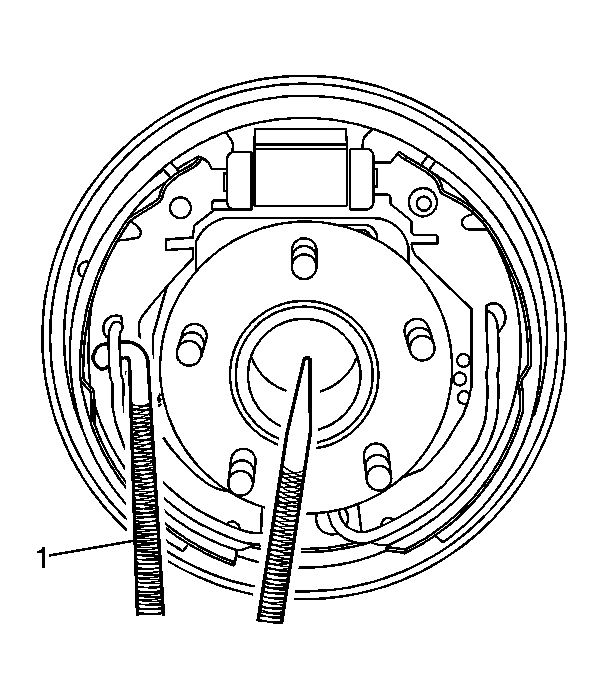

Position the hook end (1) of the J 38400 under the universal spring and lightly pull the universal spring end out while installing the trailing brake shoe. See Special Tools . Ensure that the universal spring properly engages the brake shoe web hole.

Fig 3: Identifying Special Tools - J38400

Courtesy of GENERAL MOTORS CORP.

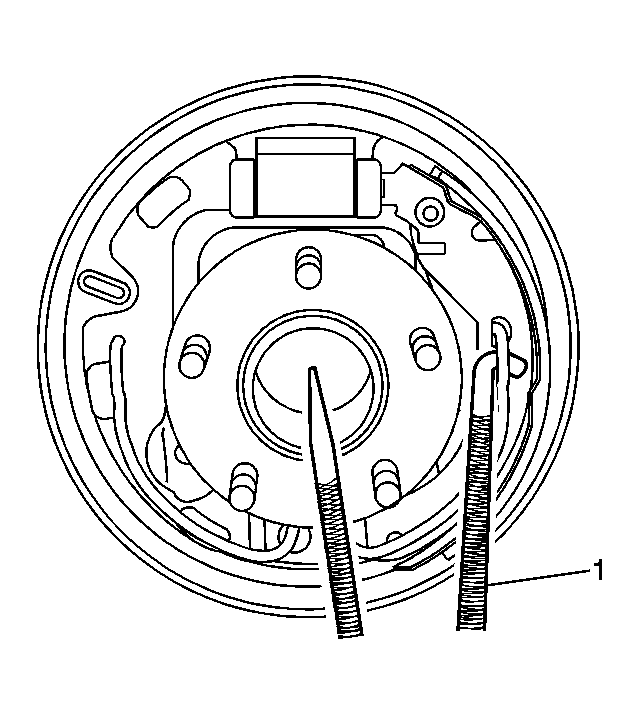

Position the hook end (1) of the J 38400 under the universal spring and lightly pull the universal spring end out while installing the trailing brake shoe. See Special Tools . Ensure that the universal spring properly engages the brake shoe web hole.
Install the park brake cable to the park brake lever on the brake shoe.

Fig 4: Removing/Installing Brake Shoe Adjuster Assembly Using Special Tool

Courtesy of GENERAL MOTORS CORP.

Use the J 38400 (1) to spread the top of the brake shoes to install the adjuster assembly (2). See Special Tools .

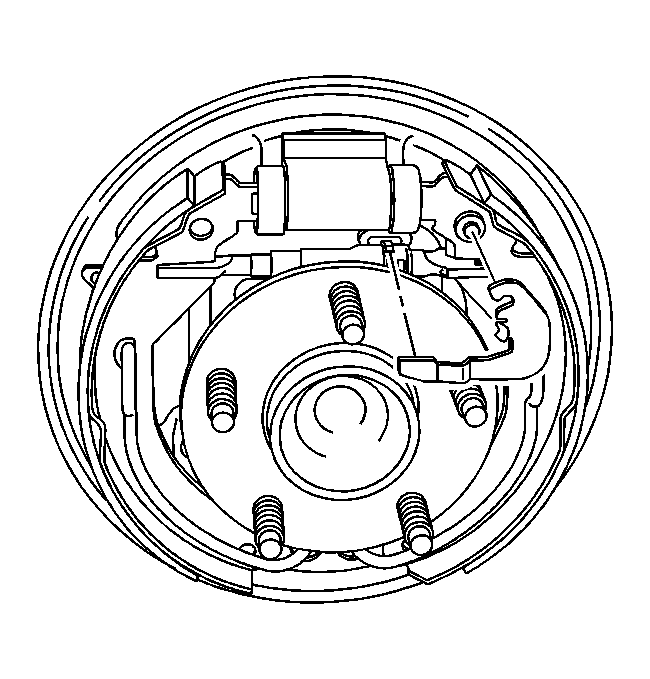

Fig 5: Identifying Brake Shoe Adjuster Actuator Lever

Courtesy of GENERAL MOTORS CORP.

Install the adjuster actuator lever to the pivot.

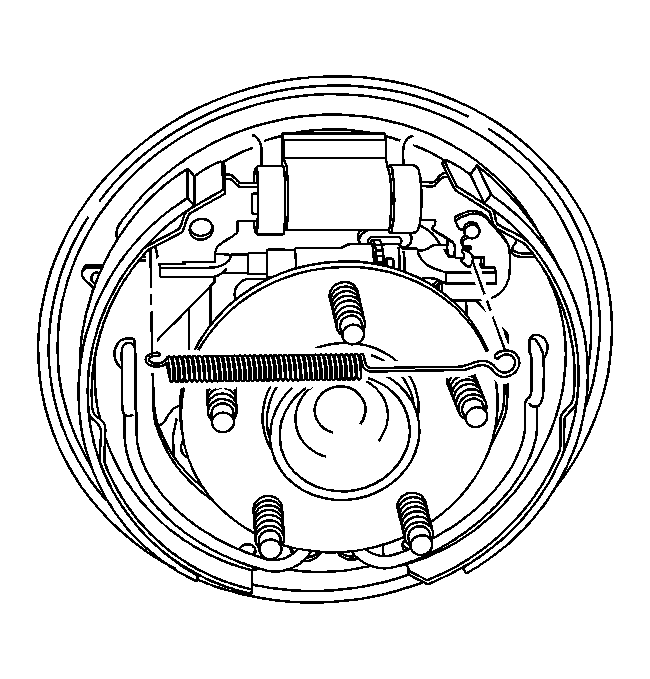

Fig 6: Identifying Brake Shoe Adjuster Spring

Courtesy of GENERAL MOTORS CORP.

Install the adjuster spring.
Adjust the drum brake system. Refer to Drum Brake Adjustment .

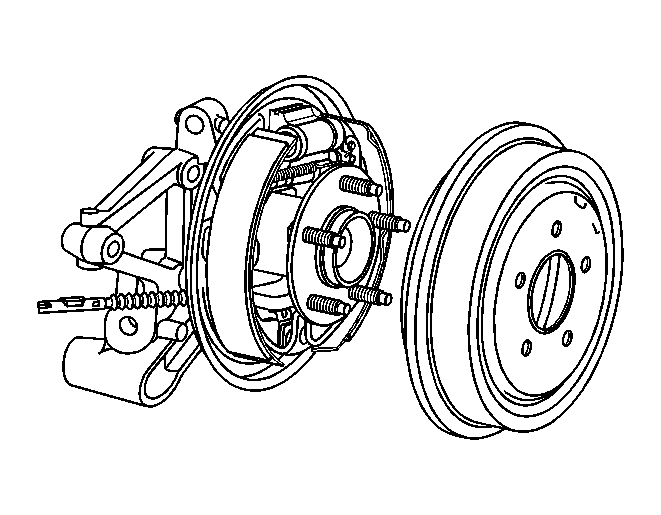

Fig 7: Identifying Brake Drum

Courtesy of GENERAL MOTORS CORP.

Install the brake drum. Refer to Brake Drum Replacement .
Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
Lower the vehicle.
