Front Seat Head Restraint Guide Replacement

WARNING: This page is about a different car, the 2006 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

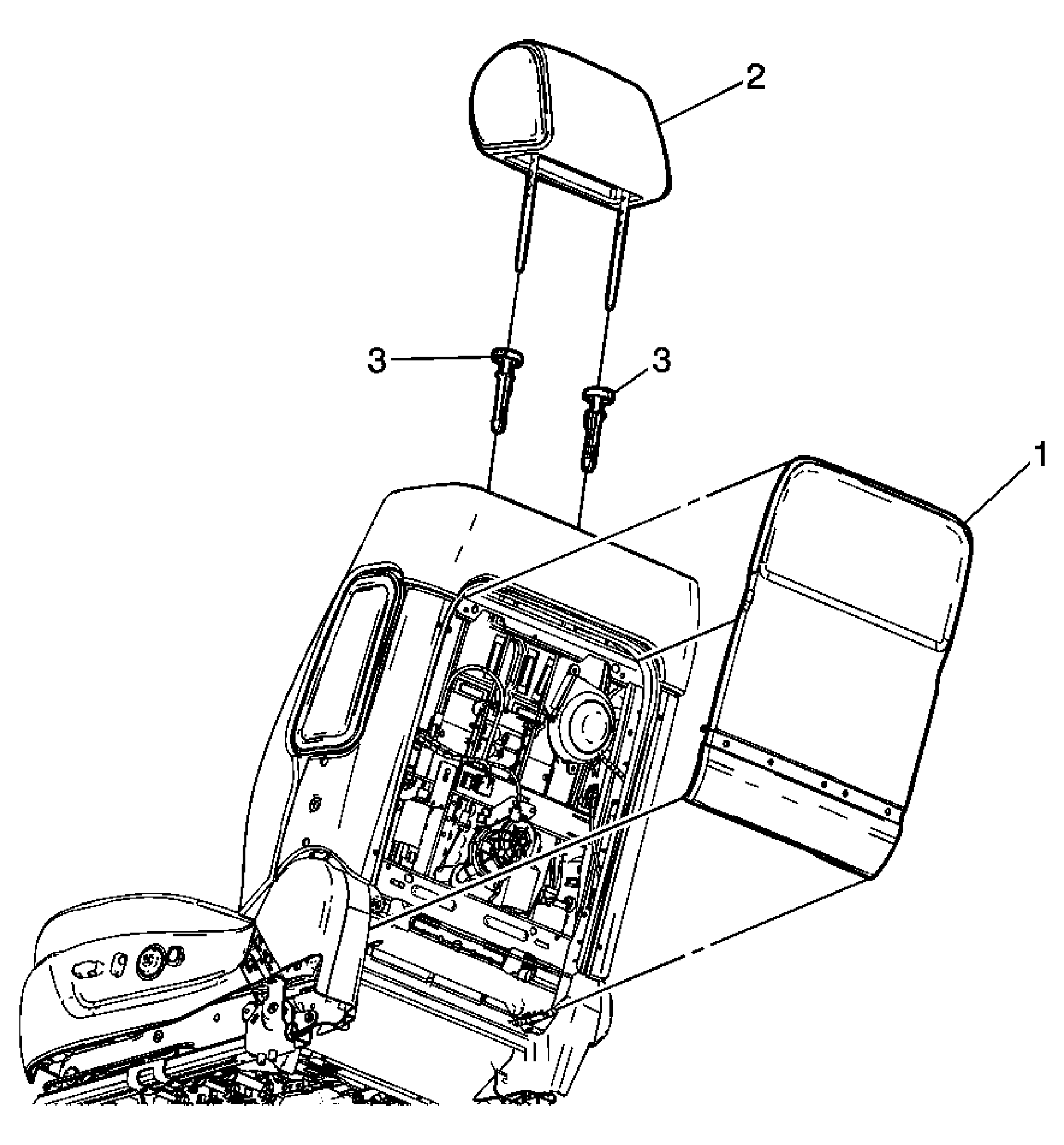

Fig 1: Removing/Installing Front Seat Head Restraint Guide

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Back Cushion Finish Panel Refer to Front Seat Back Panel Replacement .
2	Front Seat Head Restraint Refer to Front Seat Head Restraint Replacement .
3	Front Seat Head Restraint Guides Tip: Squeeze the bottom of the guides together and push upward to remove.
