Front Seat Back Trim Replacement

WARNING: This page is about a different car, the 2006 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

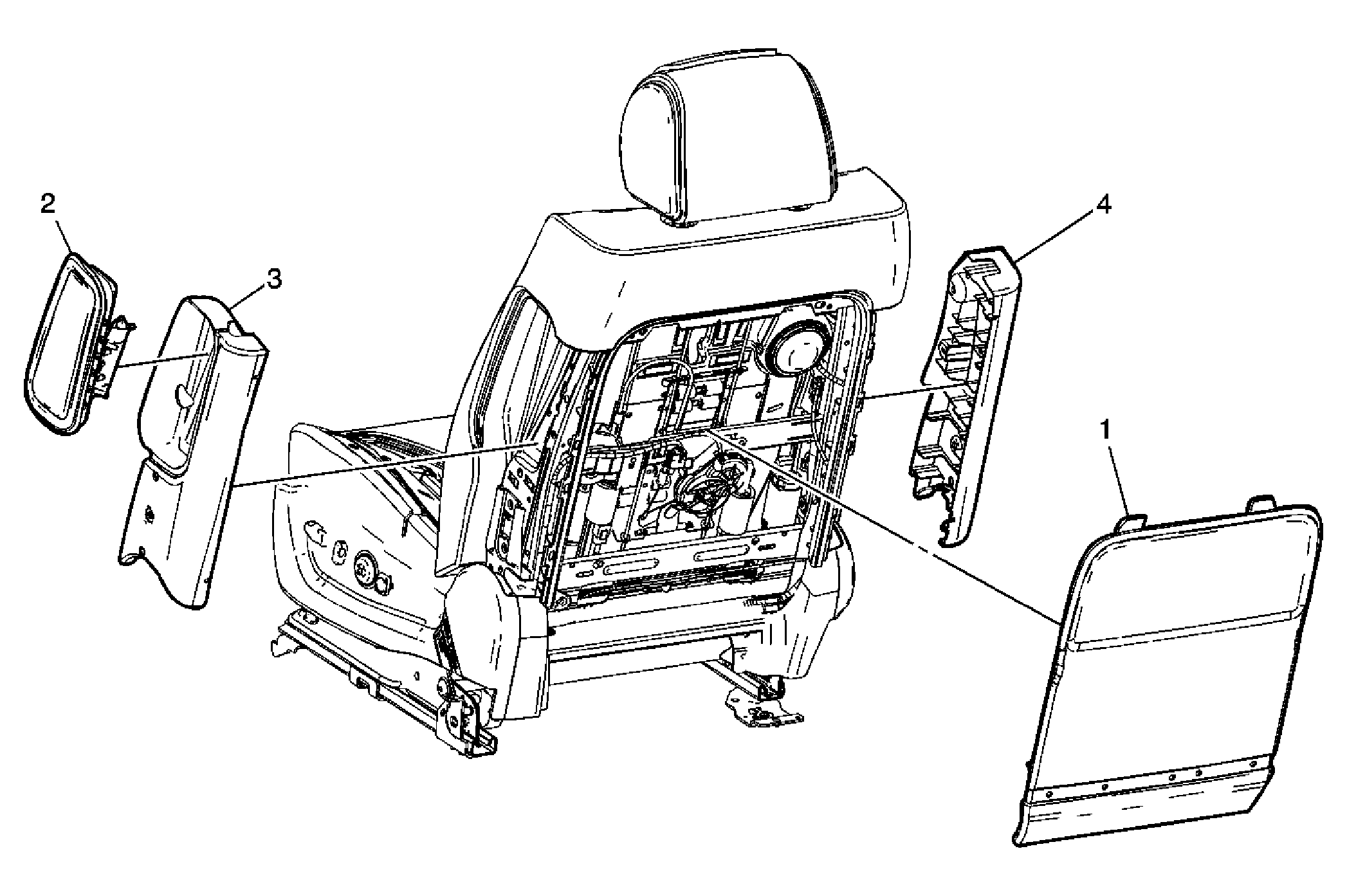

Fig 1: Identifying Front Seat Back Trim

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Disable the SIR system. Refer to SIR Disabling and Enabling and SIR Disabling and Enabling . Remove the seat back cushion cover and pad. Refer to Front Seat Back Cushion Cover and Cushion Pad Replacement .
1	Seat Back Cushion Finish Panel
2	Inflatable Restraint Front Seat Side Module Assembly Refer to Inflatable Restraint Side Impact Module Replacement - Front .
3	Seat Back Side Outer Cover
4	Seat Back Side Inner Cover
