Front Seat Armrest Replacement
WARNING: This page is about a different car, the 2006 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.
Front Seat Armrest Replacement

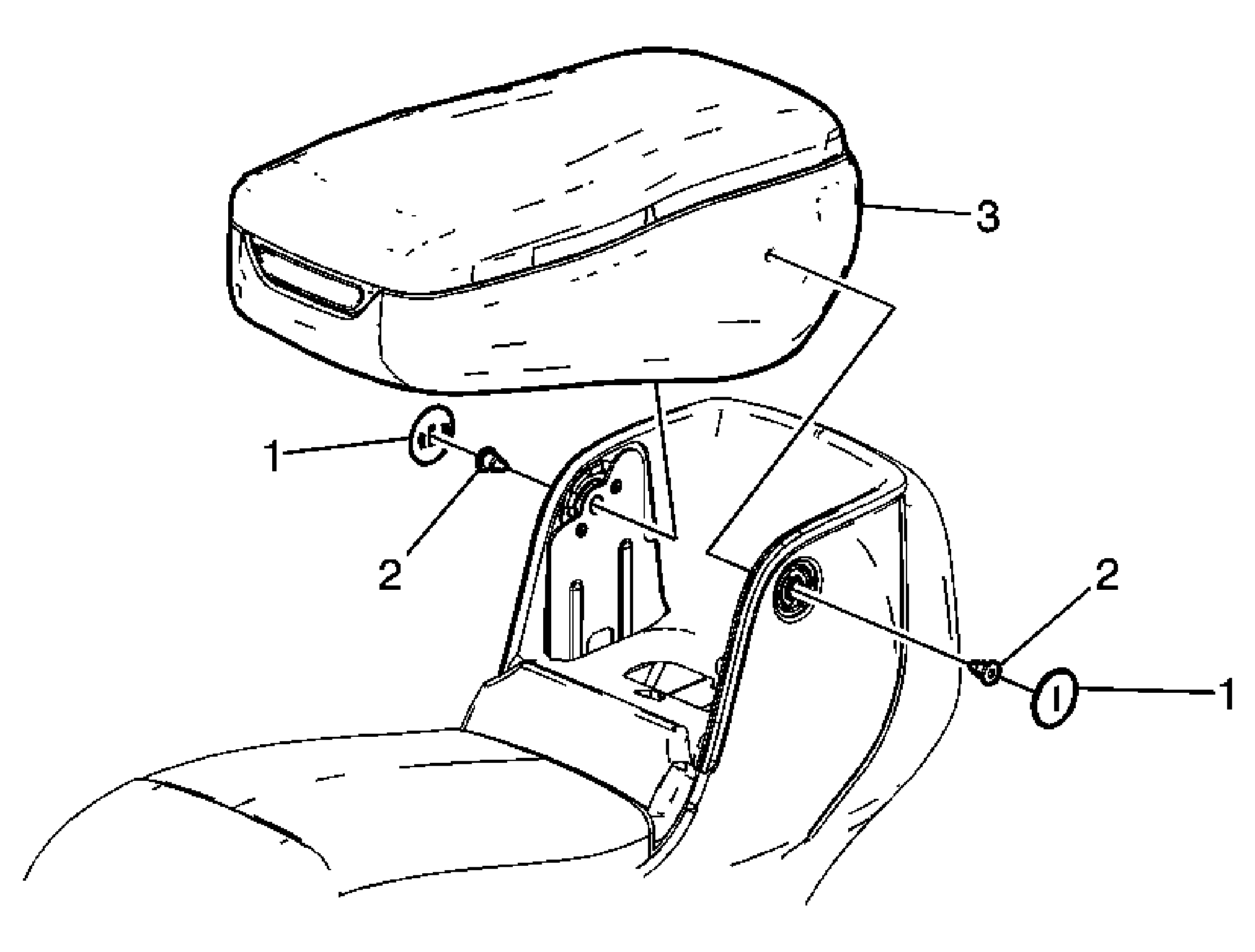

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Reposition seats as required. |
|
| 1 | Front Center Seat Armrest Bolt Cover (Qty: 2) |
| 2 | Front Center Seat Armrest Screw (Qty: 2)
NOTE:
Refer to Fastener Notice
.
Tighten: 3 N.m (25 lb in) |
| 3 | Front Center Seat Armrest Assembly |
