Installation Procedure

WARNING: This page is about a different car, the 2006 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

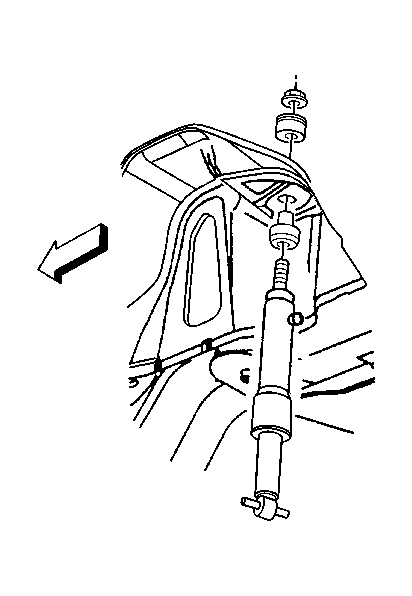

Fig 1: Removing/Installing Shock Absorber

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .

NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

Install the shock, reinforcement and the retaining nuts.
Tighten: Tighten the upper shock absorber retaining nuts to 25 N.m (18 lb ft).

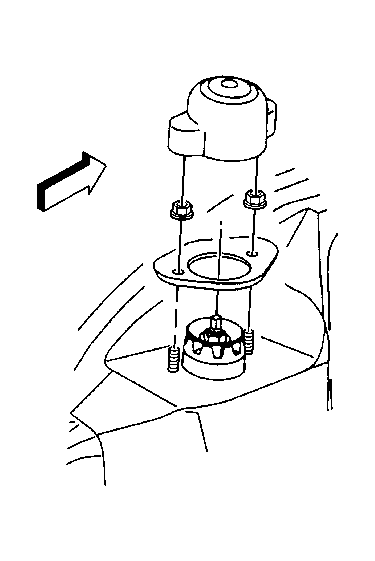

Fig 2: Removing/Installing Shock Absorber Upper Retaining Bolts

Courtesy of GENERAL MOTORS CORP.

Install the upper shock absorber cover.
Install the trunk trim.

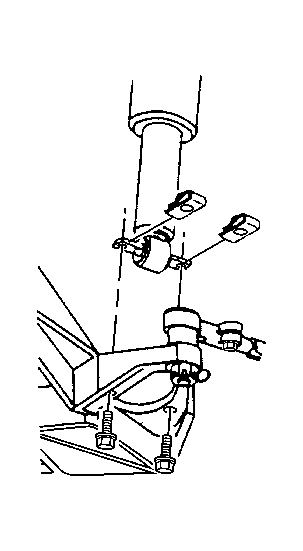

Fig 3: Removing/Installing Shock Absorber Lower Retaining Bolts

Courtesy of GENERAL MOTORS CORP.

Install the lower shock absorber retaining bolts.
Tighten: Tighten the lower shock absorber retaining bolts to 25 N.m (18 lb ft).
Connect the automatic level control air tube to the shock.
Install the tire and wheel. Refer to Tire and Wheel Removal and Installation .
Lower the vehicle.
