Door Lock/Indicator Schematics

WARNING: This page is about a different car, the 2006 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

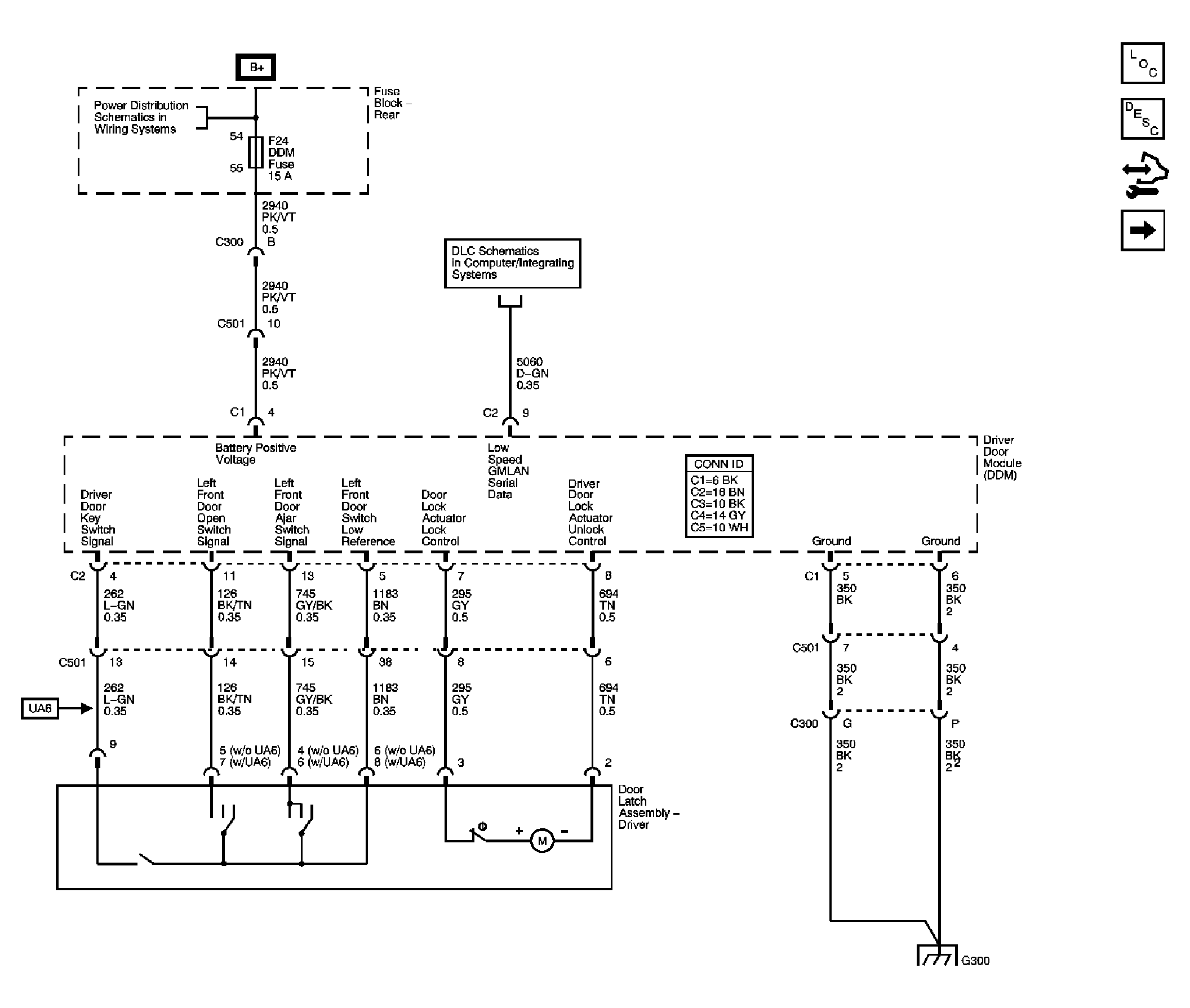

Fig 1: Driver Door Module Power & Ground Schematic

Courtesy of GENERAL MOTORS CORP.

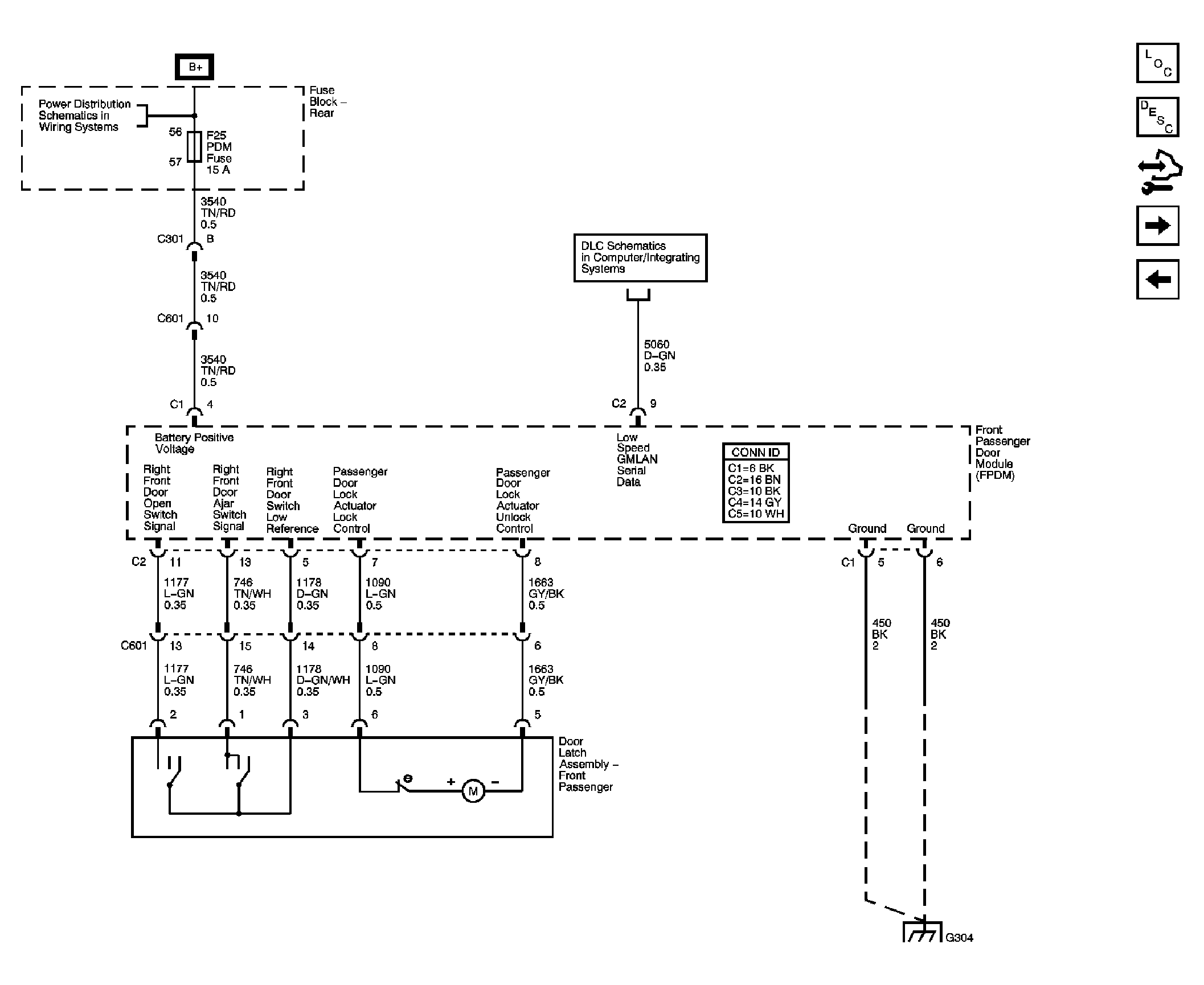

Fig 2: Front Passenger Door Module Power & Ground Schematic

Courtesy of GENERAL MOTORS CORP.

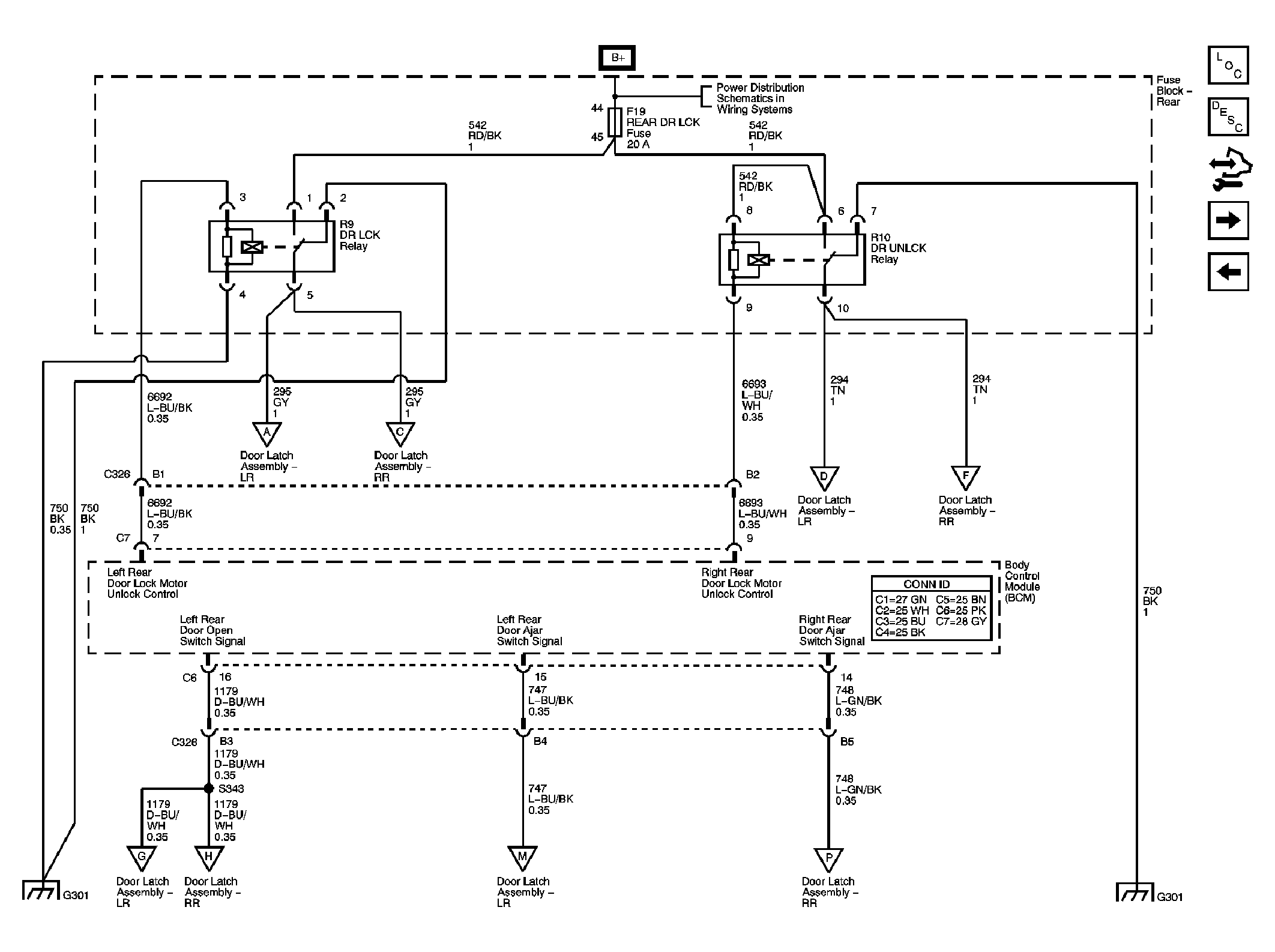

Fig 3: Door Lock, Unlock Relays Schematic

Courtesy of GENERAL MOTORS CORP.

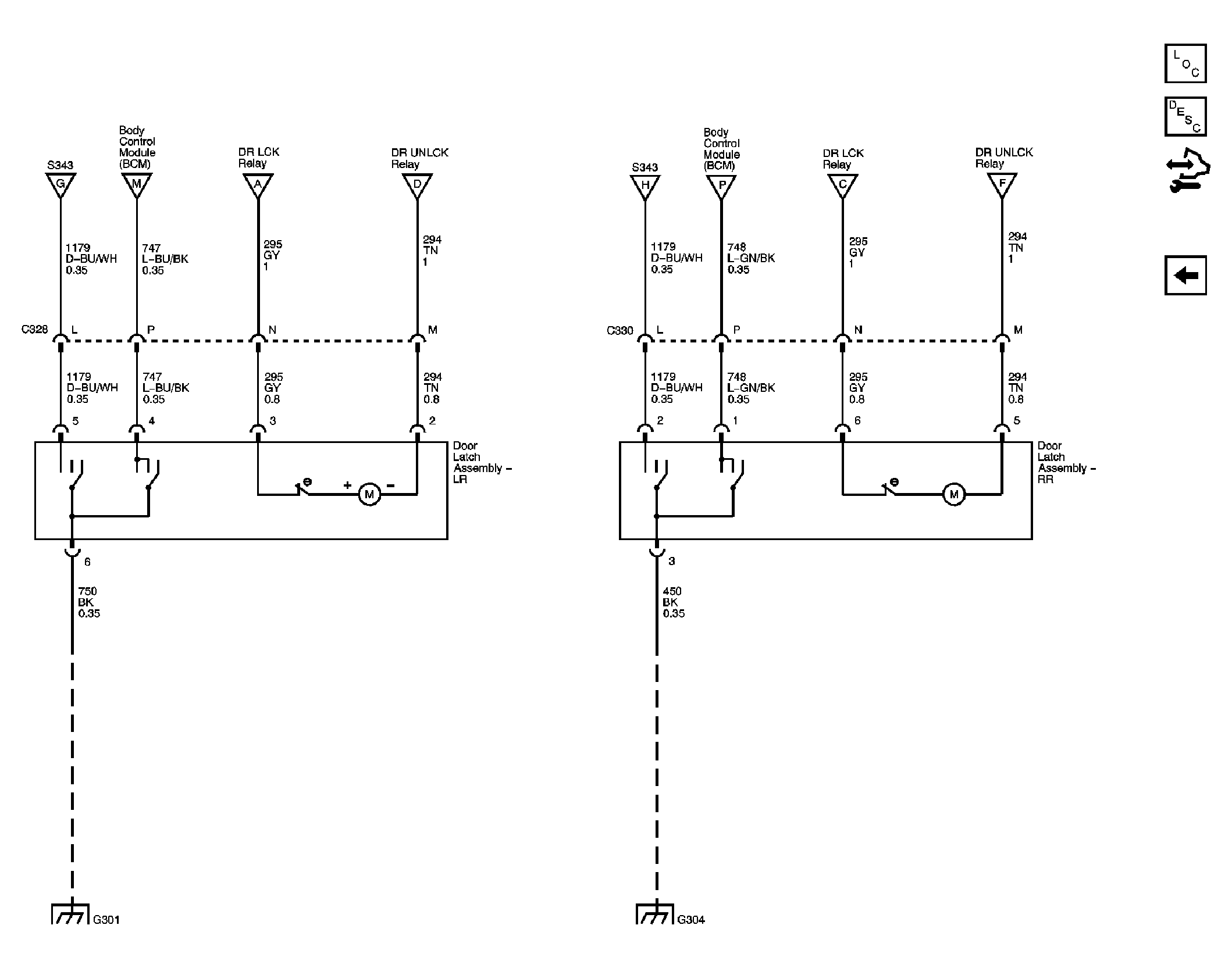

Fig 4: Rear Door Latch Assemblies Schematic

Courtesy of GENERAL MOTORS CORP.
