Rear Side Door Window Switch Replacement

WARNING: This page is about a different car, the 2006 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

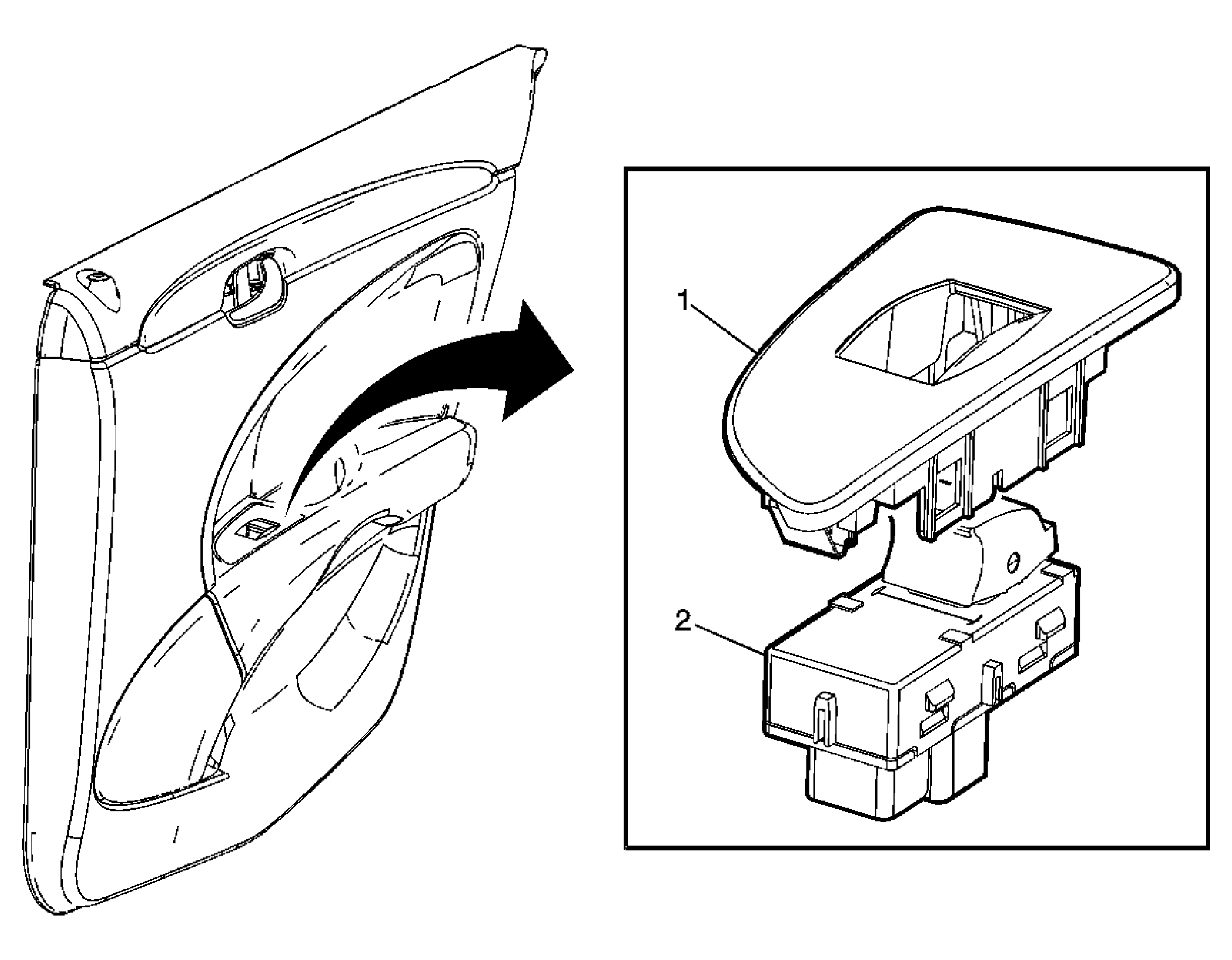

Fig 1: Identifying Rear Side Door Window Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure: Remove the door trim panel. Refer to Rear Side Door Trim Panel Replacement .
1	Rear Side Door Switch Plate
2	Rear Side Door Window Switch Assembly
