Front Side Door Hinge Replacement

WARNING: This page is about a different car, the 2006 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

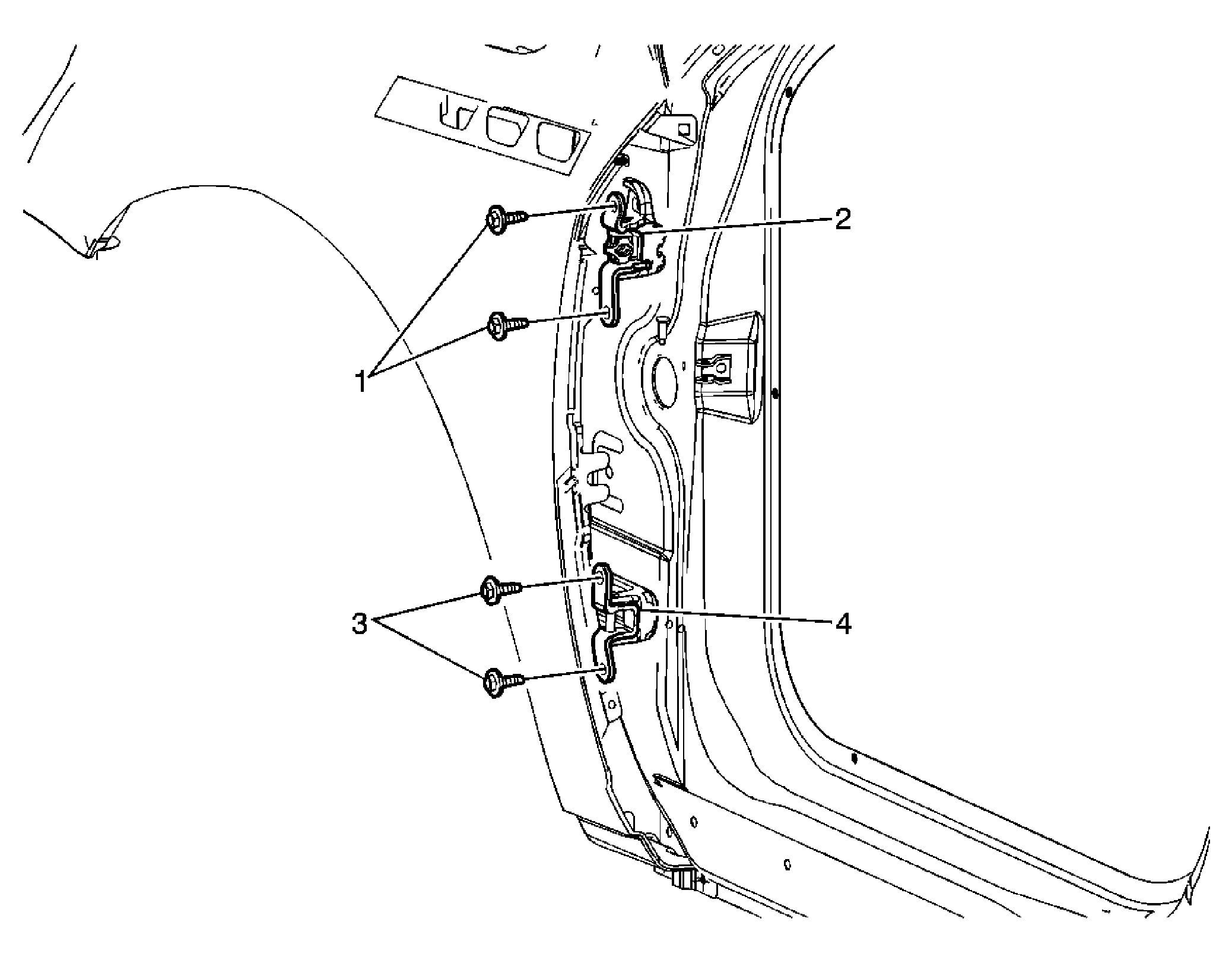

Fig 1: Identifying Front Side Door Hinge Bolts

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the front door. Refer to Front Side Door Replacement .
1	Upper Hinge Bolts (Qty: 2) Tighten: 34 N.m (25 lb ft)
2	Upper Hinge Tip: With a grease pencil mark the position of the hinge.
3	Lower Hinge Bolts (Qty: 2) Tighten: 34 N.m (25 lb ft)
4	Lower Hinge Tip: With a grease pencil mark the position of the hinge.
