Removal Procedure

WARNING: This page is about a different car, the 2006 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

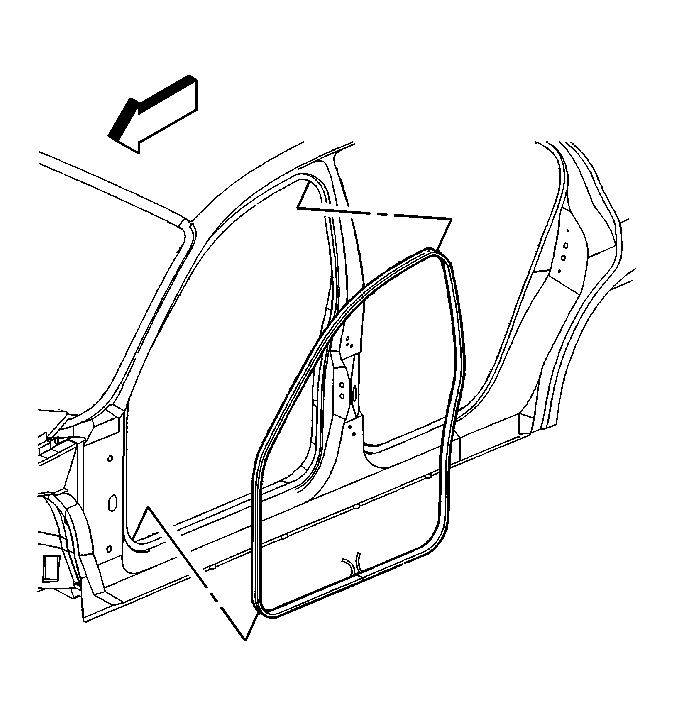

    Fig 1: View of Front Door Weatherstrip
    GM441770Courtesy of GENERAL MOTORS CORP.
  1. Remove the carpet retainer. Refer to Rear Carpet Retainer Replacement .
  2. Start at the rear upper corner of the door opening and pull the weatherstrip away from the door opening flange.
  3. Work around the door opening and remove the weatherstrip.
