Door Lock Cylinder Replacement

WARNING: This page is about a different car, the 2006 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

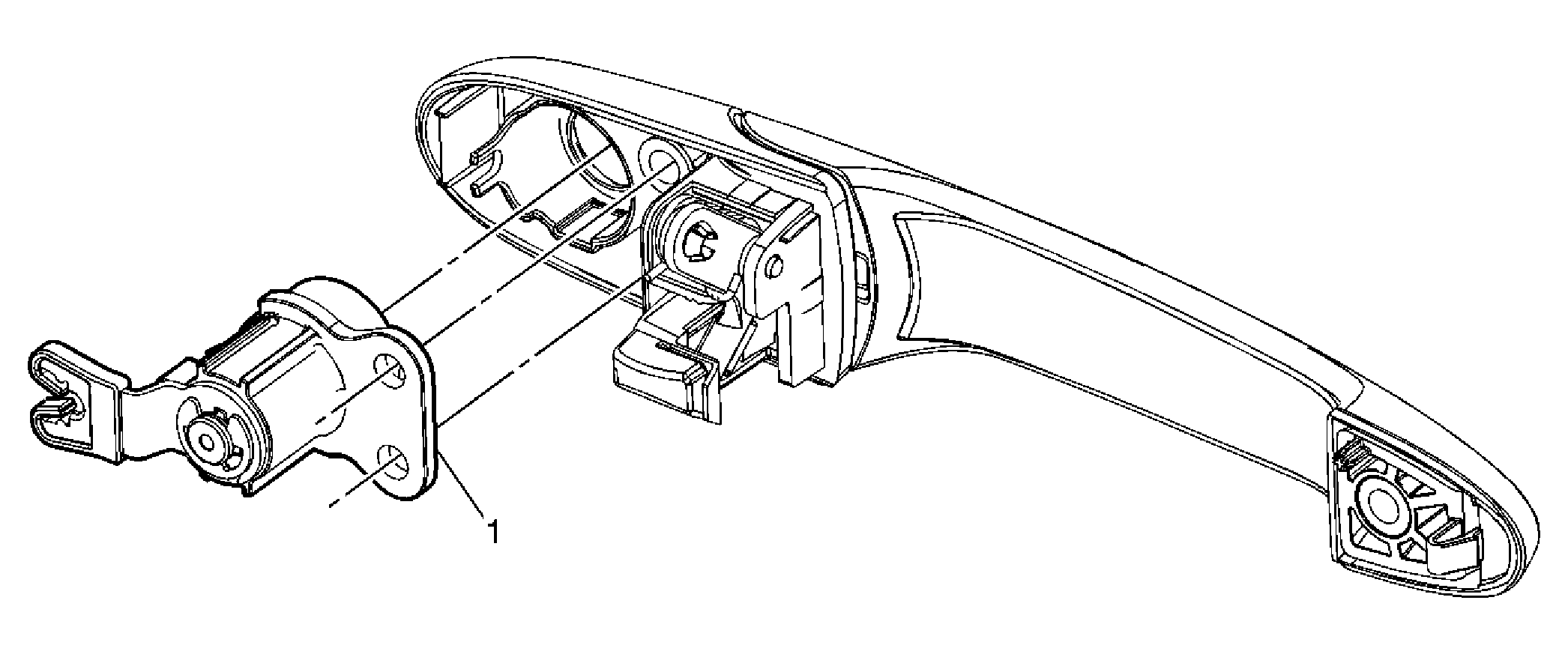

Fig 1: Identifying Door Lock Cylinder

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove front door handle. Refer to Front Side Door Outside Handle Replacement .
1	Front Door Lock Cylinder Tip: Window must be in full up position. Pull lock cylinder out, away from door and then unhook lock rod. Lock cylinder will be separated from handle once the handle is removed from the door.
