Washer Pump Replacement

WARNING: This page is about a different car, the 2006 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

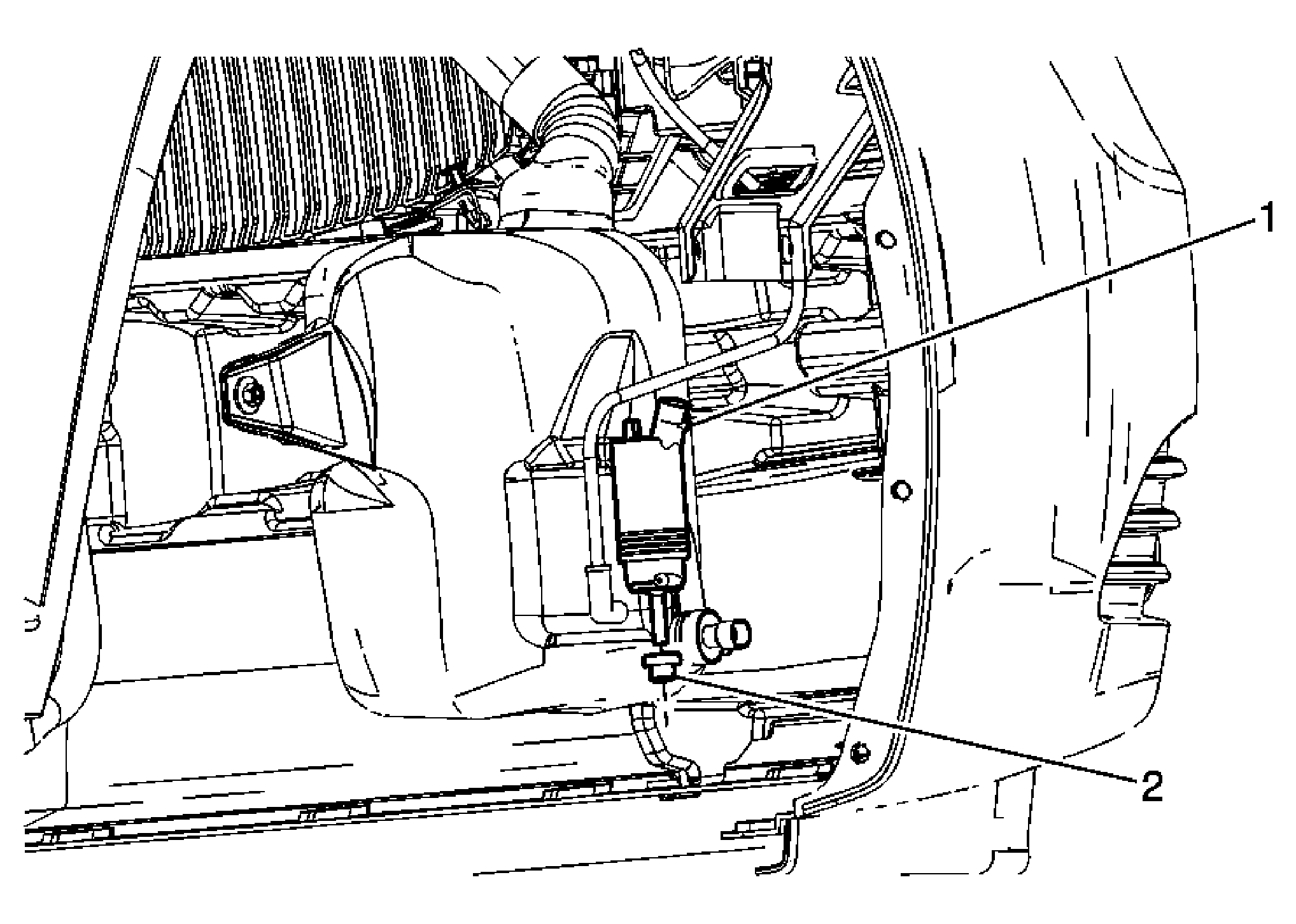

Fig 1: Locating Washer Pump

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the RF tire and wheel assembly. Refer to Tire and Wheel Removal and Installation . Remove the forward portion of the RF wheelhouse liner. Refer to Front Wheelhouse Liner Replacement . Disconnect the windshield washer pump hose from the pump and drain the washer solvent into a suitable clean container.
1	Windshield Washer Pump Tip: Release the top of the washer pump from the windshield washer container. Using two flat-bladed tools under the pump, pry upwards under the pump to release the pump from the washer container.
2	Windshield Washer Pump Grommet Tip: Discard the grommet and replace with a new grommet. Use straight washer fluid to lubricate the new grommet for installation into the washer container.

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the RF tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
Remove the forward portion of the RF wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
Disconnect the windshield washer pump hose from the pump and drain the washer solvent into a suitable clean container.

Windshield Washer Pump
Tip:

Release the top of the washer pump from the windshield washer container.
Using two flat-bladed tools under the pump, pry upwards under the pump to release the pump from the washer container.

Windshield Washer Pump Grommet
Tip: Discard the grommet and replace with a new grommet. Use straight washer fluid to lubricate the new grommet for installation into the washer container.
