Front Bumper Fascia Support Replacement

WARNING: This page is about a different car, the 2006 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

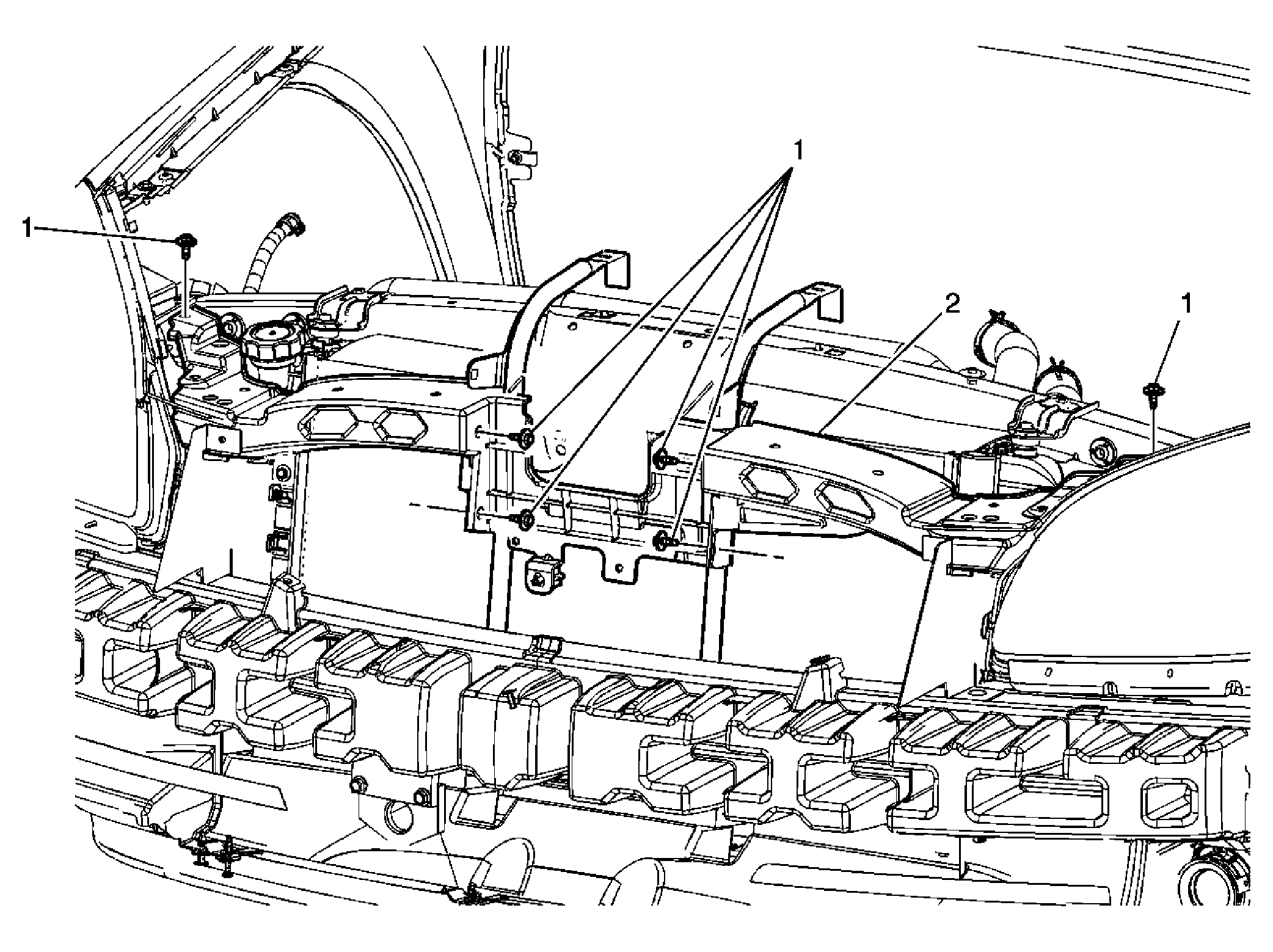

Fig 1: Identifying Front Bumper Fascia Support

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Remove sight shield. Refer to Front Compartment Sight Shields Replacement . Remove front fascia. Refer to Front Bumper Fascia Replacement .
1	Fascia Support Bolts (Qty: 6) Tighten: 10 N.m (89 lb in)
2	Fascia Support

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedure

Remove sight shield. Refer to Front Compartment Sight Shields Replacement .
Remove front fascia. Refer to Front Bumper Fascia Replacement .

Fascia Support Bolts (Qty: 6)

Tighten: 10 N.m (89 lb in)

Fascia Support
