Cruise Control Schematics

WARNING: This page is about a different car, the 2006 Buick LaCrosse and 2006 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

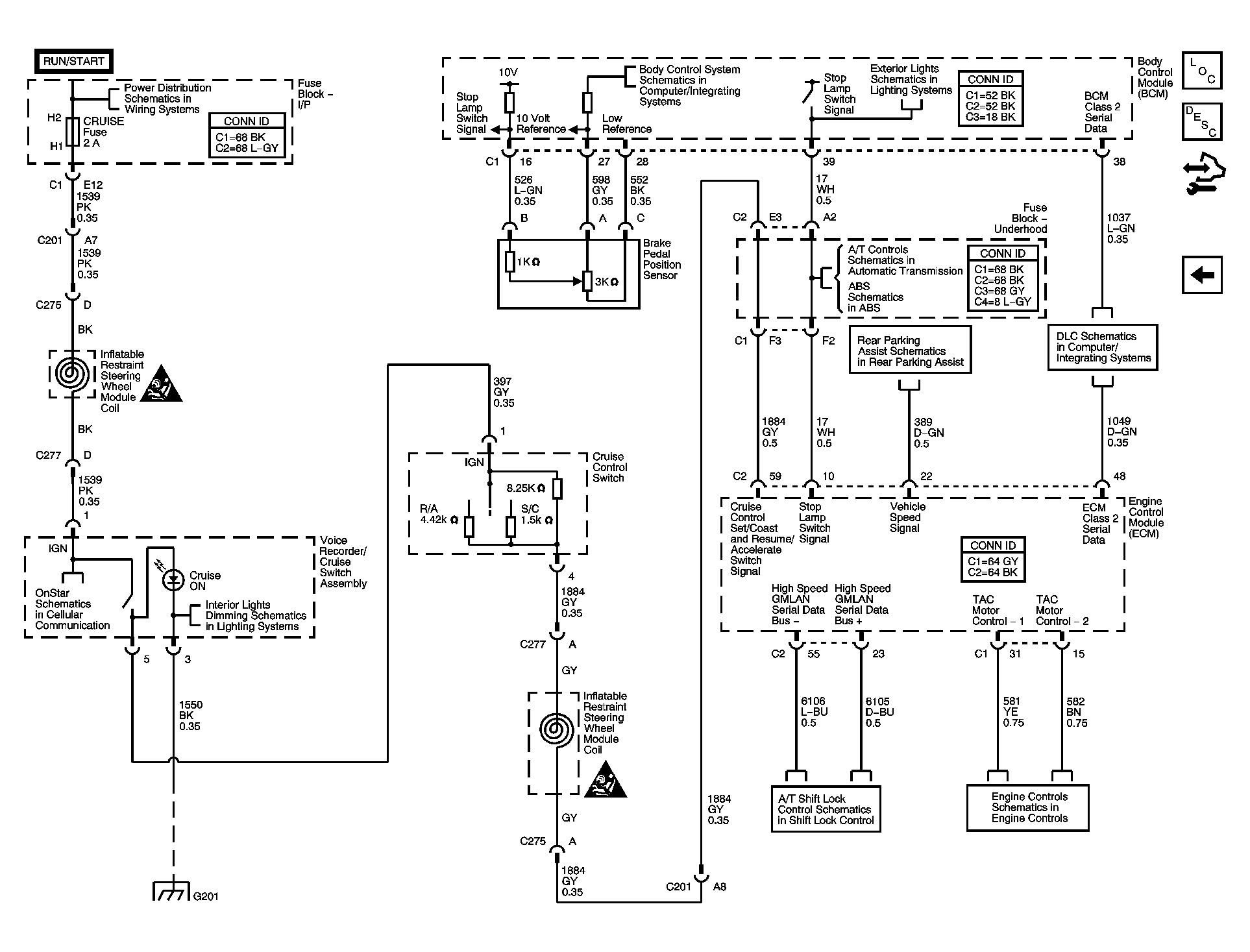

Fig 1: L26 Schematic

Courtesy of GENERAL MOTORS CORP.

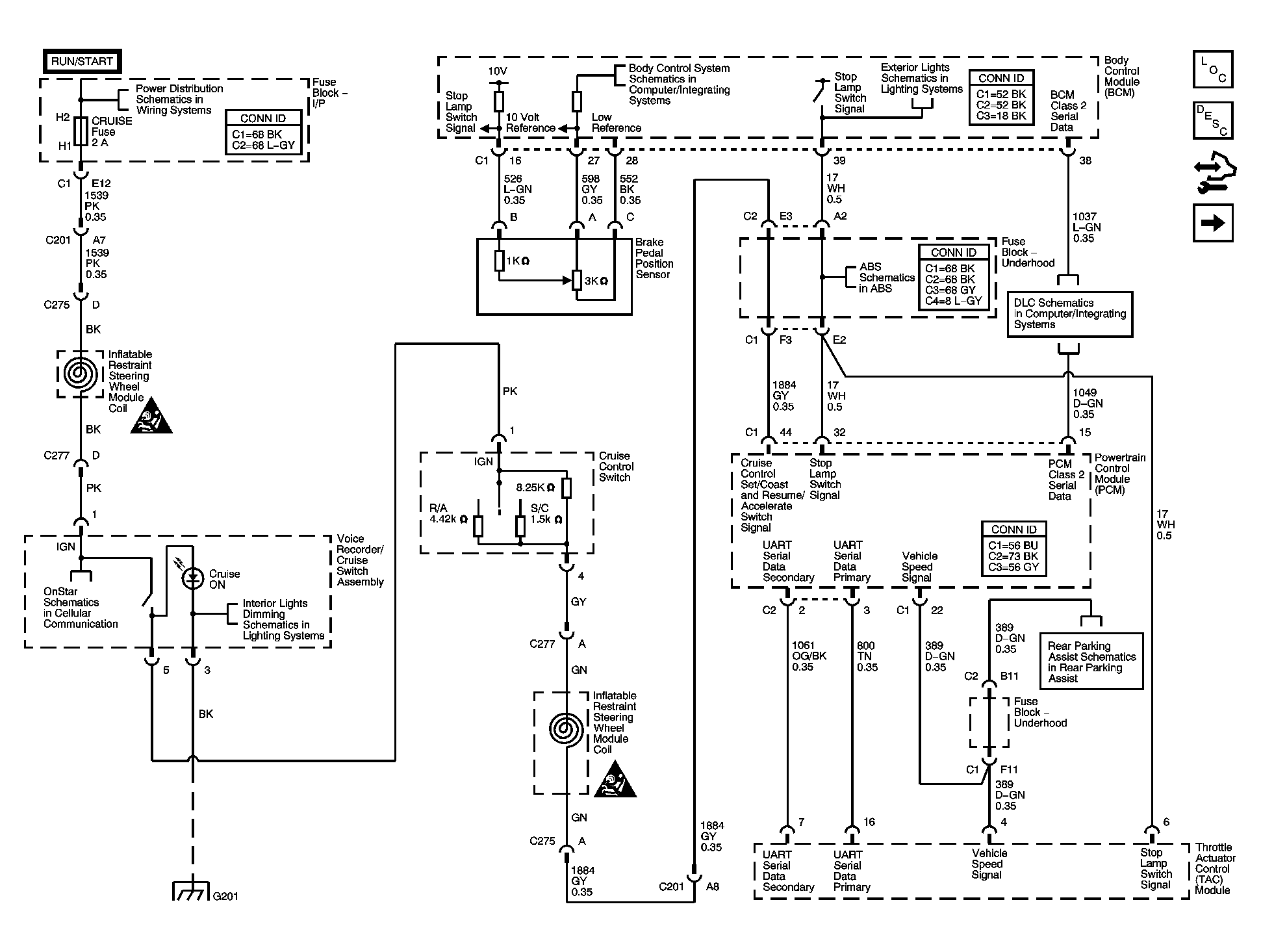

Fig 2: LY7 Schematic

Courtesy of GENERAL MOTORS CORP.
