Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

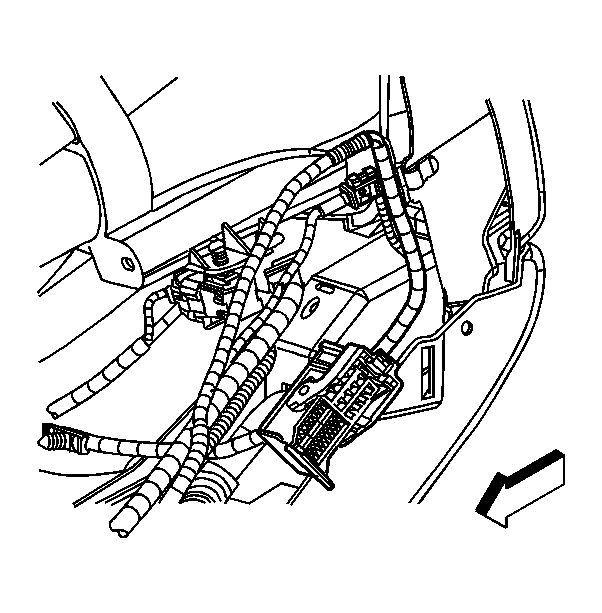

Fig 1: View Of Antenna Cable

Courtesy of GENERAL MOTORS CORP.

Install the antenna cable (1) to the vehicle. Use electrical tape in order to secure the antenna cable to the top of the wiring harness. Secure the cable to the harness at least every 150 mm (6 in).

Fig 2: View Of Antenna Extension Cable

Courtesy of GENERAL MOTORS CORP.

Connect the antenna cable to the antenna extension cable.

Fig 3: View Of Left Instrument Panel Outer Trim Cover

Courtesy of GENERAL MOTORS CORP.

Install the left I/P compartment access hole cover.
Install the carpet. Refer to Carpet Replacement - Front in Interior Trim.
Install the lower center pillar trim panel. Refer to Trim Panel Replacement - Lower Center Pillar in Interior Trim.
Install the left front carpet retainer. Refer to Carpet Retainer Replacement - Front in Interior Trim.
Connect the antenna cable (2) to the radio antenna module

Fig 4: View Of Radio Antenna Module & Antenna Cable

Courtesy of GENERAL MOTORS CORP.

Install the headliner. Refer to Headliner Replacement in Interior Trim.
Install the left rear upper quarter trim panel. Refer to Trim Panel Replacement - Rear Quarter Upper in Interior Trim.
Install the left rear quarter lower panel. Refer to Trim Panel Replacement - Rear Quarter Lower in Interior Trim.
Install the left sail panel. Refer to Sail Panel Replacement in Interior Trim.
Install the rear seat back. Refer to Seat Back Replacement - Rear (Folding) in Seats.
Install the rear seat cushion. Refer to Seat Cushion Replacement - Rear in Seats.
