Instrument Panel Center Compartment Replacement

WARNING: This page is about a different car, the 2012 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

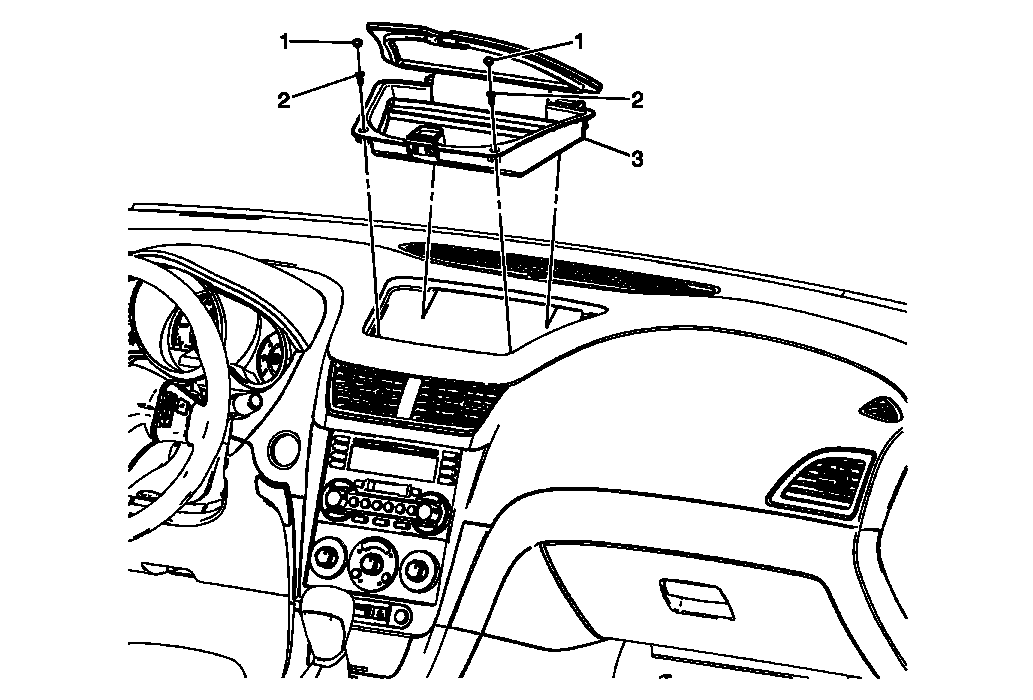

Fig 1: Identifying Instrument Panel Center Compartment
GM1987211Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Center Compartment Replacement

Callout Component Name
1 Instrument Panel Center Compartment Bumpers
2 Instrument Panel Center Compartment Screw (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
3 Instrument Panel Compartment Latch Assembly
Procedure
When replacing the instrument panel center compartment assembly, transfer all necessary components.
