Front Floor Console Bracket Replacement

WARNING: This page is about a different car, the 2012 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

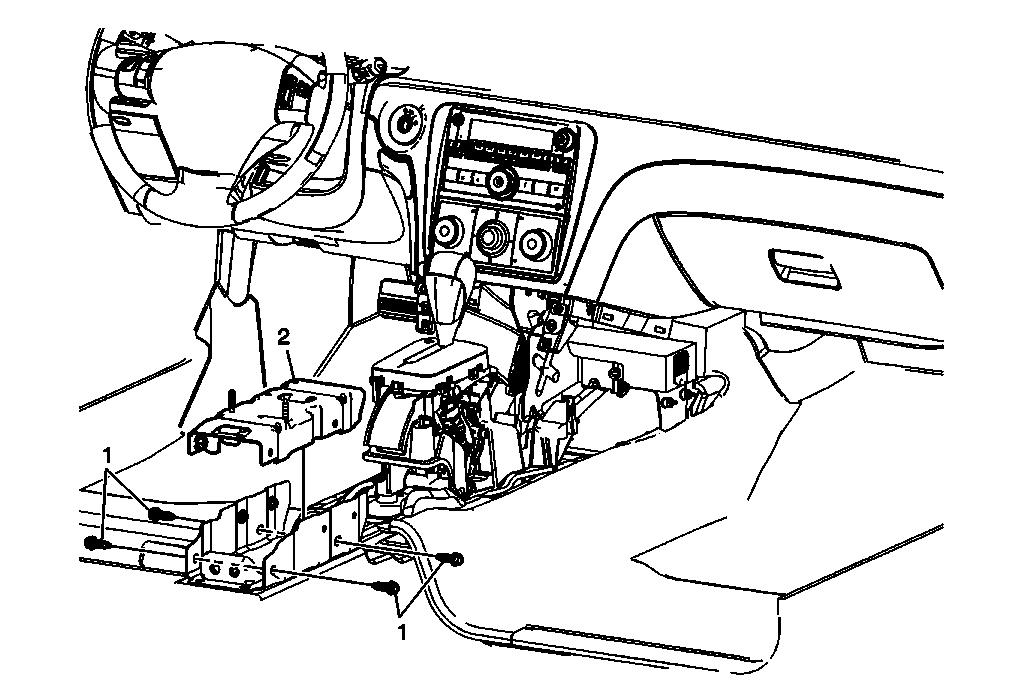

Fig 1: View Of Front Floor Console Bracket Assembly

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front floor console assembly. Refer to Front Floor Console Replacement . Remove the yaw rate sensor/lateral accelerometer. Refer to Vehicle Yaw Sensor with Vehicle Lateral Accelerometer Replacement .
1	Front Floor Console Bracket Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Front Floor Console Bracket Assembly

Callout

Component Name

Preliminary Procedures

Remove the front floor console assembly. Refer to Front Floor Console Replacement .
Remove the yaw rate sensor/lateral accelerometer. Refer to Vehicle Yaw Sensor with Vehicle Lateral Accelerometer Replacement .

Front Floor Console Bracket Bolt (Qty: 4)

CAUTION:

Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

Front Floor Console Bracket Assembly
