Installation Procedure

  1. Position the steering wheel switch to the steering wheel.

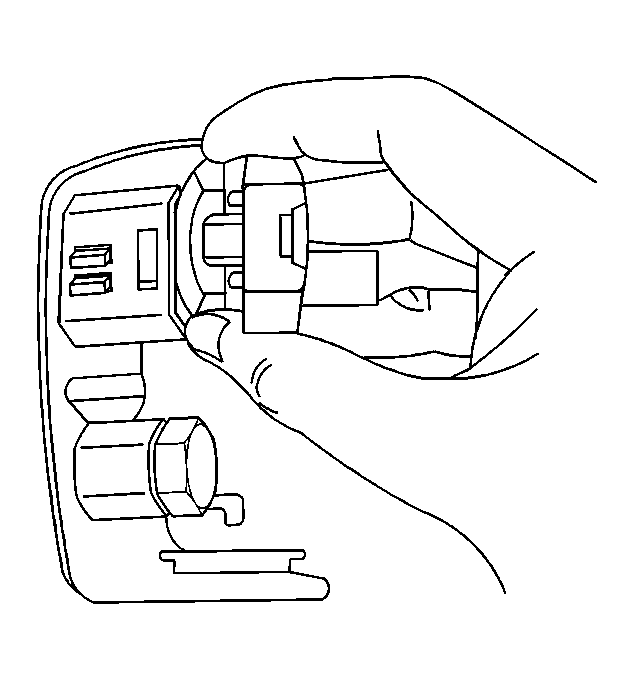

    2. Fig 1: Installing Switch Assembly (Monte Carlo)
    GM601664Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connectors to the back of the switches.

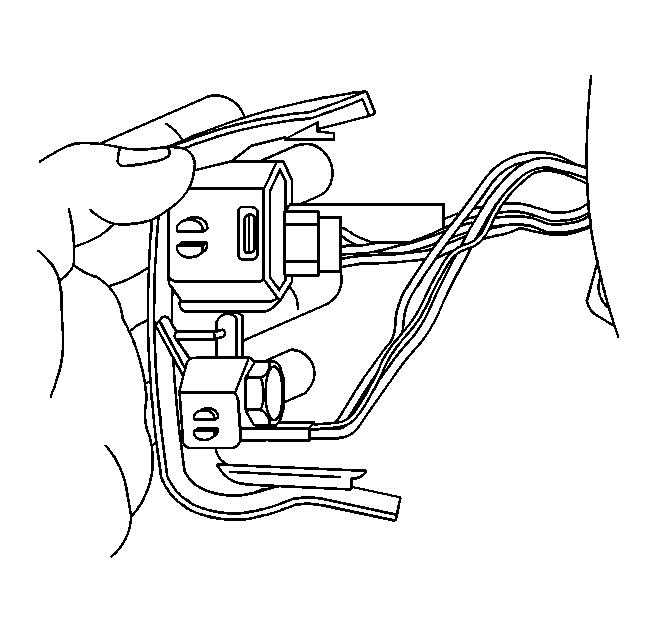

    3. Fig 2: Connecting Electrical Connectors To Switches (Monte Carlo)
    GM601670Courtesy of GENERAL MOTORS CORP.
  3. Install the switch bezel to the retainers in the steering wheel urethane. Position the switch bezel leg over the screw opening in the steering wheel insert.

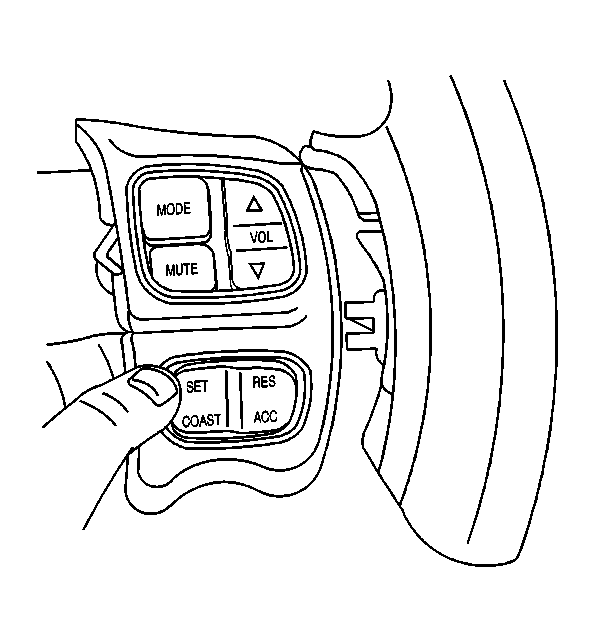

    4. Fig 3: Installing Switch Bezel (Monte Carlo)
    GM601674Courtesy of GENERAL MOTORS CORP.
  4. Route the switch wire harness behind the switch bezel leg and over the top of the aluminum steering wheel side spoke.
    5. IMPORTANT: Do not pinch the wire harness when installing the cruise bezel screw.
  5. Install the switch bezel screw to the to the steering wheel insert.
  6. Install the wire harness to the retainers in the steering wheel insert and back shroud. Verify that the wire is not routed underneath any of the three SIR mounting holes in the steering wheel.

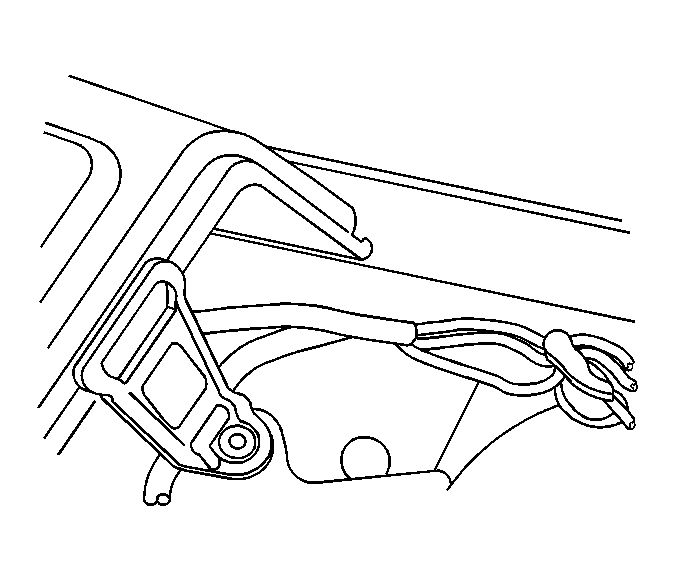

    7. Fig 4: Installing Wire Harness (Monte Carlo)
    GM601681Courtesy of GENERAL MOTORS CORP.
  7. Install the inflatable restraint steering wheel module. Refer to Inflatable Restraint Steering Wheel Module Replacement (Impala) or Inflatable Restraint Steering Wheel Module Replacement (Monte Carlo) in SIR.
  8. Enable the SIR system. Refer to SIR Disabling and Enabling Zone 3 in SIR.
