Front Side Door Window Replacement

WARNING: This page is about a different car, the 2006 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

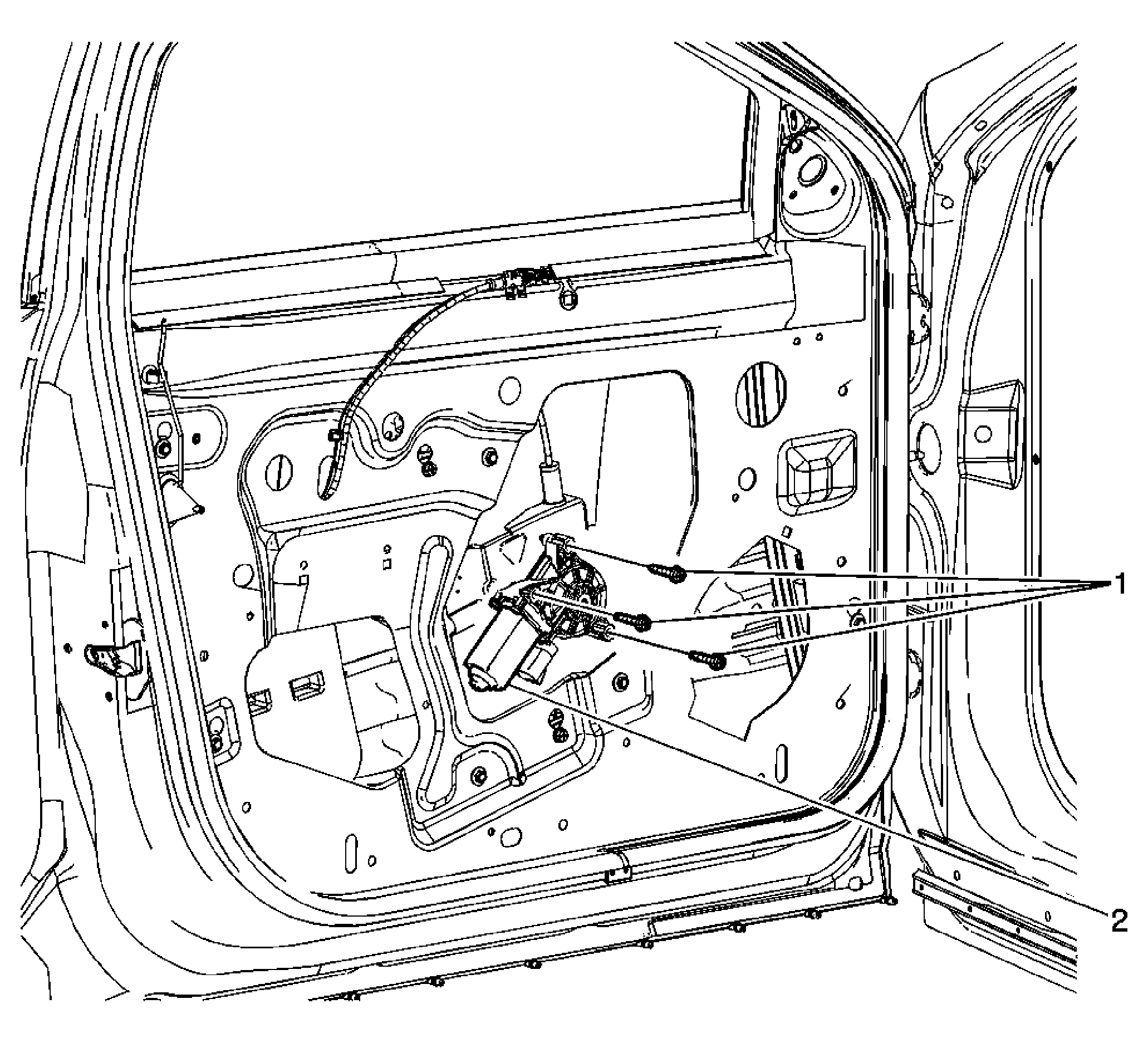

Fig 1: Locating Front Side Door Window Regulator Motor Bolts

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Remove the trim panel. Refer to Front Side Door Trim Panel Replacement . Remove the water deflector. Refer to Rear Side Door Water Deflector Replacement .
1	Front Door Window Motor Bolts (Qty: 3) Tighten: 4.6 N.m (41 lb in)
2	Front Door Window Motor Tip: Disconnect the electrical connector.

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedure

Remove the trim panel. Refer to Front Side Door Trim Panel Replacement .
Remove the water deflector. Refer to Rear Side Door Water Deflector Replacement .

Front Door Window Motor Bolts (Qty: 3)

Tighten: 4.6 N.m (41 lb in)

Front Door Window Motor
Tip: Disconnect the electrical connector.
