Front Door Frame Applique Replacement

WARNING: This page is about a different car, the 2006 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

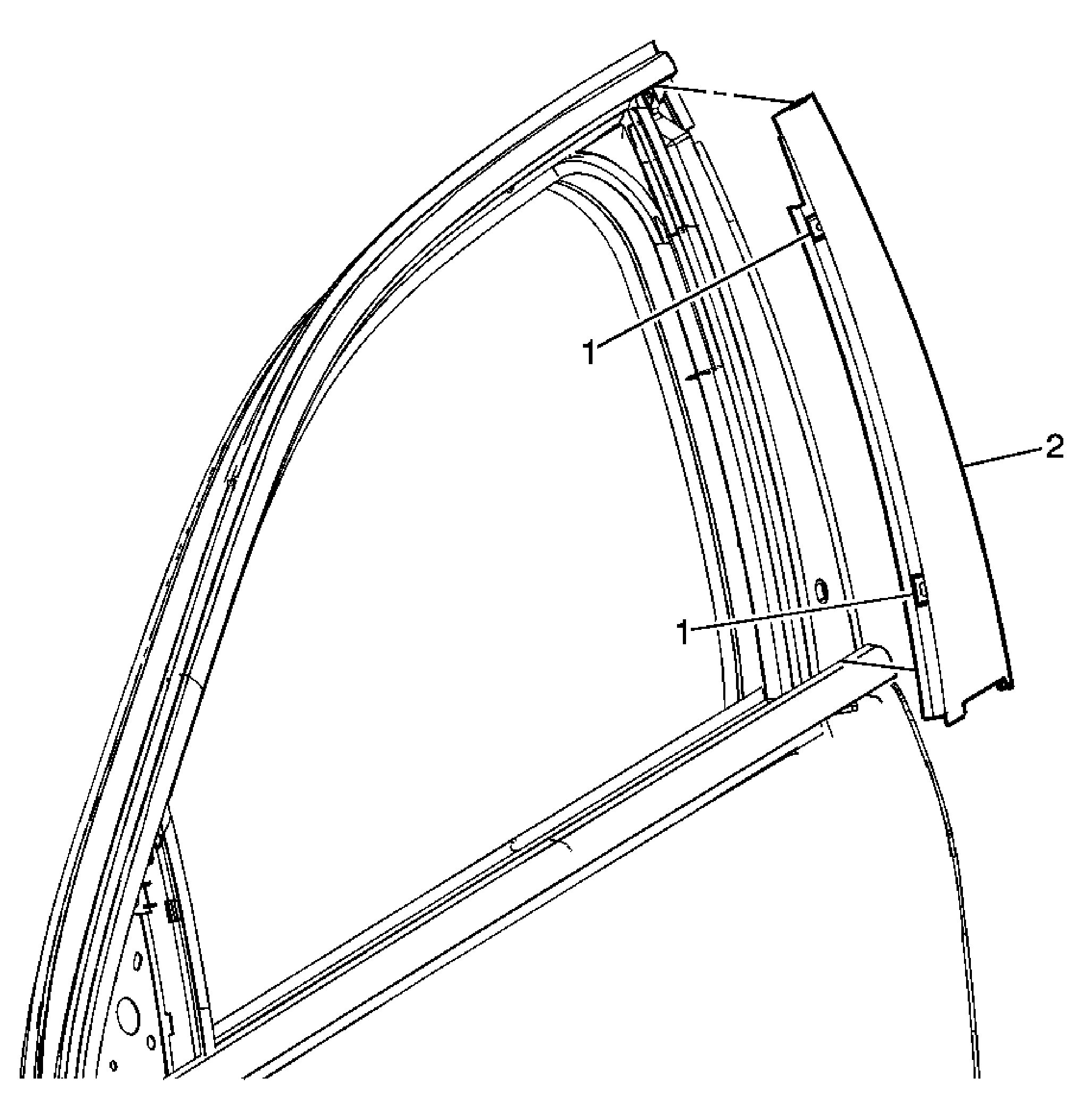

Fig 1: Identifying Front Door Frame Applique

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedure: Position the window to the full down position.
1	Front Door Frame Applique Rivets (Qty: 2) Tip: Disconnect upper run channel from applique to gain access to screws.
2	Front Door Frame Applique
