Door Check Link Replacement
WARNING: This page is about a different car, the 2006 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.
Door Check Link Replacement

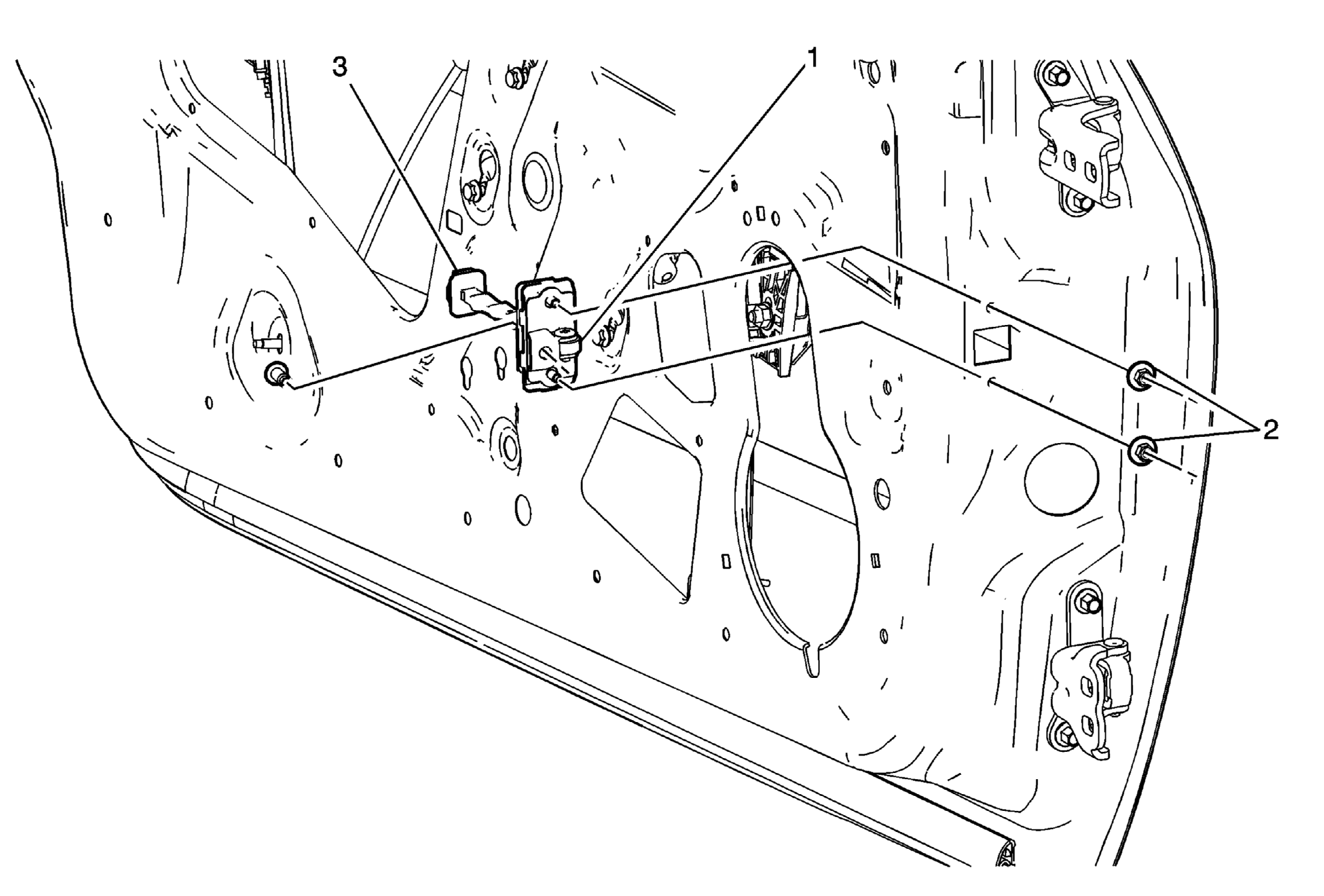

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the front door trim panel. Refer to Front Side Door Trim Panel Replacement . |
|
| 1 | Front Door Check Link Pin |
| 2 | Front Door Lock Check Link Nuts (Qty: 2)
NOTE:
Refer to Fastener Notice
.
Tighten: 10 N.m (89 lb in) |
| 3 | Front Door Check Link |
