Windshield Washer Nozzle Replacement

WARNING: This page is about a different car, the 2012 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

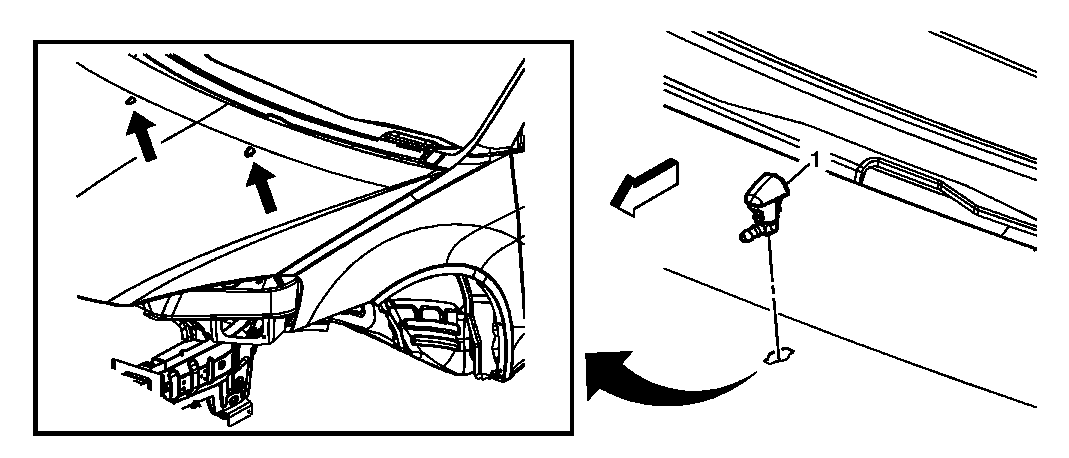

Fig 1: Washer Nozzle Replacement - Front

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the hood insulator. Refer to Hood Insulator Replacement . Disconnect the washer hose from the washer nozzles.
1	Windshield Washer Nozzle Assembly TIP: Pinch the washer nozzle from the bottom side in order to release the nozzle and push the nozzle outboard from the hood to remove.

Callout

Component Name

Preliminary Procedures

Remove the hood insulator. Refer to Hood Insulator Replacement .
Disconnect the washer hose from the washer nozzles.

Windshield Washer Nozzle Assembly
TIP: Pinch the washer nozzle from the bottom side in order to release the nozzle and push the nozzle outboard from the hood to remove.
