Installation Procedure

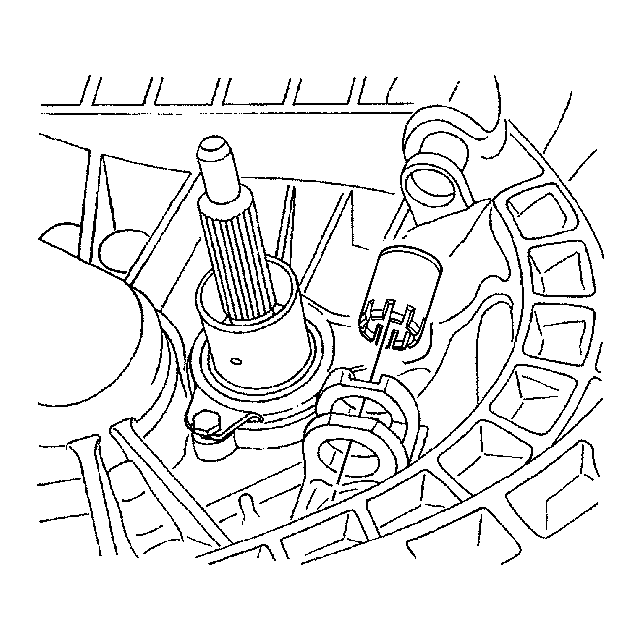

- Install the release lever shaft bushings. Coat the bushing bores with multi-purpose glass.
- Install the O-ring into the groove in the case.
- Install the input shaft seal into the release bearing guide sleeve. Use the J 36547 (1) with a hammer. See Special Tools .
- Install the release bearing guide sleeve and the bolts.
Tighten: Tighten the release bearing guide sleeve bolts to 5 N.m (44 lb in) .
- Coat the sleeve surface with multi-purpose grease.
- Coat the release bearing bore with multi-purpose grease.

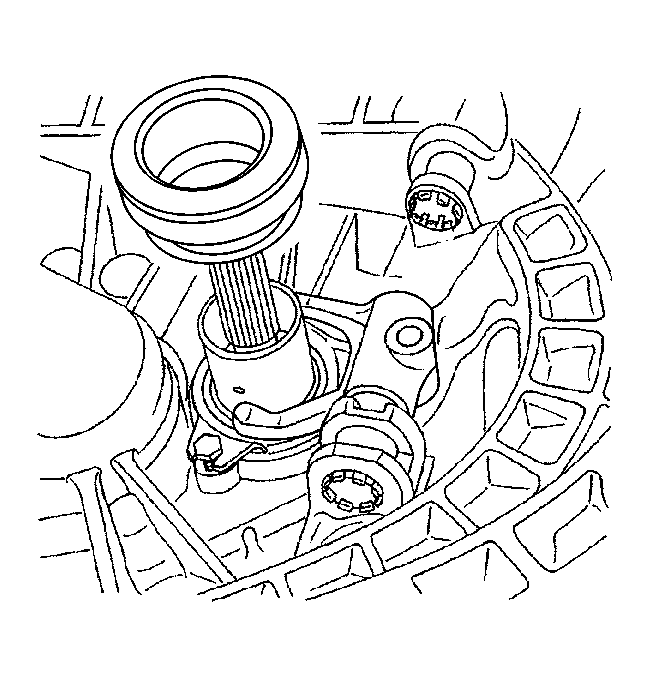

- Install the release bearing, with the clutch fork, onto the release bearing guide sleeve.

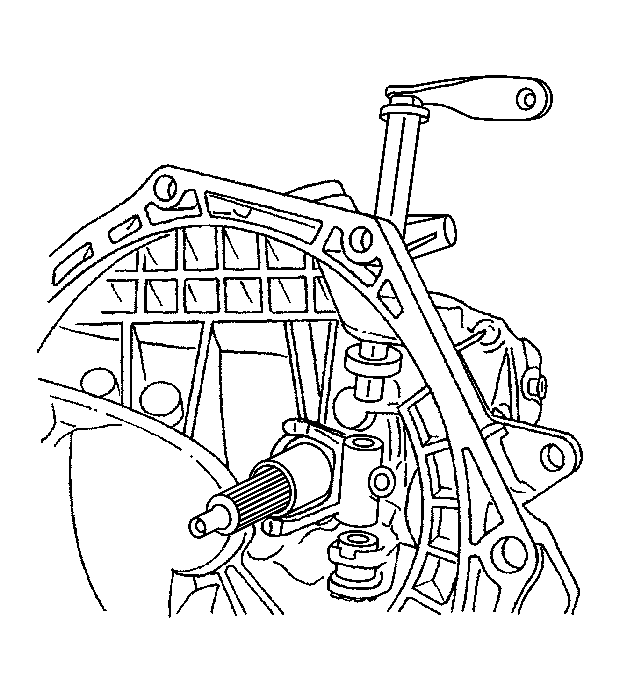

- Install the release lever shaft from the top of the transaxle. Guide the shaft through the clutch fork.

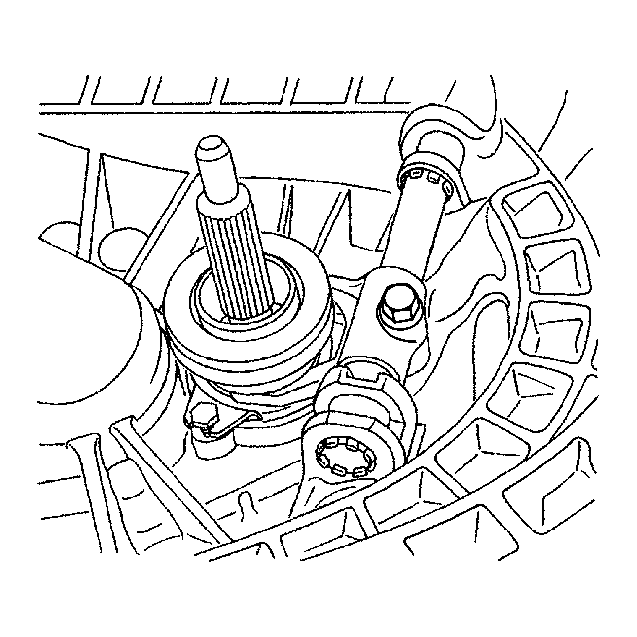

- Align the shaft to the fork and install the bolt.
Tighten: Tighten the clutch fork-to-release lever shaft bolt to 35 N.m (26 lb ft) .
- Coat the spline on the clutch disc with multi-purpose grease.

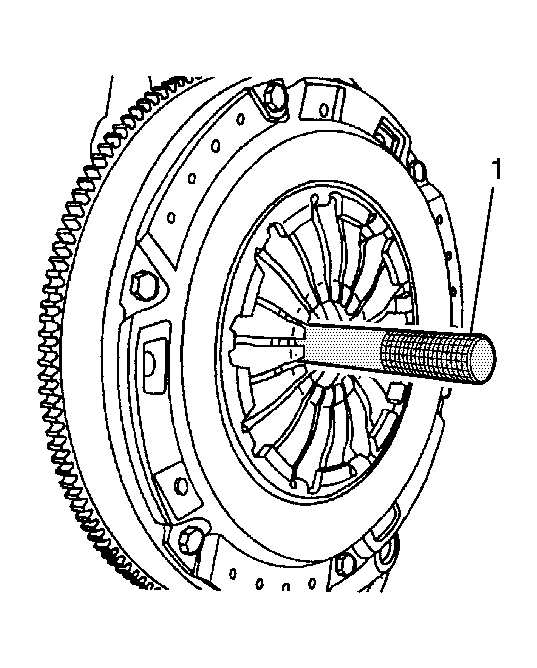

- Align the pressure plate and the clutch disc onto the flywheel using the J 42474 (1). See Special Tools .
- Install the pressure plate bolts.
Tighten: Tighten the pressure plate-to-flywheel bolts to 15 N.m (11 lb ft) .
- Remove the J 42474 (1). See Special Tools .
- Install the transaxle into the vehicle. Refer to Transmission Replacement in Manual Transaxle.
- Install the engine under covers. Refer to Engine Cover Replacement in Frame and Underbody.
- Install the left front wheel. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
- Lower the vehicle.
- Connect the negative battery cable.
NOTE:
Refer to Fastener Notice
in Cautions and Notices.
