Automatic Transmission Shift Lock Control Schematics

Fig 1: Automatic Transmission Shift Lock Control Schematic - 2.0L
GM1376475Courtesy of GENERAL MOTORS CORP.

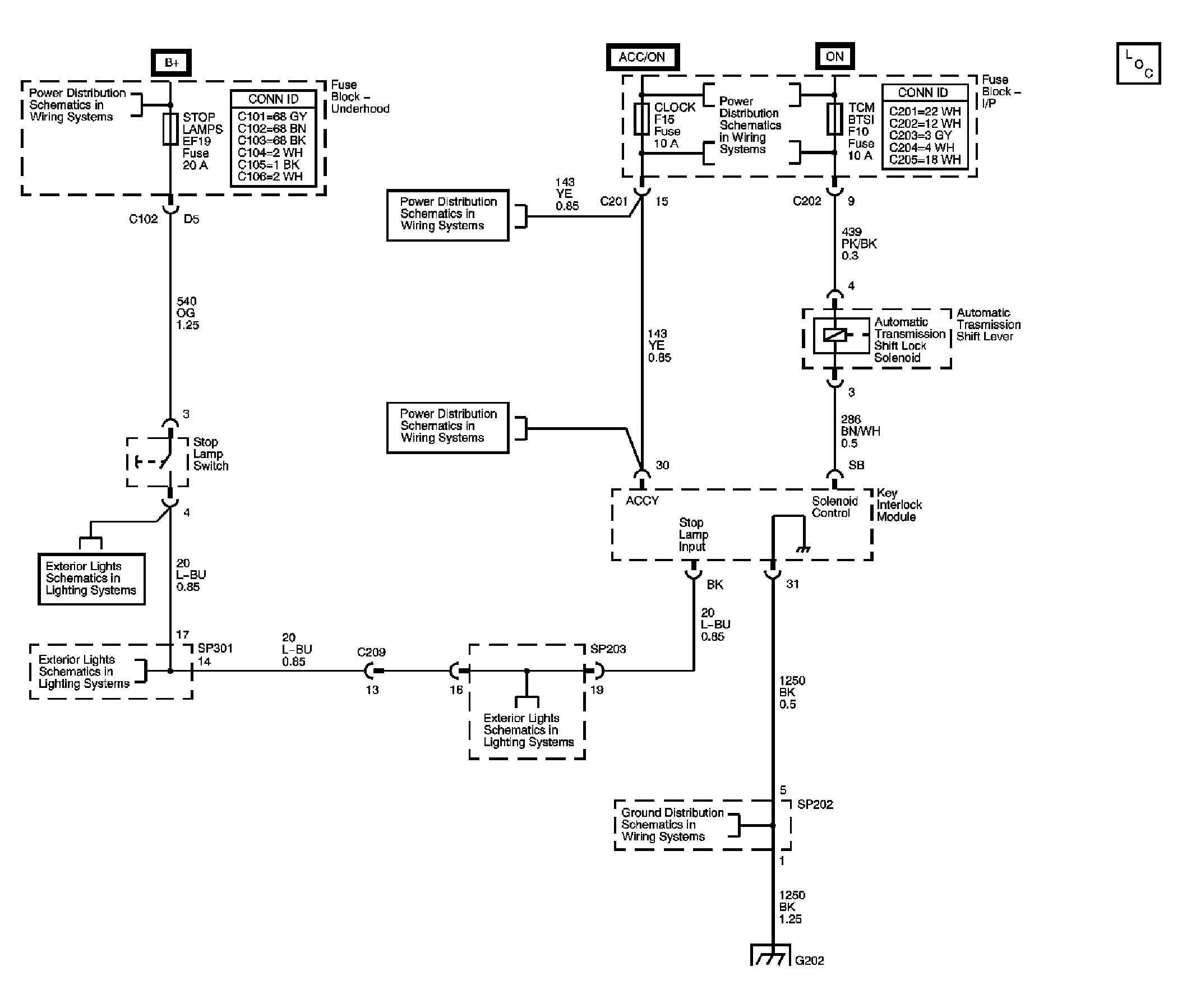

Fig 2: Automatic Transmission Shift Lock Control Schematic - 2.5L
GM1376477Courtesy of GENERAL MOTORS CORP.
